8.4.1 ADC Operation and Averaging Module

After the falling edge of the ADC reset signal, the ADC conversion phase starts (refer to Figure 8-14). Each ADC conversion takes 50 µs.

The ADC operates with averaging. The averaging module averages multiple ADC samples and reduces noise to improve dynamic range. Figure 8-27 shows a diagram of the averaging module. The ADC output is a 22-bit code that is obtained by discarding the two MSBs of the 24-bit registers (for example the register with address 2Ah), as shown in Table 8-3.

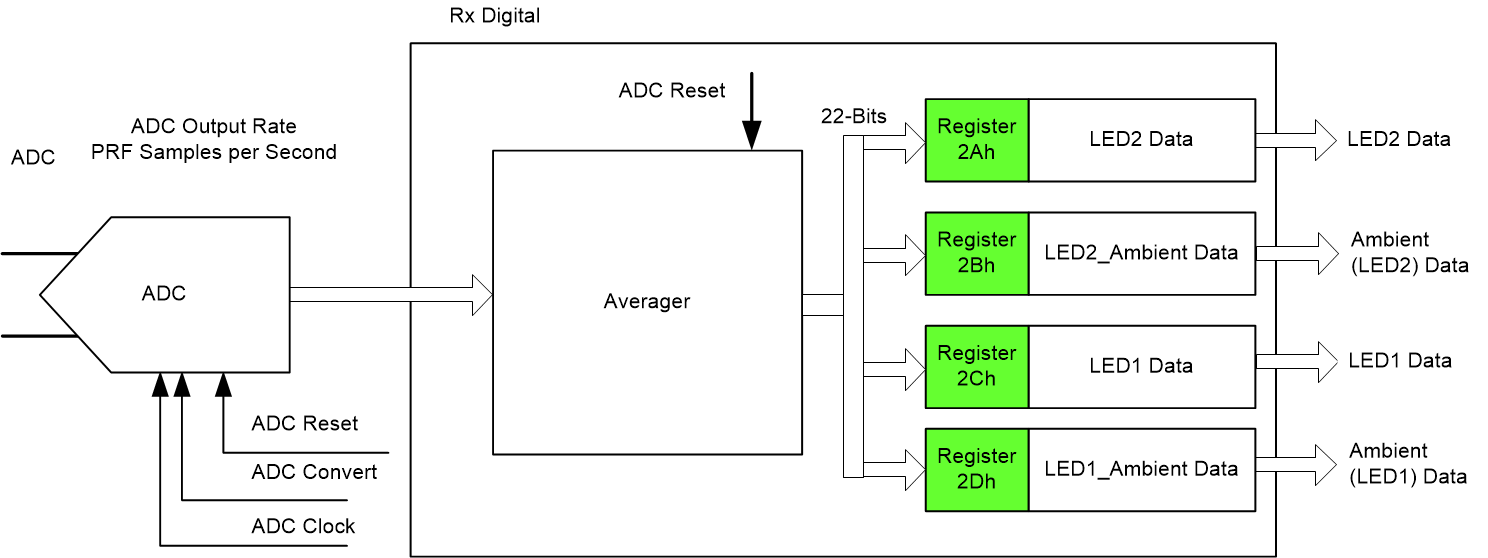

GUID-20210106-CA0I-8D2X-CTGP-83N9PLDKCNC5-low.gif Figure 8-27 Averaging Module
Table 8-3 22-Bit Word
232221201918171615141312
Ignore22-Bit ADC Code, MSB to LSB
11109876543210
22-Bit ADC Code, MSB to
