9.11 Module Markings

Figure 9-2 and Figure 9-3 show the markings for the SimpleLink™ CC3220MODx modules.(1)

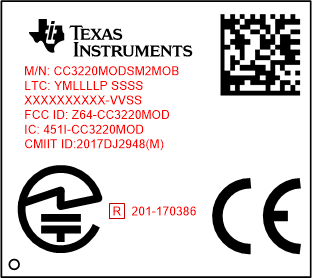

GUID-59126243-90D4-416C-937C-B6953F9660A6-low.gifFigure 9-2 CC3220MODS Module Marking
GUID-93A17C62-5BD0-45F9-997C-4021701E8BC7-low.gifFigure 9-3 CC3220MODSF Module Marking





Figure 9-4 and Figure 9-5 show the markings for the SimpleLink™ CC3220MODAx modules.



GUID-0B5AB2A5-80BE-439F-95D9-2DAA8963354F-low.gifFigure 9-4 CC3220MODAS Module Marking

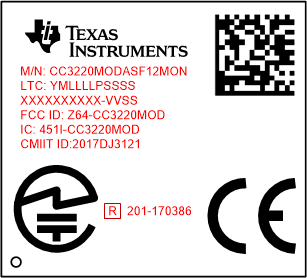

GUID-13AC2C1F-D7D3-4001-AE7D-8616662DB760-low.gifFigure 9-5 CC3220MODASF Module Marking

Table 9-7 lists the CC3220MODx and CC3220MODAx module markings.

Table 9-7 Module Descriptions
MARKING DESCRIPTION
CC3220MODSM2MOB Model
CC3220MODSF12MOB
CC3220MODASM2MON
CC3220MODASF12MON
YMLLLLP SSSS LTC (lot trace code):
  • Y = Year
  • M = Month
  • LLLL = Assembly lot code
  • P = Reserved for internal use
  • SSSS = Serial number
XXXXXXXXXX-VVSS TI internal use only
Z64-CC3220MOD FCC ID: single modular FCC grant ID
451I-CC3220MOD IC: single modular IC grant ID
2017DJ2946(M) CMIIT: limited modular SRRC grant ID
2017DJ2944(M) CMIIT: limited modular SRRC grant ID
2017DJ3095 CMIIT: full modular SRRC grant ID
2017DJ3121 CMIIT: full modular SRRC grant ID
GUID-FD0CAC28-2496-4B5E-9719-820EA8039A91-low.gif MIC compliance mark
GUID-5C5A647E-B6B7-4D60-851E-9C265DAE3248-low.gif MIC ID: modular MIC grant ID
CE CE compliance mark



1. Drawings are representative. Content or placement may vary from what is illustrated.
