Power-Up Sequencing

For proper start-up of the CC3220MODx and CC3220MODAx modules, perform the recommended power-up sequencing as follows:

  1. Tie VBAT1 (pin 37) and VBAT2 (pin 40) together on the board.
  2. Hold the nRESET pin low while the supplies are ramping up.

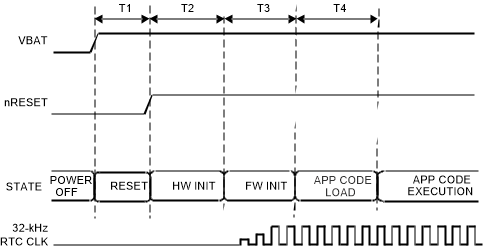

Figure 8-6 shows the reset timing diagram for the first-time power-up and reset removal.

GUID-860C97AD-6CD9-4A67-B811-9DBB8C5135D5-low.gifFigure 8-6 First-Time Power-Up and Reset Removal Timing Diagram

Table 8-2 lists the timing requirements for the first-time power-up and reset removal.

Table 8-2 First-Time Power-Up and Reset Removal Timing Requirements
ITEMNAMEDESCRIPTIONMINTYPMAXUNIT
T1Supply settling timeDepends on application board power supply, decoupling capacitor, and so on3ms
T2Hardware wake-up time25ms
T3Initialization timeInternal 32-kHz crystal settling plus firmware initialization time plus radio calibration1.35s
T4App code load time for CC3220MODS and CC3220MODASCC3220MODS and CC3220MODASImage size (KB) × 1.7 ms
App code load time for CC3220MODSF and CC3220MODASFCC3220MODSF and CC3220MODASFImage size (KB) × 0.06 ms
