7.16.3.3 nRESET (External 32-kHz Clock)

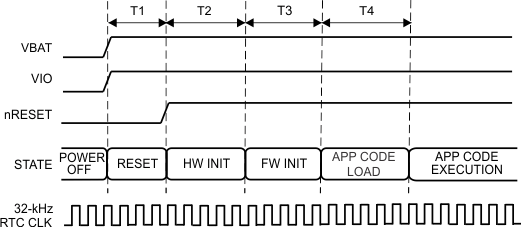

Figure 7-7 shows the reset timing diagram for the external 32-kHz clock first-time power-up and reset removal.

CC3230S CC3230SF First-Time Power-Up and Reset Removal Timing Diagram (External 32-kHz Clock)Figure 7-7 First-Time Power-Up and Reset Removal Timing Diagram (External 32-kHz Clock)



Section 7.16.3.3.1 describes the timing requirements for the external 32-kHz clock first-time power-up and reset removal.
