10.1.3 Typical Application

Figure 10-5 shows the schematic of the engine area for the CC3230x device in the wide-voltage mode of operation, and the optional RF implementations with BLE/2.4GHz coexistence. The corresponding Bill-of-Materials show in Table 10-1. For a full operation reference design, see the CC3235x SimpleLink™ and Internet of Things Hardware Design Files.

Note:

The Following guidelines are recommended for implementation of the RF design:

  • Ensure an RF path is designed with an impedance of 50 Ω
  • Tuning of the antenna impedance π matching network is recommended after manufacturing of the PCB to account for PCB parasitics
  • π or L matching and tuning may be required between cascaded passive components on the RF path

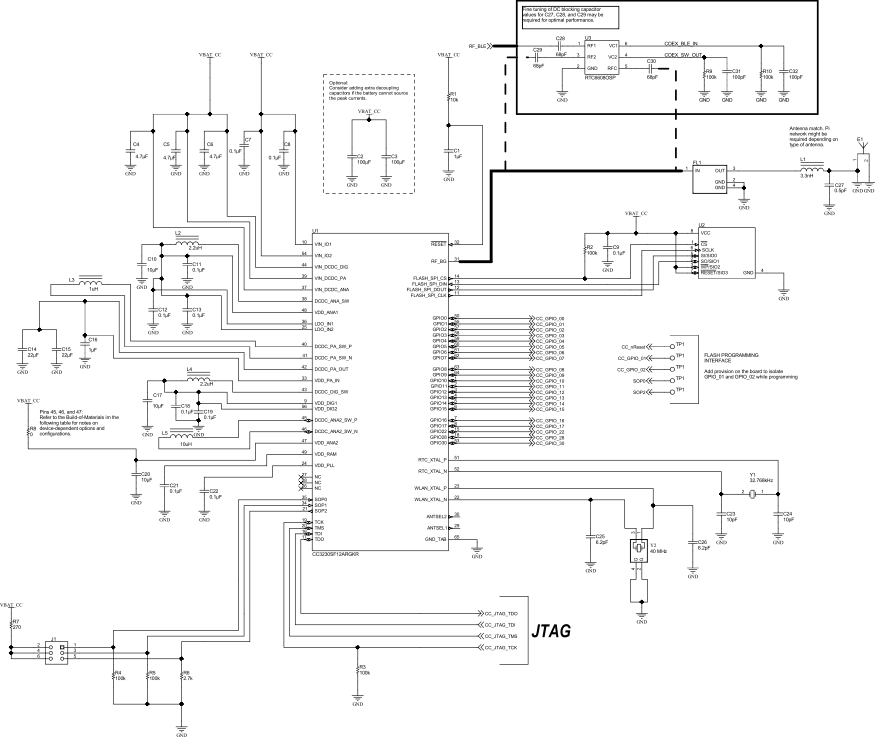

GUID-1C5E7D2E-B556-42A0-BCEC-A891BC74E8DB-low.gif Figure 10-5 CC3230x Engine Area and Optional BLE Coexistence
Table 10-1 Bill-of-Materials for CC3230x Engine Area and Optional Coexistence
QUANTITY DESIGNATOR VALUE MANUFACTURER PART NUMBER DESCRIPTION
1 C1 1 µF MuRata GRM155R61A105KE15D Capacitor, Ceramic, 1 µF,
10 V, ±10%, X5R, 0402
2 C2, C3 100 µF Taiyo Yuden LMK325ABJ107MMHT Capacitor, Ceramic, 100 µF,
10 V, ±20%, X5R, 1210
3 C4, C5, C6 4.7 µF TDK C1005X5R0J475M050BC Capacitor, Ceramic, 4.7 µF,
6.3 V, ±20%, X5R, 0402
10 C7, C8, C9, C11, C12, C13, C18, C19, C21, C22 0.1 µF TDK C1005X5R1A104K050BA Capacitor, Ceramic, 0.1 µF,
10 V, ±10%, X5R, 0402
3 C10, C17, C20 10 µF MuRata GRM188R60J106ME47D Capacitor, Ceramic, 10 µF,
6.3 V, ±20%, X5R, 0603
2 C14, C15 22 µF TDK C1608X5R0G226M080AA Capacitor, Ceramic, 22 µF,
4 V, ±20%, X5R, 0603
1 C16 1 µF TDK C1005X5R1A105K050BB Capacitor, Ceramic, 1 µF,
10 V, ±10%, X5R, 0402
2 C23, C24 10 pF MuRata GRM1555C1H100JA01D Capacitor, Ceramic, 10 pF,
50 V, ±5%, C0G/NP0, 0402
2 C25, C26 6.2 pF MuRata GRM1555C1H6R2CA01D Capacitor, Ceramic, 6.2 pF,
50 V, ±5%, C0G/NP0, 0402
1 C27 0.5 pF MuRata GRM1555C1HR50BA01D Capacitor, Ceramic, 0.5 pF,
50 V, ±20%, C0G/NP0, 0402
3 C28(3), C29(3), C30(3) 68 pF MuRata GRM0335C1H680JA1D CAP, CERM, 68 pF, 50 V,
+/- 5%, C0G/NP0, 0201
2 C31(3), C32(3) 100 pF Yageo CC0201JRNPO8BN101 CAP, CERM, 100 pF, 25 V,
+/- 5%, C0G/NP0, 0201
1 E1 2.45-GHz Antenna Taiyo Yuden AH316M245001-T ANT Bluetooth W-LAN
Zigbee®, SMD
1 FL1 1.02 dB TDK DEA202450BT-1294C1-H Multilayer Chip Band Pass Filter
For 2.4 GHz W-LAN/Bluetooth, SMD
1 L1 3.3 nH MuRata LQG15HS3N3S02D Inductor, Multilayer, Air Core,
3.3 nH, 0.3 A, 0.17 ohm, SMD
2 L2, L4 2.2 µH MuRata LQM2HPN2R2MG0L Inductor, Multilayer, Ferrite,
2.2 µH, 1.3 A, 0.08 ohm, SMD
1 L3 1 µH MuRata LQM2HPN1R0MG0L Inductor, Multilayer, Ferrite,
1 µH, 1.6 A, 0.055 ohm, SMD
1 L5(1) 10 µH Taiyo Yuden CBC2518T100M Inductor, Wirewound, Ceramic,
10 µH, 0.48 A, 0.36 ohm, SMD
1 R1 10 k Vishay-Dale CRCW040210K0JNED Resistor, 10 k, 5%, 0.063 W, 0402
6 R2, R3, R4, R5, R9(3), R10(3) 100 k Vishay-Dale CRCW0402100KJNED Resistor, 100 k, 5%, 0.063 W, 0402
1 R6 2.7 k Vishay-Dale CRCW04022K70JNED Resistor, 2.7 k, 5%, 0.063 W, 0402
1 R7 270 Vishay-Dale CRCW0402270RJNED Resistor, 270, 5%, 0.063 W, 0402
1 R8(2) 0 Panasonic ERJ-2GE0R00X Resistor, 0, 5% 0.063W, 0402
1 U1 MX25R Macronix International Co., LTD MX25R3235FM1IL0 Ultra-Low Power, 32-Mbit [x 1/x 2/x 4]
CMOS MXSMIO (Serial Multi I/O)
Flash Memory, SOP-8
1 U2 CC3230 Texas Instruments CC3230SF12RGK SimpleLink™ Wi-Fi® and internet-of-things
Solution, a Single-Chip Wireless
MCU, RGK0064B
1 U3(3) SPDT Switch Richwave RTC6608OSP 0.03 GHz-6 GHz SPDT Switch
1 Y1 Crystal Abracon Corportation ABS07-32.768KHZ-9-T Crystal, 32.768 KHz, 9PF, SMD
1 Y2 Crystal Epson Q24FA20H0039600 Crystal, 40 MHz, 8pF, SMD
(1) For the CC3230SF device, L5 is populated. For the CC3230S device, L5 is not populated.
(2) For the CC3230SF device, R8 is not populated. For the CC3230S device if R8 is populated, Pin 45 can be used as GPIO_31.
(3) If the BLE/2.4 GHz Coexistence features is not used, these components are not required.
