4 Functional Block Diagrams

Figure 4-1 shows the functional block diagram of the CC3230x SimpleLink Wi-Fi solution.

CC3230S CC3230SF CC3230x Functional Block Diagram
When using the antenna selection feature (dual antenna), an SPDT switch and two GPIO lines are required.
Figure 4-1 CC3230x Functional Block Diagram

Figure 4-1 shows the hardware overview for the CC3230x device.

CC3230S CC3230SF CC320x Hardware OverviewFigure 4-2 CC320x Hardware Overview

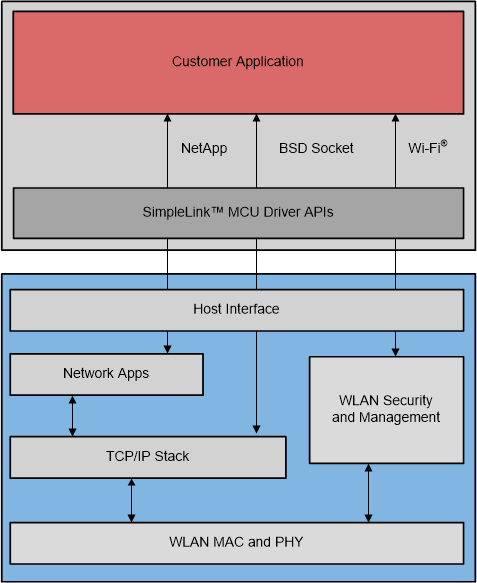

Figure 4-3 shows an overview of the embedded software in the CC3230x device.

CC3230S CC3230SF CC3230x Embedded Software OverviewFigure 4-3 CC3230x Embedded Software Overview
