8.2.3 Application Curve

The following typical eye diagrams of the ISO674x-Q1 family of devices indicates low jitter and wide open eye at the maximum data rate of 50 Mbps.

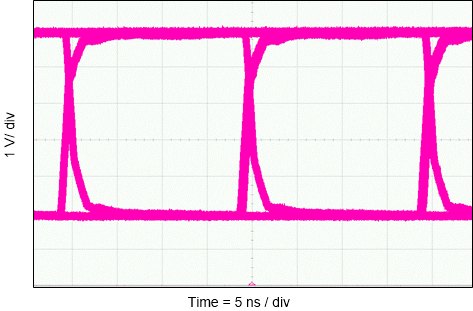

ISO6740-Q1 ISO6741-Q1 ISO6742-Q1 Eye Diagram at 50 Mbps PRBS 216 – 1, 5 V and 25°C
Figure 8-3 Eye Diagram at 50 Mbps PRBS 216 – 1, 5 V and 25°C
ISO6740-Q1 ISO6741-Q1 ISO6742-Q1 Eye Diagram at 50 Mbps PRBS 216 – 1, 2.5 V and 25°C
Figure 8-5 Eye Diagram at 50 Mbps PRBS 216 – 1, 2.5 V and 25°C
ISO6740-Q1 ISO6741-Q1 ISO6742-Q1 Eye Diagram at 50 Mbps PRBS 216 – 1, 3.3 V and 25°C
Figure 8-4 Eye Diagram at 50 Mbps PRBS 216 – 1, 3.3 V and 25°C

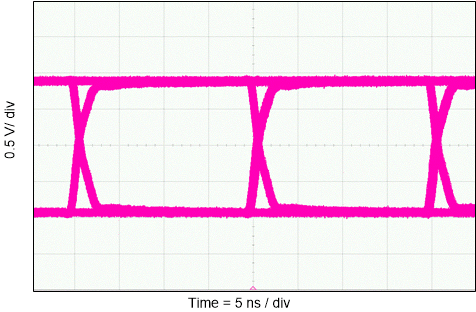

ISO6740-Q1 ISO6741-Q1 ISO6742-Q1 Eye Diagram at 50 Mbps PRBS 216 – 1, 1.8 V and 25°C
Figure 8-6 Eye Diagram at 50 Mbps PRBS 216 – 1, 1.8 V and 25°C
