7.22 Typical Characteristics

ISO6740 ISO6741 ISO6742 ISO6740 Supply Current vs Data Rate (With 15-pF Load)
TA = 25°C CL = 15 pF
Figure 7-3 ISO6740 Supply Current vs Data Rate (With 15-pF Load)
ISO6740 ISO6741 ISO6742 ISO6741 Supply Current vs Data Rate (With 15-pF Load)
TA = 25°C CL = 15 pF
Figure 7-5 ISO6741 Supply Current vs Data Rate (With 15-pF Load)
ISO6740 ISO6741 ISO6742 ISO6742 Supply Current vs Data Rate (With 15-pF Load)
TA = 25°C CL = 15 pF
Figure 7-7 ISO6742 Supply Current vs Data Rate (With 15-pF Load)

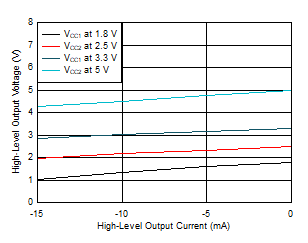

ISO6740 ISO6741 ISO6742 High-Level Output Voltage vs High-level Output Current
TA = 25°C
Figure 7-9 High-Level Output Voltage vs High-level Output Current

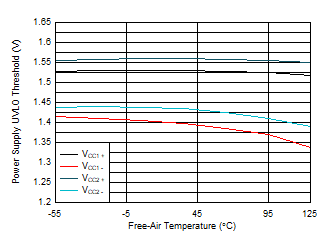

ISO6740 ISO6741 ISO6742 Power Supply Undervoltage Threshold vs Free-Air Temperature
Figure 7-11 Power Supply Undervoltage Threshold vs Free-Air Temperature
ISO6740 ISO6741 ISO6742 ISO6740 Supply Current vs Data Rate (With No Load)
TA = 25°C CL = No Load
Figure 7-4 ISO6740 Supply Current vs Data Rate (With No Load)
ISO6740 ISO6741 ISO6742 ISO6741 Supply Current vs Data Rate (With No Load)
TA = 25°C CL = No Load
Figure 7-6 ISO6741 Supply Current vs Data Rate (With No Load)
ISO6740 ISO6741 ISO6742 ISO6742 Supply Current vs Data Rate (With No Load)
TA = 25°C CL = No Load
Figure 7-8 ISO6742 Supply Current vs Data Rate (With No Load)
ISO6740 ISO6741 ISO6742 Low-Level Output Voltage vs Low-Level Output Current
TA = 25°C
Figure 7-10 Low-Level Output Voltage vs Low-Level Output Current
ISO6740 ISO6741 ISO6742 Propagation Delay Time vs Free-Air Temperature
Figure 7-12 Propagation Delay Time vs Free-Air Temperature
