10.2.3 Application Curve

The following typical eye diagrams of the ISO674x family of devices indicates low jitter and wide open eye at the maximum data rate of 50 Mbps.

ISO6740 ISO6741 ISO6742 Eye Diagram at 50 Mbps PRBS 216 – 1, 5 V and 25°C
Figure 10-3 Eye Diagram at 50 Mbps PRBS 216 – 1, 5 V and 25°C
ISO6740 ISO6741 ISO6742 Eye Diagram at 50 Mbps PRBS 216 – 1, 2.5 V and 25°C
Figure 10-5 Eye Diagram at 50 Mbps PRBS 216 – 1, 2.5 V and 25°C
ISO6740 ISO6741 ISO6742 Eye Diagram at 50 Mbps PRBS 216 – 1, 3.3 V and 25°C
Figure 10-4 Eye Diagram at 50 Mbps PRBS 216 – 1, 3.3 V and 25°C

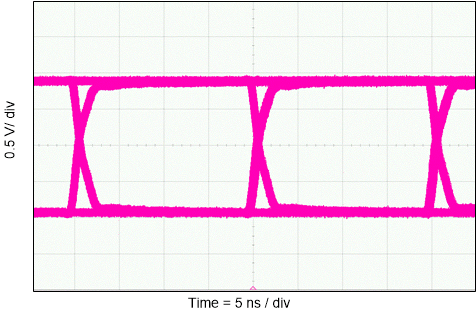

ISO6740 ISO6741 ISO6742 Eye Diagram at 50 Mbps PRBS 216 – 1, 1.8 V and 25°C
Figure 10-6 Eye Diagram at 50 Mbps PRBS 216 – 1, 1.8 V and 25°C
