6 Pin Configuration and Functions

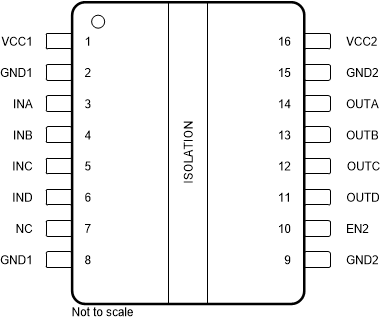

ISO6740 ISO6741 ISO6742 ISO6740 DW Package16-Pin SOIC-WB Top ViewFigure 6-1 ISO6740 DW Package16-Pin SOIC-WB Top View

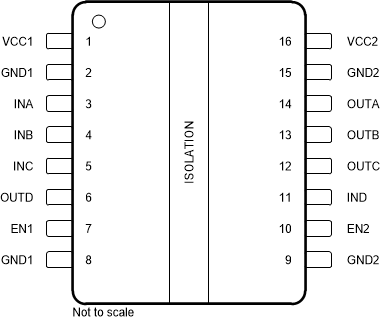

ISO6740 ISO6741 ISO6742 ISO6741 DW Package16-Pin SOIC-WBTop ViewFigure 6-2 ISO6741 DW Package16-Pin SOIC-WBTop View

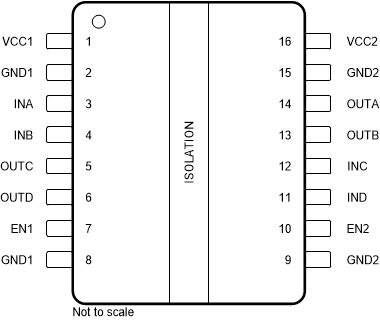

ISO6740 ISO6741 ISO6742 ISO6742 DW Package16-Pin SOIC-WB Top ViewFigure 6-3 ISO6742 DW Package16-Pin SOIC-WB Top View
Table 6-1 Pin Functions
PINI/ODESCRIPTION
NAMEISO6740ISO6741ISO6742
EN1-77IOutput enable 1. Output pins on side 1 are enabled when EN1 is high or open and in high-impedance state when EN1 is low.
EN2101010IOutput enable 2. Output pins on side 2 are enabled when EN2 is high or open and in high-impedance state when EN2 is low.
GND12, 82,82,8—Ground connection for VCC1
GND29, 159,159,15—Ground connection for VCC2
INA333IInput, channel A
INB444IInput, channel B
INC5512IInput, channel C
IND61111IInput, channel D
NC7--Not connected
OUTA141414OOutput, channel A
OUTB131313OOutput, channel B
OUTC12125OOutput, channel C
OUTD1166OOutput, channel D
VCC1111—Power supply, side 1
VCC2161616—Power supply, side 2
