7.13.1 Antenna Radiation Patterns for Receiver

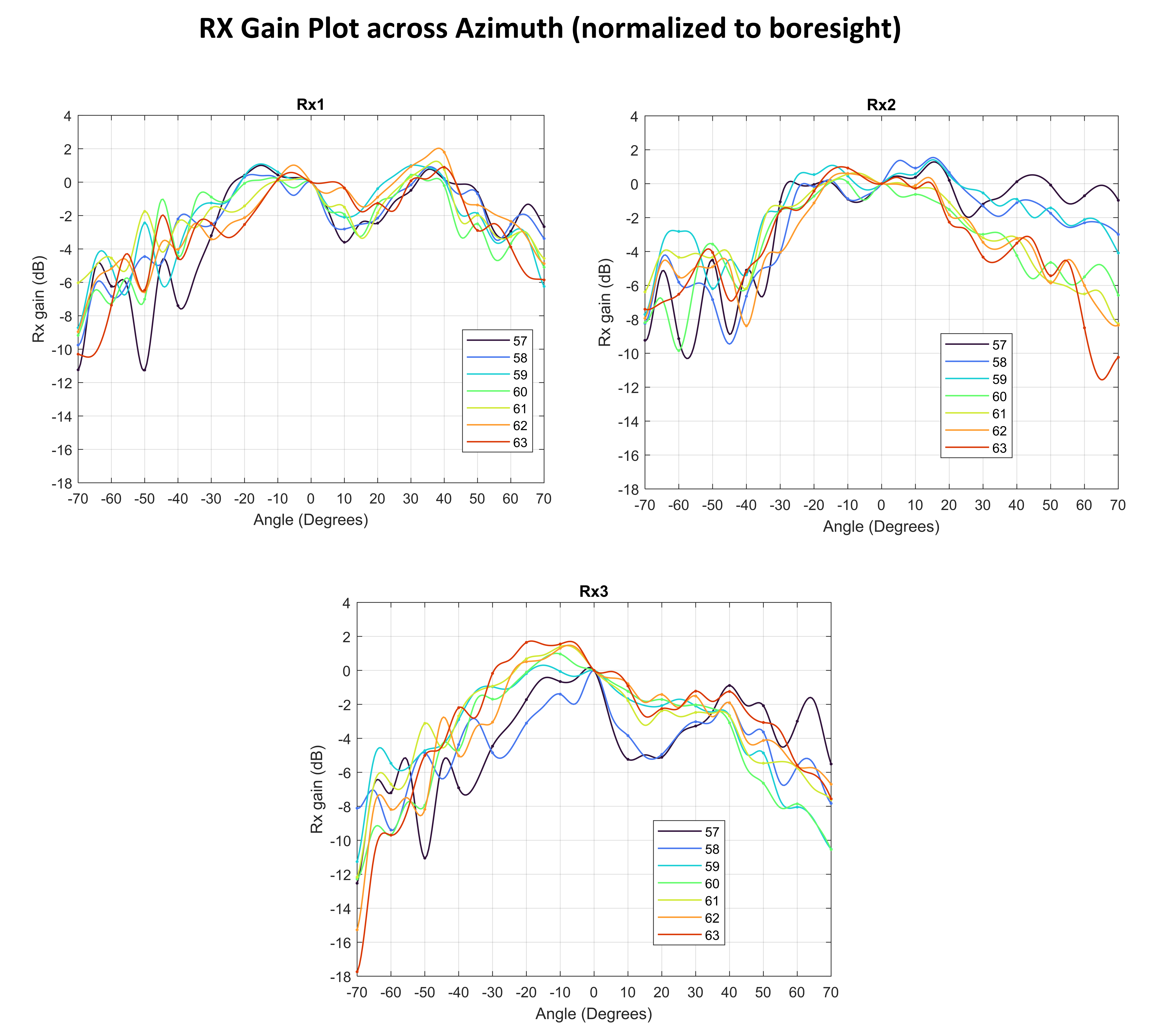

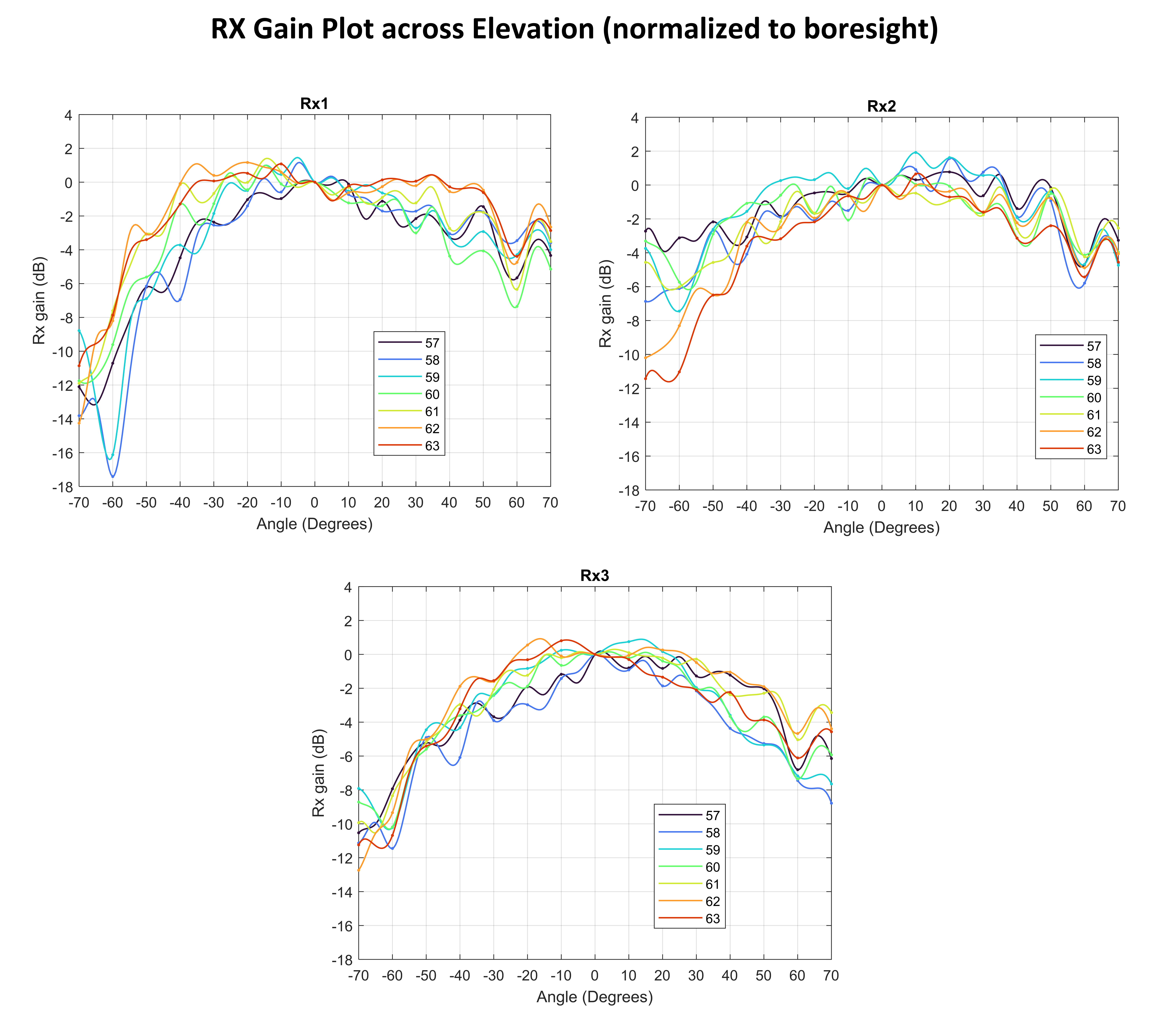

Figure 7-9 shows typical antenna radiation gain plots normalized to boresight at various frequencies for the three receivers in both Azimuth and Elevation planes. The Y axis shows the Gain in dB and X axis shows the angle in degrees.

IWRL6432AOP Receiver Gain Plot normalized to boresight IWRL6432AOP Receiver Gain Plot normalized to boresight Figure 7-9 Receiver Gain Plot normalized to boresight
