8.3.14 Clock Output Interfacing and Termination

These figures show the recommended output interfacing and termination circuits. Unused clock outputs can be left floating and powered down by programming.

LMK5B12204 1.8V LVCMOS Output to 1.8V LVCMOS ReceiverFigure 8-26 1.8V LVCMOS Output to 1.8V LVCMOS Receiver
LMK5B12204 AC-LVDS Output to LVDS Receiver With Internal Termination/BiasingFigure 8-27 AC-LVDS Output to LVDS Receiver With Internal Termination/Biasing
LMK5B12204 AC-CML Output to CML Receiver With Internal Termination/BiasingFigure 8-28 AC-CML Output to CML Receiver With Internal Termination/Biasing

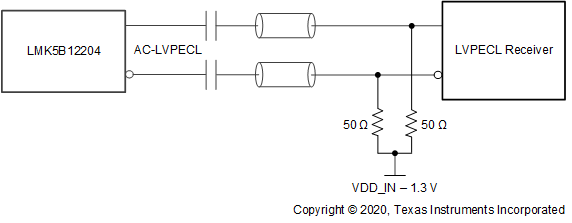

LMK5B12204 AC-LVPECL Output to LVPECL Receiver With External Termination/BiasingFigure 8-29 AC-LVPECL Output to LVPECL Receiver With External Termination/Biasing
LMK5B12204 HCSL Output to HCSL Receiver With External Source Termination
If HCSL Internal Termination (50Ω to GND) is enabled, short 33Ω and remove 50Ω external resistors.
Figure 8-30 HCSL Output to HCSL Receiver With External Source Termination
