8.3.2 EMI Rejection

The OPAx191 uses integrated electromagnetic interference (EMI) filtering to reduce the effects of EMI from sources such as wireless communications and densely-populated boards with a mix of analog signal chain and digital components. EMI immunity can be improved with circuit design techniques; the OPAx191 benefits from these design improvements. Texas Instruments has developed the ability to accurately measure and quantify the immunity of an operational amplifier over a broad frequency spectrum extending from 10 MHz to 6 GHz. Figure 8-3 shows the results of this testing on the OPAx191. Table 8-1 shows the EMIRR IN+ values for the OPAx191 at particular frequencies commonly encountered in real-world applications. Applications listed in Table 8-1 may be centered on or operated near the particular frequency shown. Detailed information can also be found in the EMI Rejection Ratio of Operational Amplifiers application report , available for download from www.ti.com.

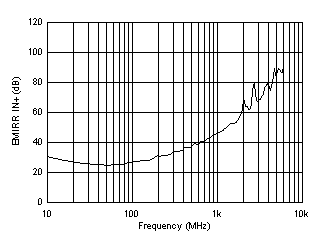

PRF = –10 dBm, VS = ±15 V, VCM = 0 V
Figure 8-3 EMIRR Testing
Table 8-1 OPA191 EMIRR IN+ For Frequencies of Interest
FREQUENCYAPPLICATION OR ALLOCATIONEMIRR IN+
400 MHzMobile radio, mobile satellite, space operation, weather, radar, ultra-high frequency (UHF) applications36 dB
900 MHzGlobal system for mobile communications (GSM) applications, radio communication, navigation, GPS (to 1.6 GHz), GSM, aeronautical mobile, UHF applications45 dB
1.8 GHzGSM applications, mobile personal communications, broadband, satellite, L-band (1 GHz to 2 GHz)57 dB
2.4 GHz802.11b, 802.11g, 802.11n, Bluetooth®, mobile personal communications, industrial, scientific and medical (ISM) radio band, amateur radio and satellite, S-band (2 GHz to 4 GHz)62 dB
3.6 GHzRadiolocation, aero communication and navigation, satellite, mobile, S-band76 dB
5.0 GHz802.11a, 802.11n, aero communication and navigation, mobile communication, space and satellite operation, C-band (4 GHz to 8 GHz)86 dB
