7.4.1 Negative Reference Voltage

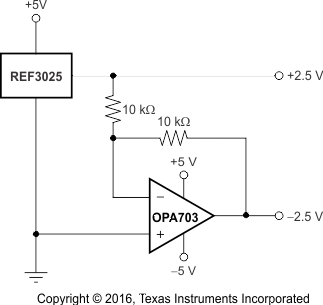

For applications requiring a negative and positive reference voltage, the OPA703 and REF30 can be used to provide a dual-supply reference from a ±5V supply. Figure 7-3 shows the REF3025 used to provide a ±2.5V supply reference voltage. The low offset voltage and low drift of the OPA703 complement the low drift performance of the REF30 to provide an accurate resolution for split-supply applications.

REF30 REF30E REF3025 Combined With OPA703 to Create Positive and Negative Reference Voltages.Figure 7-3 REF3025 Combined With OPA703 to Create Positive and Negative Reference Voltages.
