Typical Characteristics

VCC = 5 VVIO = 3.3 VRL = 60 Ω
CL = OpenRCM = OpenSTB = 0 V

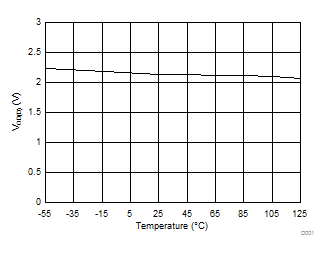

Figure 7-1 VOD(D) over Temperature
VCC = 5 VVIO = 3.3 VRL = 60 Ω
CL = OpenRCM = OpenSTB = 0 V

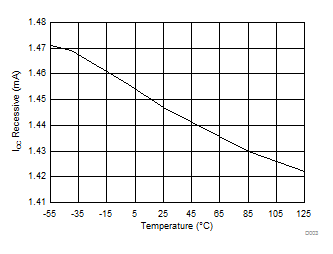

Figure 7-3 ICC Recessive over Temperature
VIO = 5 VSTB = 0 VRL = 60 Ω
CL = OpenRCM = OpenTemp = 25°C

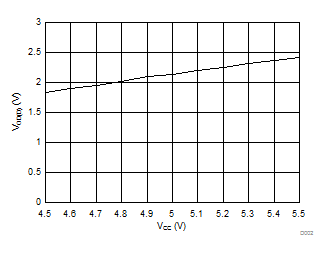

Figure 7-2 VOD(D) over VCC
VCC = 5 VVIO = 3.3 VRL = 60 Ω
CL = 100 pFCL_RXD = 15 pFSTB = 0 V
Figure 7-4 Total Loop Delay over Temperature
