Typical Characteristics: (VS+) – (VS–) = 3-V to 12-V Supply Range

at TA ≈ 25°C, VOCM pin = open, RF = 1.5 kΩ, RL = 1 kΩ, VO = 2 VPP, 50-Ω input match, G = 1 V/V, PD = VS+, single-ended input, differential output, and input and output referenced to default midsupply for AC-coupled tests (unless otherwise noted); see Figure 8-1 for a gain of 1-V/V test circuit.

1000 DGK units at each VS
Figure 7-35 Input Offset Voltage (VOS)
VS = 12 V, 5 V, and 3 V,
delta from 25°C VOS, 30 DGK units for each VS

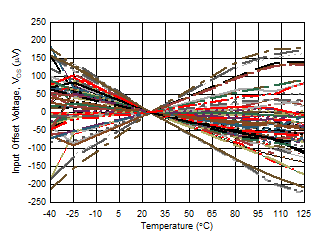

Figure 7-37 Input Offset Voltage vs Temperature
–40°C to +125°C endpoint drift, 30 DGK units for each VS

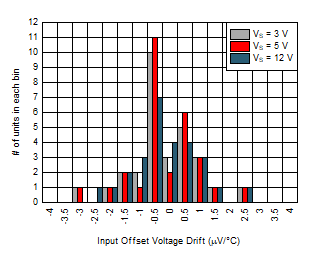

Figure 7-39 Input Offset Voltage Drift Histogram
Simulated
Figure 7-41 Main Amplifier Differential Open-Loop Gain and Phase vs Frequency

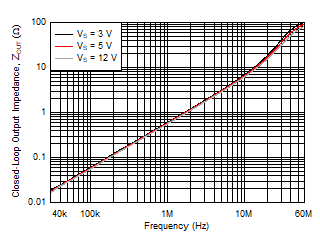

Figure 7-43 Closed-Loop Output Impedance vs Frequency
Average of 30 units
Figure 7-45 Quiescent Current vs VS
Figure 7-47 Common-Mode Voltage, Small-Signal and Large-Signal Response (VOCM Pin Driven)
VOCM pin driven, 0.1-V VOCM step
Figure 7-49 Common-Mode Voltage Small-Signal Step Response
Simulated
Figure 7-51 Output Balance vs Frequency
1000 DGK units at each VS
Figure 7-36 Input Offset Current (IOS)
VS = 12 V and 5 V,
delta from 25°C IOS, 50 DGK units for each VS

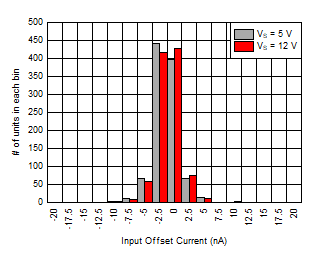

Figure 7-38 Input Offset Current vs Temperature
–40°C to +125°C endpoint drift, 50 DGK units for each VS
Figure 7-40 Input Offset Current Drift Histogram
Simulated

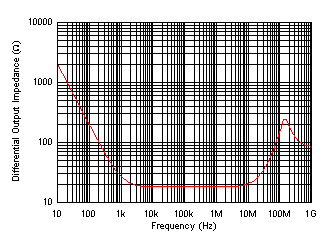

Figure 7-42 Open-Loop Output Impedance vs Frequency
VO = 100-mV step, tr (10% - 90%) = 5.7 ns

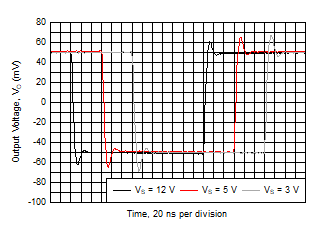

Figure 7-44 Small-Signal Step Response
5 MHz, 2-VPP input, G = 1 V/V, see Figure 8-1

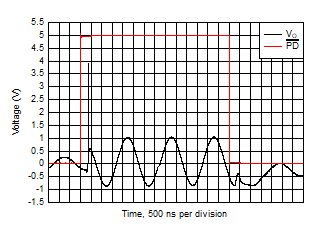

Figure 7-46 PD Turnon and Turnoff Waveform
The VOCM pin is either driven to midsupply by low-impedance source or allowed to float and default to midsupply
Figure 7-48 Output Common-Mode (VOCM) Noise vs Frequency
VOCM pin driven, 1-V VOCM step
Figure 7-50 Common-Mode Voltage Large-Signal Step Response
Simulated
Figure 7-52 CMRR and PSRR vs Frequency
