5.10 Typical Characteristics

data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices

Table of Graphs
TYPICAL CHARACTERISTIC FIGURE
VIO Input offset voltage Distribution Figure 5-1, Figure 5-2
αVIO Temperature coefficient Distribution Figure 5-3, Figure 5-4
VOH High-level output voltage vs High-level output current Figure 5-5, Figure 5-6
vs Supply voltage Figure 5-7
vs Free-air temperature Figure 5-8
VOL Low-level output voltage vs Common-mode input voltage Figure 5-9, Figure 5-10
vs Differential input voltage Figure 5-11
vs Free-air temperature Figure 5-12
vs Low-level output current Figure 5-13, Figure 5-14
AVD Large-signal differential voltage amplification vs Supply voltage Figure 5-15
vs Free-air temperature Figure 5-16
vs Frequency Figure 5-25, Figure 5-26
IIB Input bias current vs Free-air temperature Figure 5-17
IIO Input offset current vs Free-air temperature Figure 5-17
VI Maximum input voltage vs Supply voltage Figure 5-18
IDD Supply current vs Supply voltage Figure 5-19
vs Free-air temperature Figure 5-20
SR Slew rate vs Supply voltage Figure 5-21
vs Free-air temperature Figure 5-22
Bias-select current vs Supply voltage Figure 5-23
VO(PP) Maximum peak-to-peak output voltage vs Frequency Figure 5-24
φm Phase margin vs Supply voltage Figure 5-27
vs Free-air temperature Figure 5-28
vs Capacitive load Figure 5-29
Vn Equivalent input noise voltage vs Frequency Figure 5-30
Phase shift vs Frequency Figure 5-25, Figure 5-26
TLC27L1 TLC27L1A Distribution of TLC27L1 Input Offset VoltageFigure 5-1 Distribution of TLC27L1
Input Offset Voltage

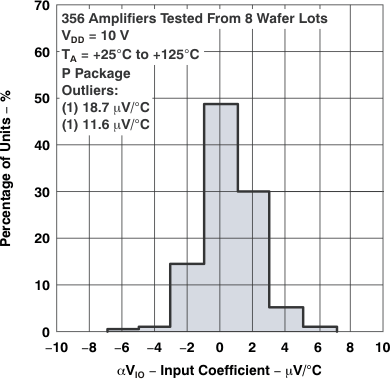

TLC27L1 TLC27L1A Distribution of TLC27L1 Input Offset Voltage Temperature CoefficientFigure 5-3 Distribution of TLC27L1
Input Offset Voltage
Temperature Coefficient

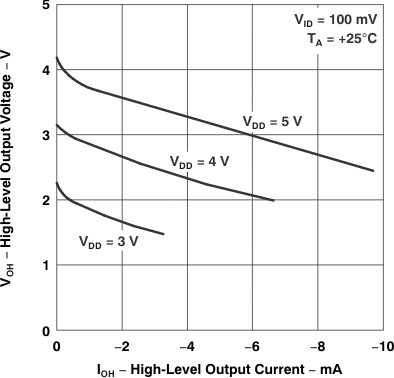

TLC27L1 TLC27L1A High-Level Output Voltage vs High-Level Output CurrentFigure 5-5 High-Level Output Voltage
vs
High-Level Output Current
TLC27L1 TLC27L1A High-Level Output Voltage vs Supply VoltageFigure 5-7 High-Level Output Voltage
vs
Supply Voltage

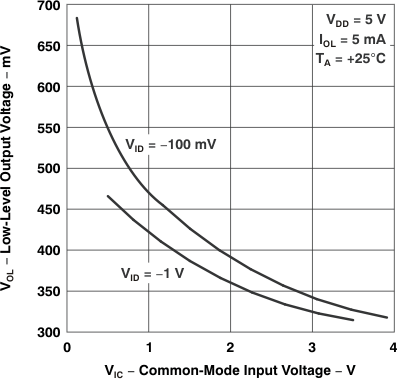

TLC27L1 TLC27L1A Low-Level Output Voltage vs Common-Mode Input VoltageFigure 5-9 Low-Level Output Voltage
vs
Common-Mode Input Voltage

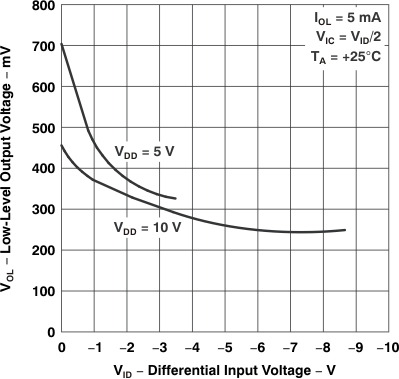

TLC27L1 TLC27L1A Low-Level Output Voltage vs Differential Input VoltageFigure 5-11 Low-Level Output Voltage
vs
Differential Input Voltage

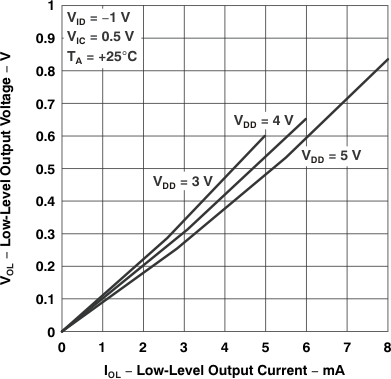

TLC27L1 TLC27L1A Low-Level Output Voltage vs Low-Level Output CurrentFigure 5-13 Low-Level Output Voltage
vs
Low-Level Output Current

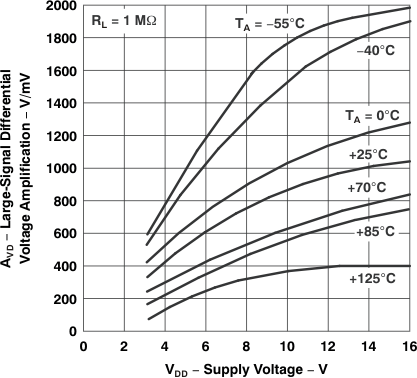

TLC27L1 TLC27L1A Large-Signal differential Voltage Amplification vs Supply VoltageFigure 5-15 Large-Signal
differential Voltage Amplification
vs Supply Voltage

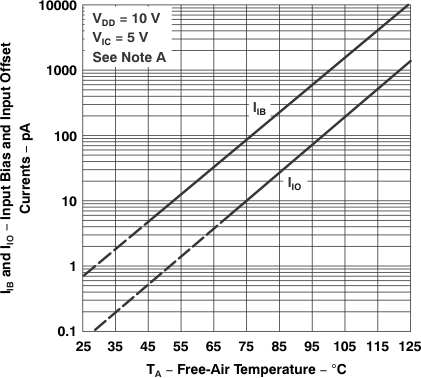

TLC27L1 TLC27L1A Input Bias and Input Offset Currents vs Free-Air Temperature
Typical values of input bias current and input offset current less than 5pA determined mathematically
Figure 5-17 Input Bias and Input Offset Currents
vs
Free-Air Temperature

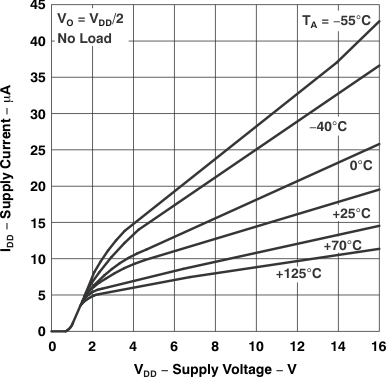

TLC27L1 TLC27L1A Supply Current vs Supply VoltageFigure 5-19 Supply Current
vs
Supply Voltage
TLC27L1 TLC27L1A Slew Rate vs Supply VoltageFigure 5-21 Slew Rate
vs
Supply Voltage
TLC27L1 TLC27L1A Bias-Select Current vs Supply VoltageFigure 5-23 Bias-Select Current
vs
Supply Voltage
TLC27L1 TLC27L1A Large-Signal Differential VoltageAmplification and Phase Shift vs FrequencyFigure 5-25 Large-Signal Differential Voltage
Amplification and Phase Shift
vs Frequency
TLC27L1 TLC27L1A Phase Margin vs Supply VoltageFigure 5-27 Phase Margin
vs
Supply Voltage

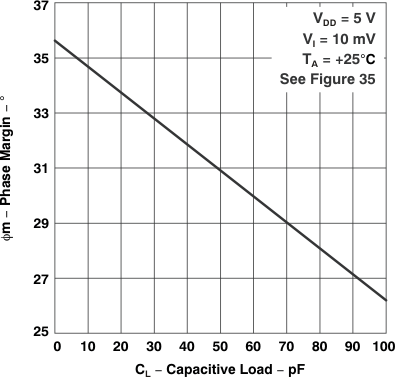

TLC27L1 TLC27L1A Phase Margin vs Capacitive LoadFigure 5-29 Phase Margin
vs
Capacitive Load
TLC27L1 TLC27L1A Distribution of TLC27L1 Input Offset VoltageFigure 5-2 Distribution of TLC27L1
Input Offset Voltage

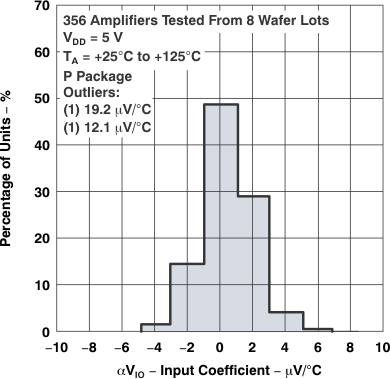

TLC27L1 TLC27L1A Distribution of TLC27L1 Input Offset Voltage Temperature CoefficientFigure 5-4 Distribution of TLC27L1
Input Offset Voltage
Temperature Coefficient

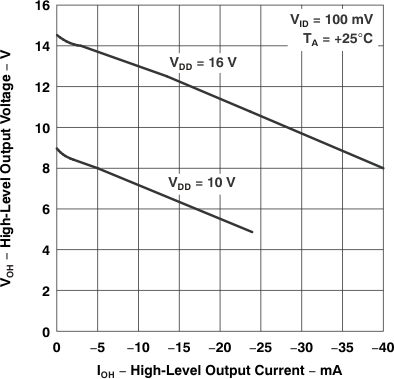

TLC27L1 TLC27L1A High-Level Output Voltage vs High-Level Output CurrentFigure 5-6 High-Level Output Voltage
vs
High-Level Output Current
TLC27L1 TLC27L1A High-Level Output Voltage vs Free-Air TemperatureFigure 5-8 High-Level Output Voltage
vs
Free-Air Temperature

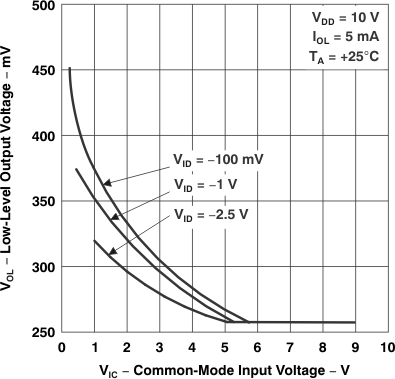

TLC27L1 TLC27L1A Low-Level Output Voltage vs Common-Mode Input VoltageFigure 5-10 Low-Level Output Voltage
vs
Common-Mode Input Voltage

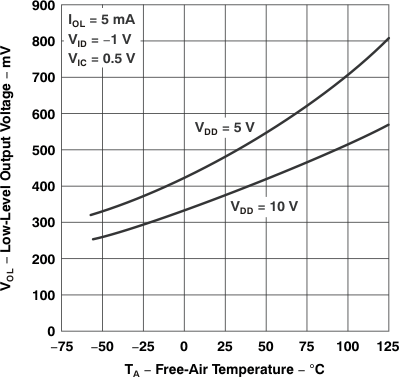

TLC27L1 TLC27L1A Low-Level Output Voltage vs Free-Air TemperatureFigure 5-12 Low-Level Output Voltage
vs
Free-Air Temperature

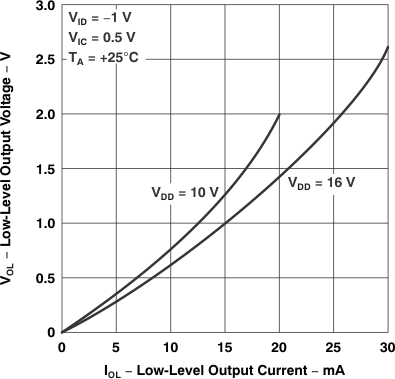

TLC27L1 TLC27L1A Low-Level Output Voltage vs Low-Level Output CurrentFigure 5-14 Low-Level Output Voltage
vs
Low-Level Output Current
TLC27L1 TLC27L1A Large-Signal Differential Voltage Amplification vs Free-Air TemperatureFigure 5-16 Large-Signal
Differential Voltage Amplification
vs Free-Air Temperature

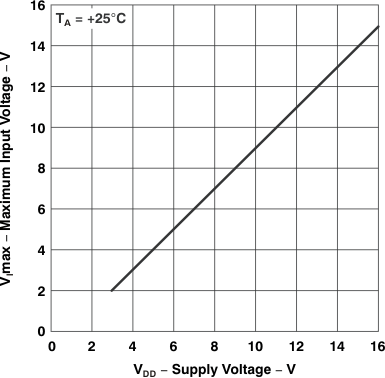

TLC27L1 TLC27L1A Maximum Input Voltage vs Supply Voltage


Figure 5-18 Maximum Input Voltage
vs
Supply Voltage

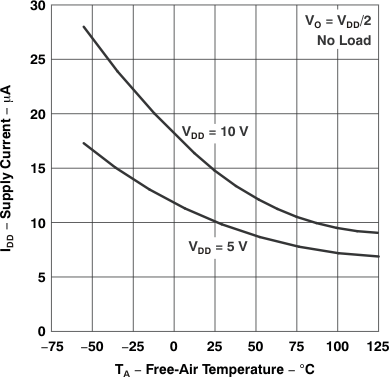

TLC27L1 TLC27L1A Supply Current vs Free-Air TemperatureFigure 5-20 Supply Current
vs
Free-Air Temperature
TLC27L1 TLC27L1A Slew Rate vs Free-Air TemperatureFigure 5-22 Slew Rate
vs
Free-Air Temperature
TLC27L1 TLC27L1A Maximum Peak-to-Peak Output Voltage vs FrequencyFigure 5-24 Maximum Peak-to-Peak Output Voltage
vs
Frequency

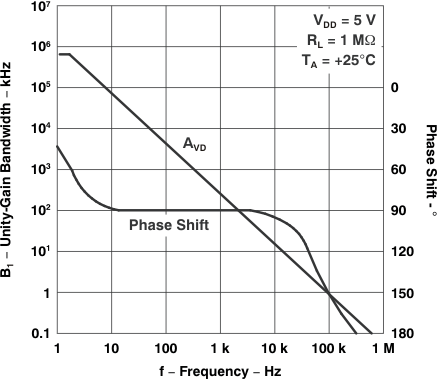

TLC27L1 TLC27L1A Large-Signal Differential VoltageAmplification and Phase Shift vs FrequencyFigure 5-26 Large-Signal Differential Voltage
Amplification and Phase Shift
vs Frequency

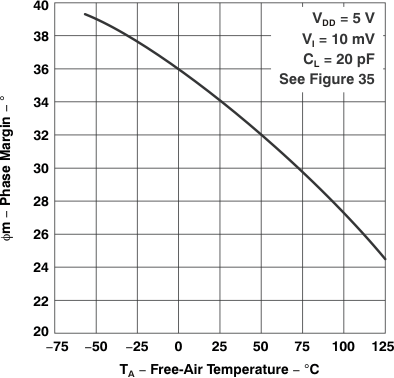

TLC27L1 TLC27L1A Phase Margin vs Free-Air TemperatureFigure 5-28 Phase Margin
vs
Free-Air Temperature
TLC27L1 TLC27L1A Equivalent Input Noise Voltage vs FrequencyFigure 5-30 Equivalent Input Noise Voltage
vs
Frequency
