7.9.2.3.1.1 Electrical Characteristics of the Comparator/DAC
PARAMETERMINTYPMAXUNITS
Comparator
Comparator Input RangeVSSA – VDDAV
Comparator response time to PWM Trip Zone (Async)30ns
Input Offset±5mV
Input Hysteresis(1)35mV
DAC
DAC Output RangeVSSA – VDDAV
DAC resolution10bits
DAC settling timeSee Figure 7-27
DAC Gain–1.5%
DAC Offset10mV
MonotonicYes
INL±3LSB
(1) Hysteresis on the comparator inputs is achieved with a Schmidt trigger configuration. This results in an effective 100-kΩ feedback resistance between the output of the comparator and the noninverting input of the comparator. There is an option to disable the hysteresis and, with it, the feedback resistance; see the Analog-to-Digital Converter and Comparator chapter in the TMS320F2803x Real-Time Microcontrollers Technical Reference Manual for more information on this option if needed in your system.

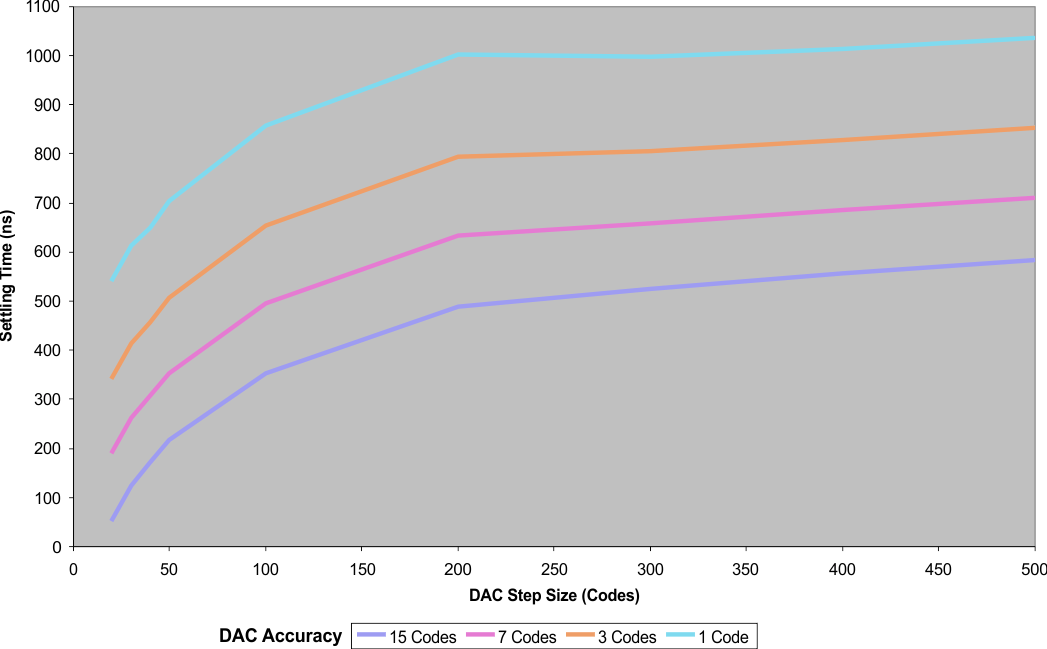

GUID-7D6D98BB-29CD-4125-B58C-CBAC37DCC547-low.gifFigure 7-27 DAC Settling Time
