7.9.4.1.1 SPI Master Mode External Timing (Clock Phase = 0)
NO. PARAMETER(1)(2)(3)(4)(5) BRR EVEN BRR ODD UNIT
MIN MAX MIN MAX
1 tc(SPC)M Cycle time, SPICLK 4tc(LSPCLK) 128tc(LSPCLK) 5tc(LSPCLK) 127tc(LSPCLK) ns
2 tw(SPC1)M Pulse duration, SPICLK first pulse 0.5tc(SPC)M – 10 0.5tc(SPC)M + 10 0.5tc(SPC)M + 0.5tc(LSPCLK) – 10 0.5tc(SPC)M +
0.5tc(LSPCLK) + 10		 ns
3 tw(SPC2)M Pulse duration, SPICLK second pulse 0.5tc(SPC)M – 10 0.5tc(SPC)M + 10 0.5tc(SPC)M – 0.5tc(LSPCLK) – 10 0.5tc(SPC)M –
0.5tc(LSPCLK) + 10		 ns
4 td(SIMO)M Delay time, SPICLK to SPISIMO valid 10 10 ns
5 tv(SIMO)M Valid time, SPISIMO valid after SPICLK 0.5tc(SPC)M – 10 0.5tc(SPC)M – 0.5tc(LSPCLK) – 10 ns
8 tsu(SOMI)M Setup time, SPISOMI before SPICLK 26 26 ns
9 th(SOMI)M Hold time, SPISOMI valid after SPICLK 0 0 ns
23 td(SPC)M Delay time, SPISTE active to SPICLK 1.5tc(SPC)M –
3tc(SYSCLK) – 10		 1.5tc(SPC)M –
3tc(SYSCLK) – 10		 ns
24 td(STE)M Delay time, SPICLK to SPISTE inactive 0.5tc(SPC)M – 10 0.5tc(SPC)M – 0.5tc(LSPCLK) – 10 ns
(1) The MASTER / SLAVE bit (SPICTL.2) is set and the CLOCK PHASE bit (SPICTL.3) is cleared.
(2) tc(SPC) = SPI clock cycle time = LSPCLK/4 or LSPCLK/(SPIBRR +1)
(3) tc(LCO) = LSPCLK cycle time
(4) Internal clock prescalers must be adjusted such that the SPI clock speed is limited to the following SPI clock rate:
Master mode transmit 25-MHz MAX, master mode receive 12.5-MHz MAX
Slave mode transmit 12.5-MAX, slave mode receive 12.5-MHz MAX.
(5) The active edge of the SPICLK signal referenced is controlled by the clock polarity bit (SPICCR.6).

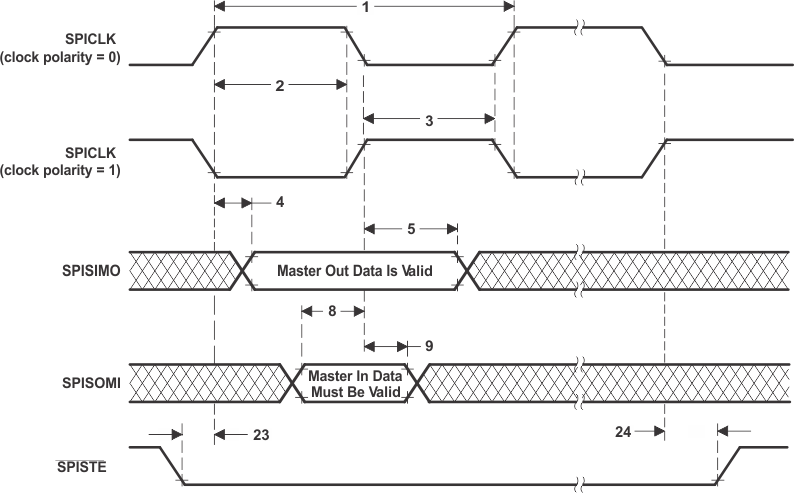

GUID-43FA3603-964E-4701-ACB6-5721EAC02F41-low.gif Figure 7-29 SPI Master Mode External Timing (Clock Phase = 0)
