Ultra-Low Charge Injection

The TMUX111x devices have a transmission gate topology, as shown in Figure 8-3. Any mismatch in the stray capacitance associated with the NMOS and PMOS causes an output level change whenever the switch is opened or closed.

The TMUX111x devices have special charge-injection cancellation circuitry that reduces the source-to-drain charge injection to -1.5pC at VS = 1V as shown in Figure 8-4.

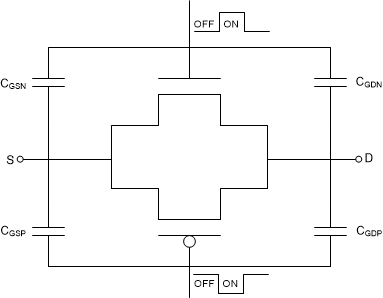

GUID-0040BE35-F6FB-448D-80DC-8147652BDD3F-low.gifFigure 8-3 Transmission Gate Topology
GUID-349D7134-4FAF-4D5E-A416-38EDC37C9F6E-low.gifFigure 8-4 Charge Injection vs Source Voltage
