6.9 Typical Characteristics

at TA = 25°C, VDD = 15V, and VSS = –15V (unless otherwise noted)

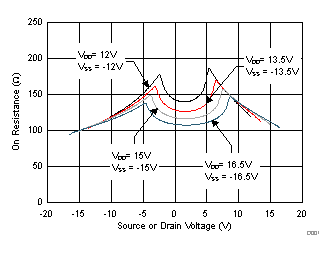

TMUX6111 TMUX6112 TMUX6113 On-Resistance vs Source or Drain Voltage
Dual Supply Operation (TA = 25°C)
Figure 6-1 On-Resistance vs Source or Drain Voltage
TMUX6111 TMUX6112 TMUX6113 On-Resistance vs Source or Drain Voltage
VDD = 15V, VSS = –15V
Figure 6-3 On-Resistance vs Source or Drain Voltage
TMUX6111 TMUX6112 TMUX6113 Leakage Current vs Temperature
VDD = 15V, VSS = –15V
Figure 6-5 Leakage Current vs Temperature
TMUX6111 TMUX6112 TMUX6113 Charge Injection vs Source Voltage
TA = 25°C
Figure 6-7 Charge Injection vs Source Voltage

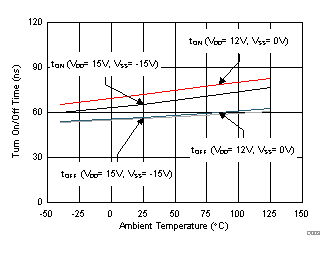

TMUX6111 TMUX6112 TMUX6113 Turn-On and Turn-Off Times vs TemperatureFigure 6-9 Turn-On and Turn-Off Times vs Temperature

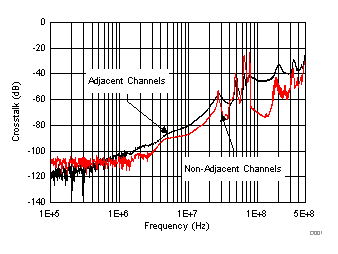

TMUX6111 TMUX6112 TMUX6113 Crosstalk vs Frequency
VDD = 15V, VSS = –15V, TA = 25°C
Figure 6-11 Crosstalk vs Frequency
TMUX6111 TMUX6112 TMUX6113 On Response vs Frequency
VDD = 15V, VSS = –15V, TA = 25°C
Figure 6-13 On Response vs Frequency
TMUX6111 TMUX6112 TMUX6113 Capacitance vs Source Voltage
VDD = 15V, VSS = –15V, TA = 25°C
Figure 6-15 Capacitance vs Source Voltage

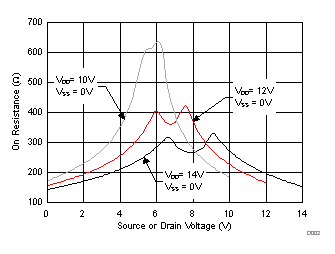

TMUX6111 TMUX6112 TMUX6113 On-Resistance vs Source or Drain Voltage
Single Supply Operation (TA = 25°C)
Figure 6-2 On-Resistance vs Source or Drain Voltage
TMUX6111 TMUX6112 TMUX6113 On-Resistance vs Source or Drain Voltage
VDD = 12V, VSS = 0V
Figure 6-4 On-Resistance vs Source or Drain Voltage
TMUX6111 TMUX6112 TMUX6113 Leakage Current vs Temperature
VDD = 12V, VSS = 0V
Figure 6-6 Leakage Current vs Temperature

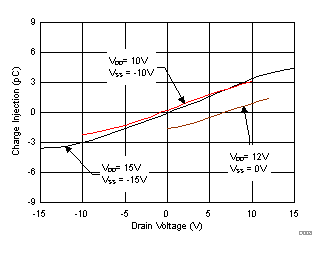

TMUX6111 TMUX6112 TMUX6113 Charge Injection vs Drain Voltage
TA = 25°C
Figure 6-8 Charge Injection vs Drain Voltage
TMUX6111 TMUX6112 TMUX6113 Off Isolation vs Frequency
TA = 25°C
Figure 6-10 Off Isolation vs Frequency

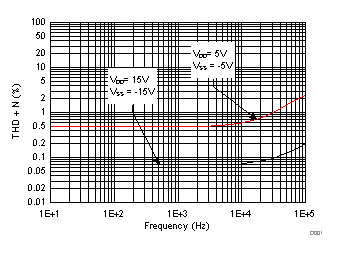

TMUX6111 TMUX6112 TMUX6113 THD+N vs Frequency
TA = 25°C
Figure 6-12 THD+N vs Frequency

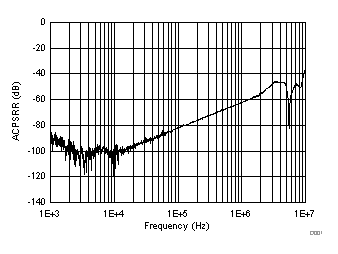

TMUX6111 TMUX6112 TMUX6113 ACPSRR vs Frequency
A.
VDD = 15V, VSS = –15V, VPP= 0.62V, TA = 25°C
Figure 6-14 ACPSRR vs Frequency
TMUX6111 TMUX6112 TMUX6113 Capacitance vs Source Voltage
VDD = 12V, VSS = 0V, TA = 25°C
Figure 6-16 Capacitance vs Source Voltage
