5.9 Typical Characteristics

at TA = 25°C, VDD = 15V, and VSS = –15V (unless otherwise noted)

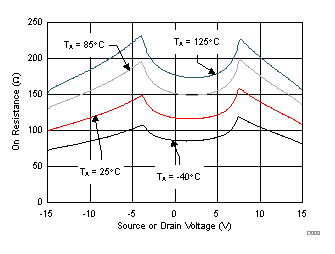

TMUX6119 On-Resistance vs Source or Drain Voltage
Dual Supply Operation (TA = 25°C)
Figure 5-1 On-Resistance vs Source or Drain Voltage
TMUX6119 On-Resistance vs Source or Drain Voltage
VDD = 15V, VSS = –15V
Figure 5-3 On-Resistance vs Source or Drain Voltage
TMUX6119 . Leakage Current vs Temperature
VDD = 15V, VSS = –15V
Figure 5-5 . Leakage Current vs Temperature
TMUX6119 Charge Injection vs Source Voltage
TA = 25°C
Figure 5-7 Charge Injection vs Source Voltage

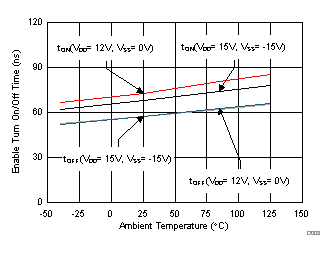

TMUX6119 Enable turn-on and turn-off timeFigure 5-9 Enable turn-on and turn-off time

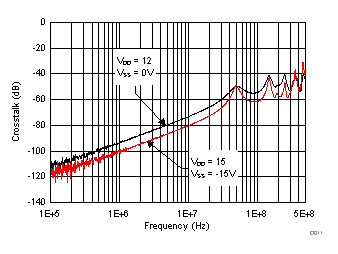

TMUX6119 Crosstalk vs Frequency
TA = 25°C
Figure 5-11 Crosstalk vs Frequency

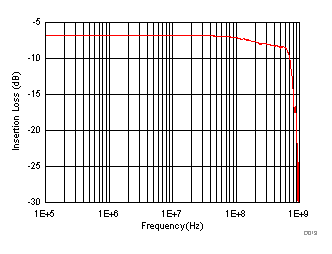

TMUX6119 On Response vs Frequency
VDD = 15V, VSS = –15V, TA = 25°C
Figure 5-13 On Response vs Frequency
TMUX6119 Capacitance vs Source Voltage
VDD = 12V, VSS = 0V, TA = 25°C
Figure 5-15 Capacitance vs Source Voltage
TMUX6119 On-Resistance vs Source or Drain Voltage
Single Supply Operation (TA = 25°C)
Figure 5-2 On-Resistance vs Source or Drain Voltage
TMUX6119 On-Resistance vs Source or Drain Voltage
VDD = 12V, VSS = 0V
Figure 5-4 On-Resistance vs Source or Drain Voltage
TMUX6119 Leakage Current vs Temperature
VDD = 12V, VSS = 0V
Figure 5-6 Leakage Current vs Temperature
TMUX6119 Charge Injection vs Drain Voltage
TA = 25°C
Figure 5-8 Charge Injection vs Drain Voltage
TMUX6119 Off Isolation vs Frequency
TA = 25°C
Figure 5-10 Off Isolation vs Frequency
TMUX6119 THD+N vs Frequency
TA = 25°C
Figure 5-12 THD+N vs Frequency
TMUX6119 Capacitance vs Source Voltage
VDD = 15V, VSS = –15V, TA = 25°C
Figure 5-14 Capacitance vs Source Voltage
TMUX6119 ACPSRR vs Frequency
VDD = 15V, VSS = –15V, TA = 25°C
Figure 5-16 ACPSRR vs Frequency
