5 Pin Configuration and Functions

GUID-EEDC2FF3-C859-4F7E-BEEC-ADC27CAEF573-low.gif Figure 5-1 RHM/RHB Package32-Pin VQFN with PowerPADTop View

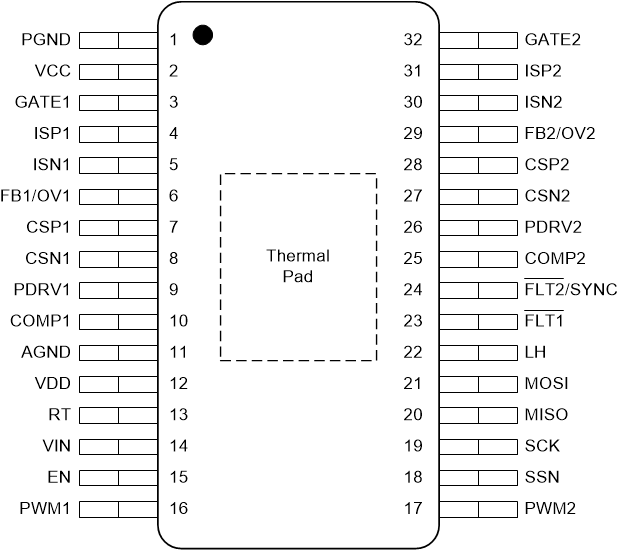

GUID-20200716-CA0I-PBC8-XR4R-P7MQ5T0GBNBZ-low.gif Figure 5-2 DAP Package32-Pin TSSOP with PowerPADTop View
Table 5-1 Pin Functions
PIN I/O(1) DESCRIPTION
NAME VQFN NO. HTSSOP NO.
AGND 30 11 P Signal ground
COMP1 29 10 I/O Connect to an integral or integral-proportional compensation network to ensure stability for channel-1.
COMP2 12 25 I/O Connect to an integral or integral-proportional compensation network to ensure stability for channel-2.
CSN1 27 8 I High-side current sense amplifier input (–) for channel-1
CSN2 14 27 I High-side current sense amplifier input (–) for channel-2
CSP1 26 7 I High-side current sense amplifier input (+) for channel-1
CSP2 15 28 I High-side current sense amplifier input (+) for channel-2
EN 2 15 I Hardware enable. Pull this pin low to enter shutdown.
FB1/OV1 25 6 I/O Connect using a resistor divider to VOUT1 to set OVP threshold (and VOUT in CV mode) for channel-1.
FB2/OV2 16 29 I/O Connect using a resistor divider to VOUT2 to set OVP threshold (and VOUT in CV mode) for channel-2.
FLT1 10 23 O Open-drain fault output for channel-1 (or both channels if PIN-11 is programmed to be SYNC).
FLT2/SYNC 11 24 I/O Dual function pin (programmable) either open-drain fault output for channel-2 or SYNC input
GATE1 22 3 I/O Channel-1 gate driver output for external N-channel FET
GATE2 19 32 I/O Channel-2 gate driver output for external N-channel FET
ISN1 24 5 I Switch current sense input (-) for channel-1. Connect to the GND connection of the external switch-current sense resistor.
ISN2 17 30 I Switch current sense input (-) for channel-2. Connect to the GND connection of the external switch-current sense resistor.
ISP1 23 4 I Switch current sense input (+) for channel-1. Connect to external switch current sense resistor between N-channel FET and ground.
ISP2 18 31 I Switch current sense input (+) for channel-2. Connect to external switch current sense resistor between N-channel FET and ground.
LH 9 22 I Digital input, when set high, the device enters the limp home mode.
MISO 7 20 O SPI slave data output
MOSI 8 21 I SPI slave data input
PDRV1 28 9 I/O Channel-1 P-channel gate driver. Connect to gate of external series P-channel FET switch.
PDRV2 13 26 I/O Channel-2 P-channel gate driver. Connect to gate of external series P-channel FET switch.
PWM1 3 16 I Connect to external PWM signal to enable PWM dimming for channel-1.
PWM2 4 17 I Connect to external PWM signal to enable PWM dimming for channel-2.
PGND 20 1 P Power ground
RT 32 13 I/O Set internal clock frequency by connecting a resistor to ground
SCK 6 19 I SPI clock input
SSN 5 18 I SPI chip select input
VCC 21 2 P 7.5-V low-dropout regulator output
VDD 31 12 P 5-V LDO output
VIN 1 14 P High-voltage input (65 V) to internal LDO
(1) I = input, O = output, P = power
