6.6 Typical Characteristics

TA = 25°C free air, VIN = 14 V, DIV = 2 (CHxDIV = 0x00) unless otherwise specified

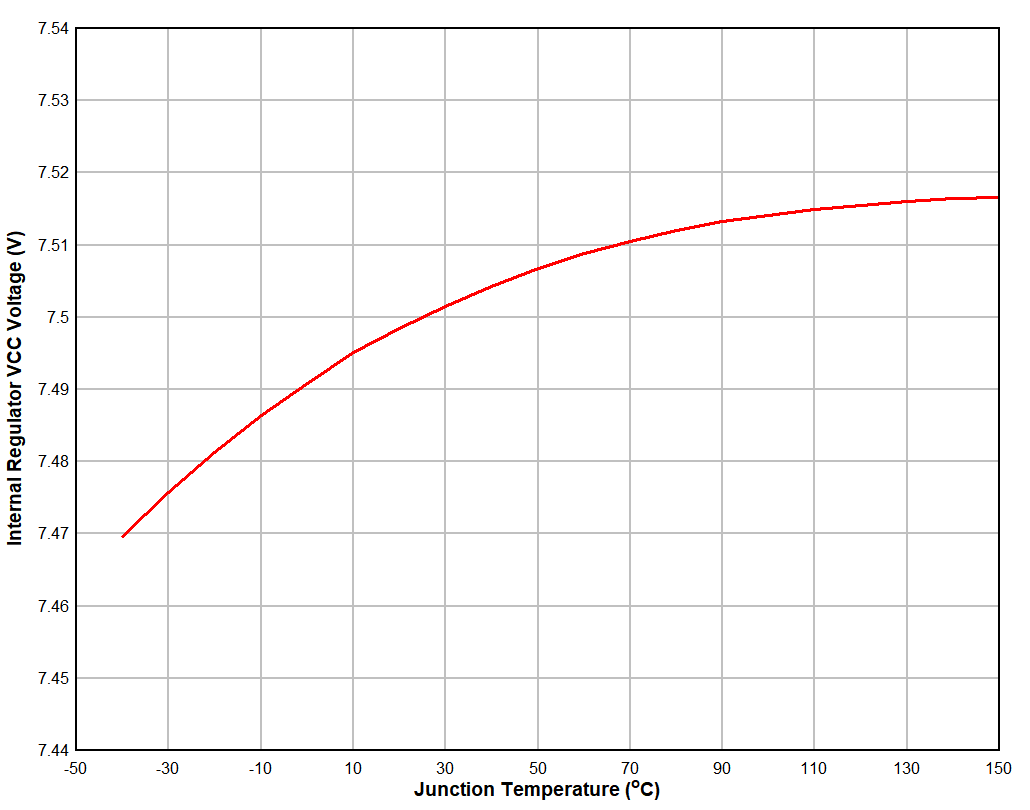

IVCC = 20 mA
Figure 6-1 Regulated VCC Voltage vs Junction Temperature
VIN = 4.5 V, IVCC = 30 mA

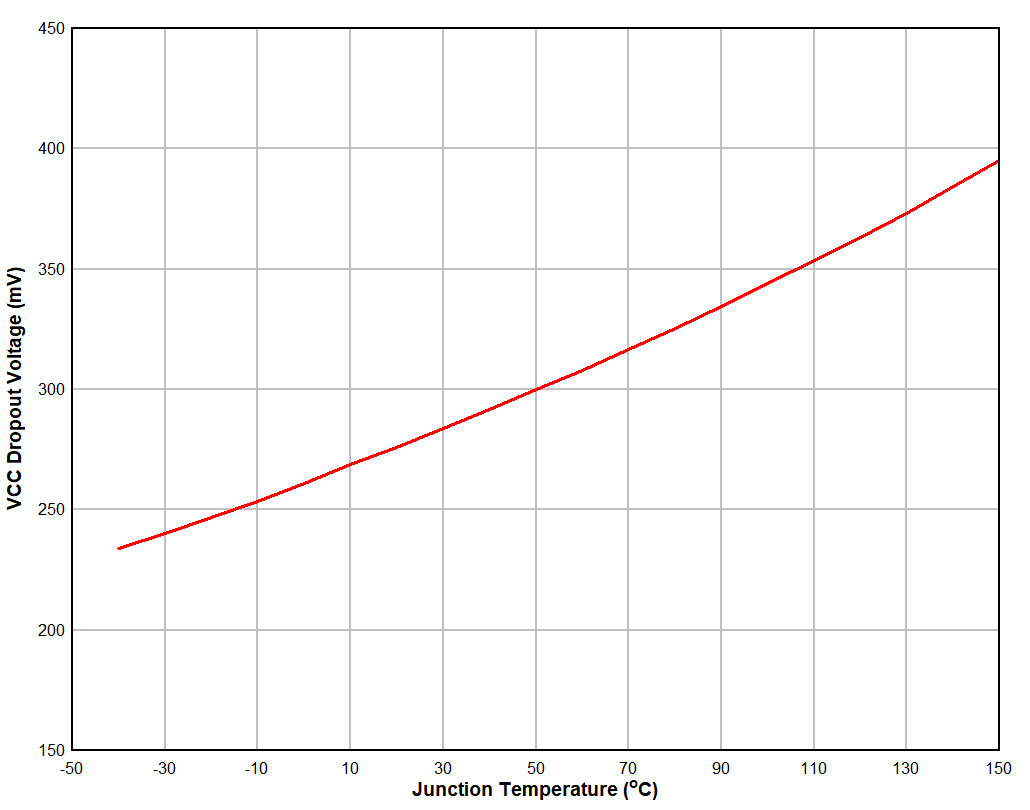

Figure 6-3 VCC Dropout Voltage vs Junction Temperature

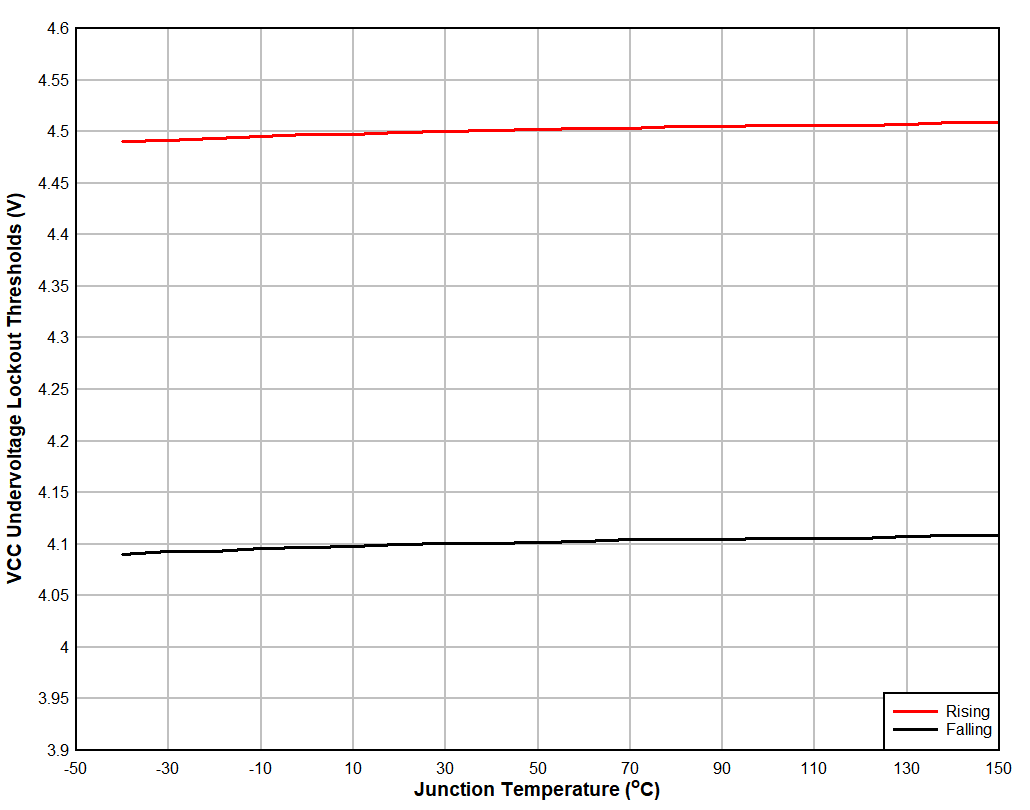

GUID-95823A3A-93DB-490B-B73E-D6C5A0F9BC76-low.gifFigure 6-5 VCC UVLO Threshold vs Junction Temperature
RT = 50 kΩ, CHxDIV = 01
Figure 6-7 Switching Frequency vs Junction Temperature
RT = 50 kΩ, CHxDIV = 01

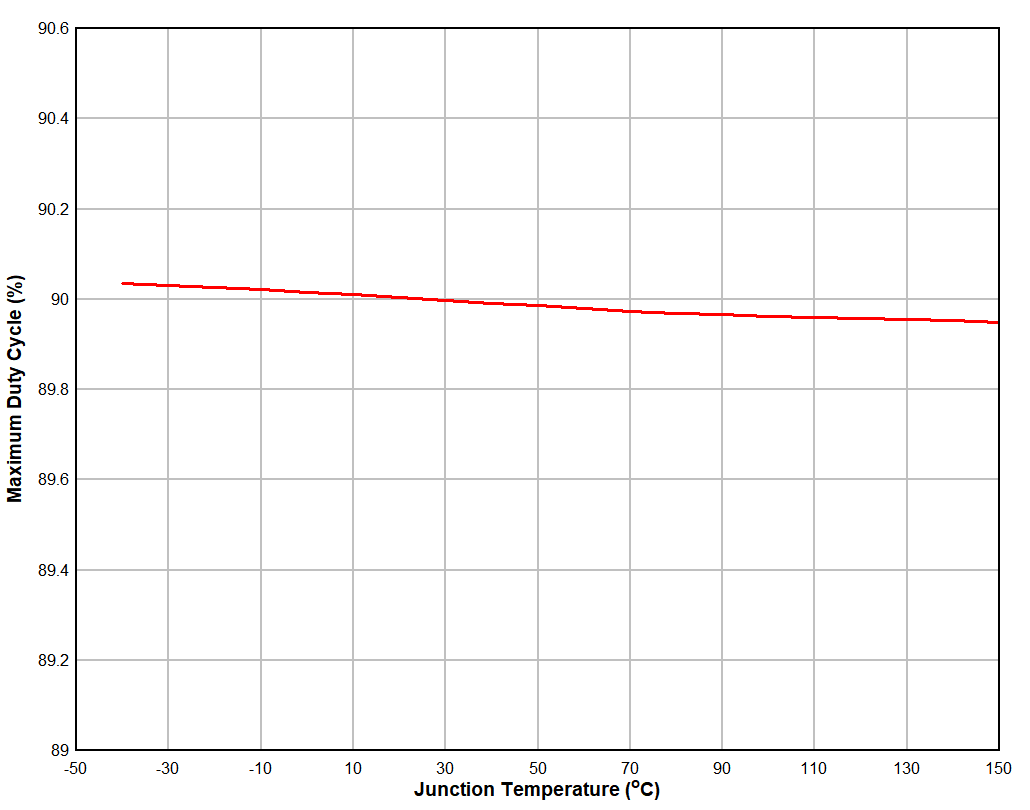

Figure 6-9 Maximum Duty Cycle vs Junction Temperature

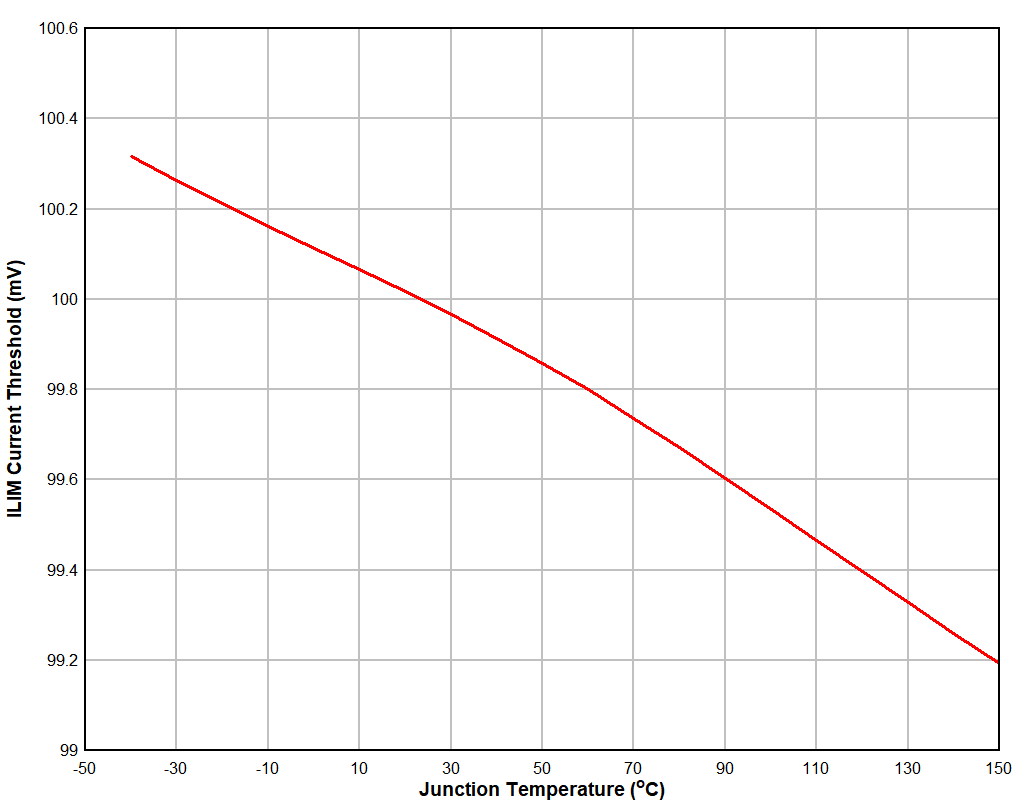

CHxILIM = 01
Figure 6-11 ISP Current Limit Threshold vs Junction Temperature
CHxOV = 111

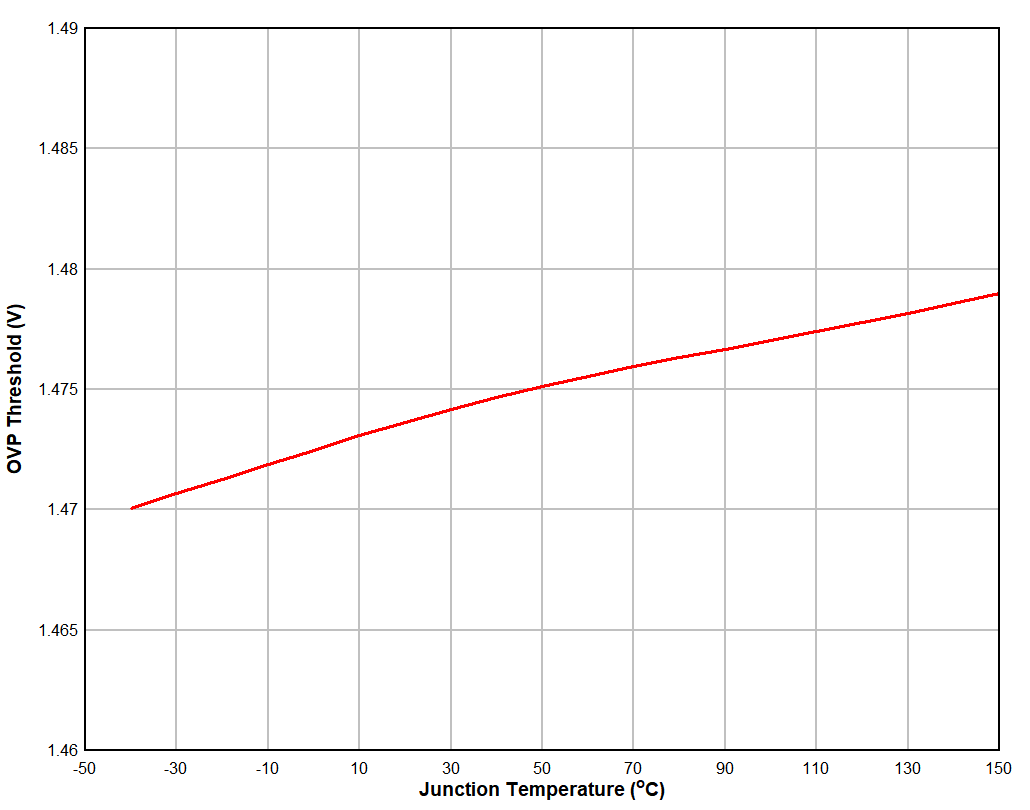

Figure 6-13 Over Voltage Protection Threshold vs Junction Temperature
VCSP = 14 V
Figure 6-15 CSP Pin Input Bias Current vs Junction Temperature

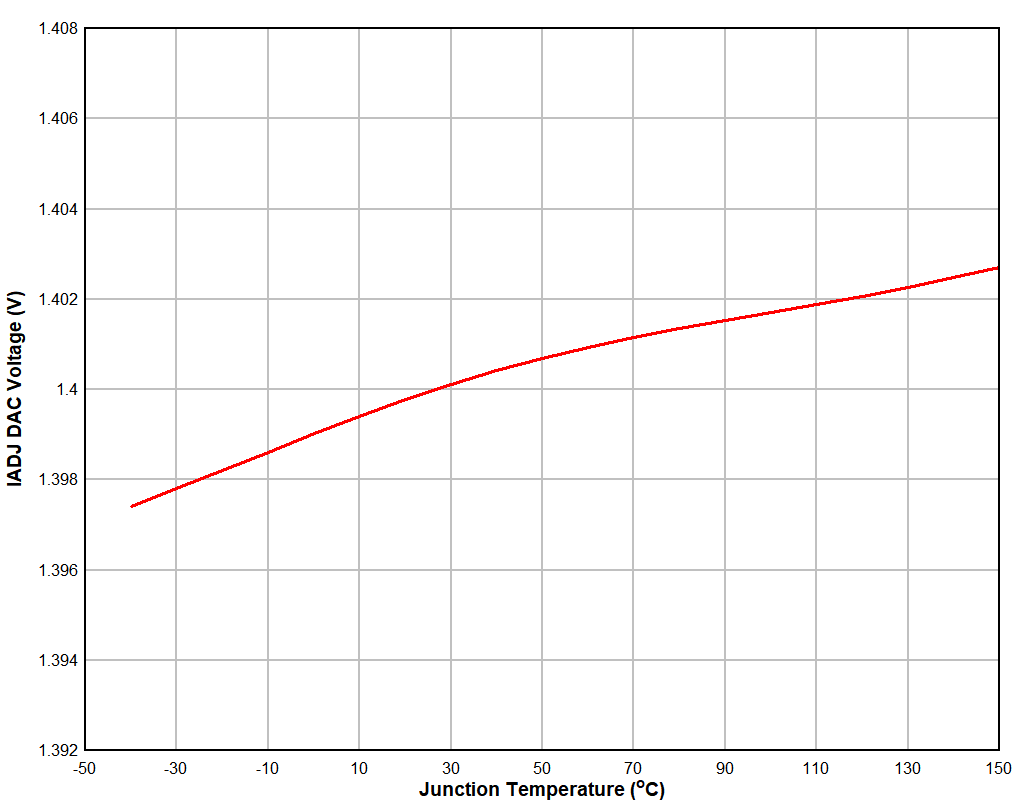

CHxIADJ = FF (hex)

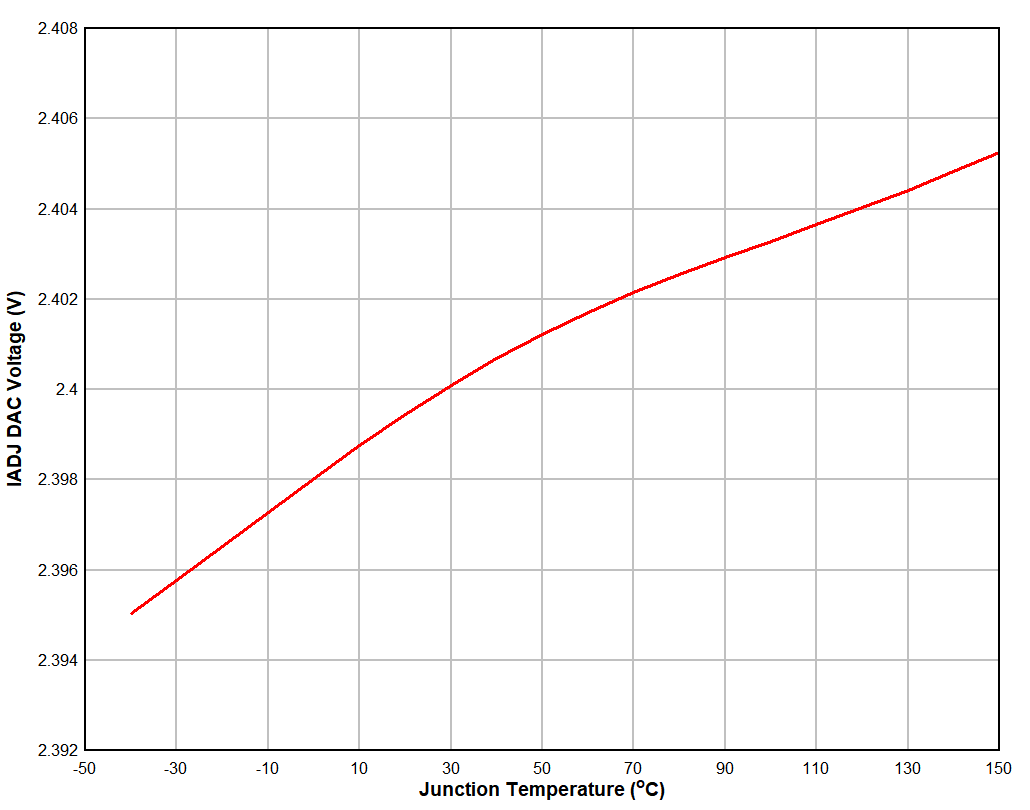

Figure 6-17 VIADJ Voltage vs Junction Temperature

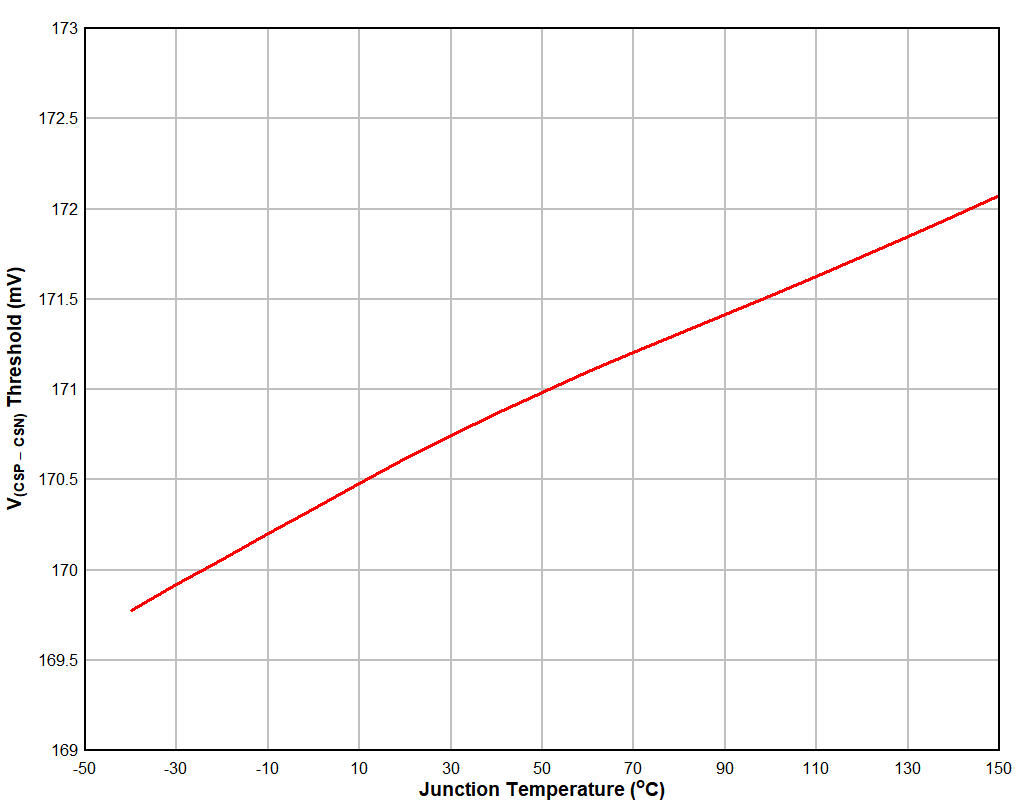

CHxIADJ = FF (hex)
Figure 6-19 V(CSP – VCSN) Voltage vs Junction Temperature
CHxIADJ = 95 (hex)
Figure 6-21 Over Current Protection Gain vs Junction Temperature
IVDD = 20 mA
Figure 6-2 Regulated VDD Voltage vs Junction Temperature

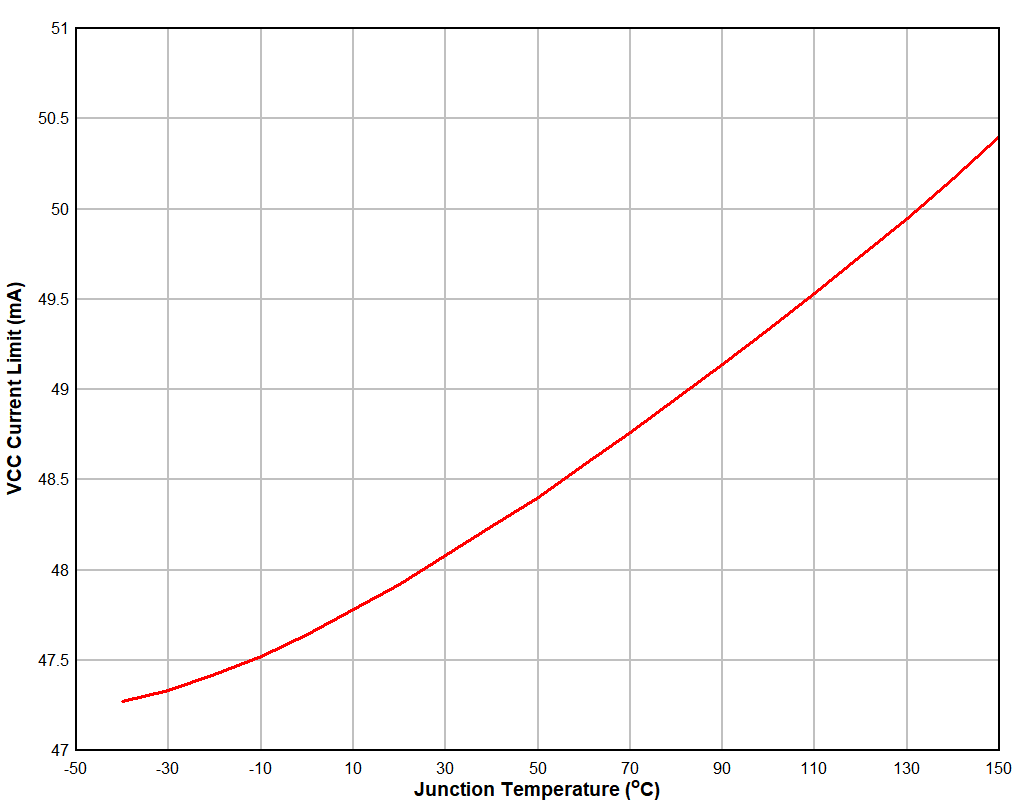

GUID-919FAA06-F0A7-450C-AF43-F4CF1FE4DFC3-low.gifFigure 6-4 VCC Current Limit vs Junction Temperature

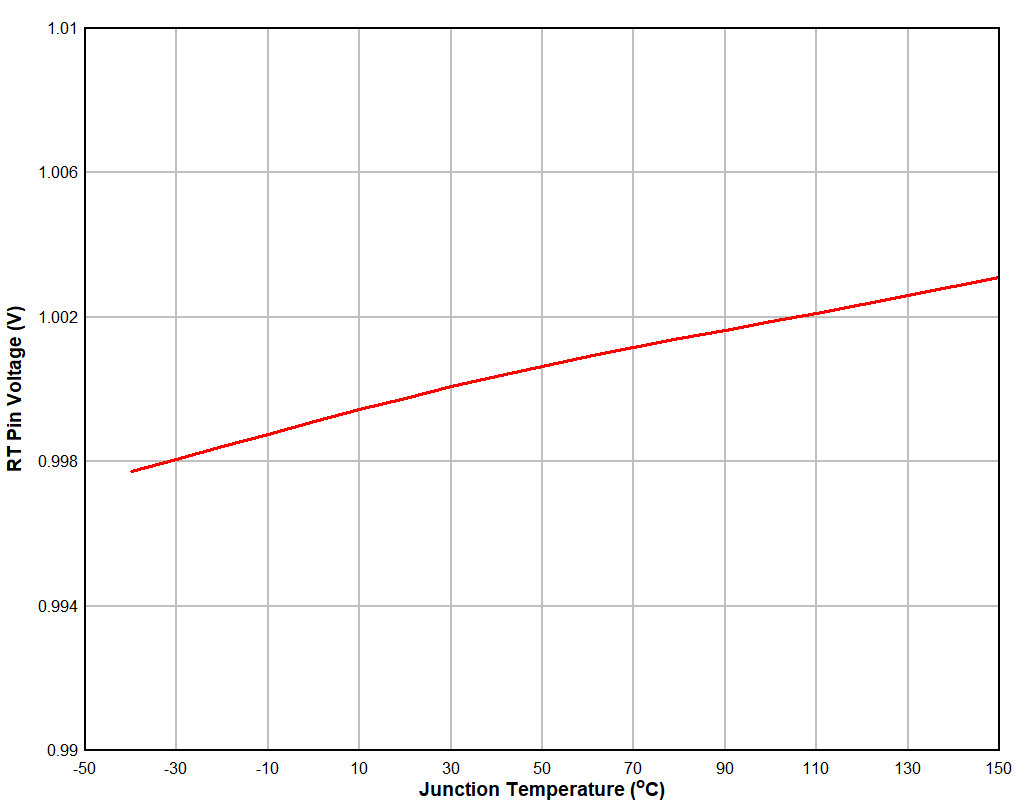

GUID-2DF3FB1B-E9AB-4B1D-B322-C8AD49BAC534-low.gifFigure 6-6 RT Pin Voltage vs Junction Temperature
RT = 100 kΩ, CHxDIV = 01
Figure 6-8 Switching Frequency vs Junction Temperature
CHxILIM = 11
Figure 6-10 ISP Current Limit Threshold vs Junction Temperature
CHxOV = 000

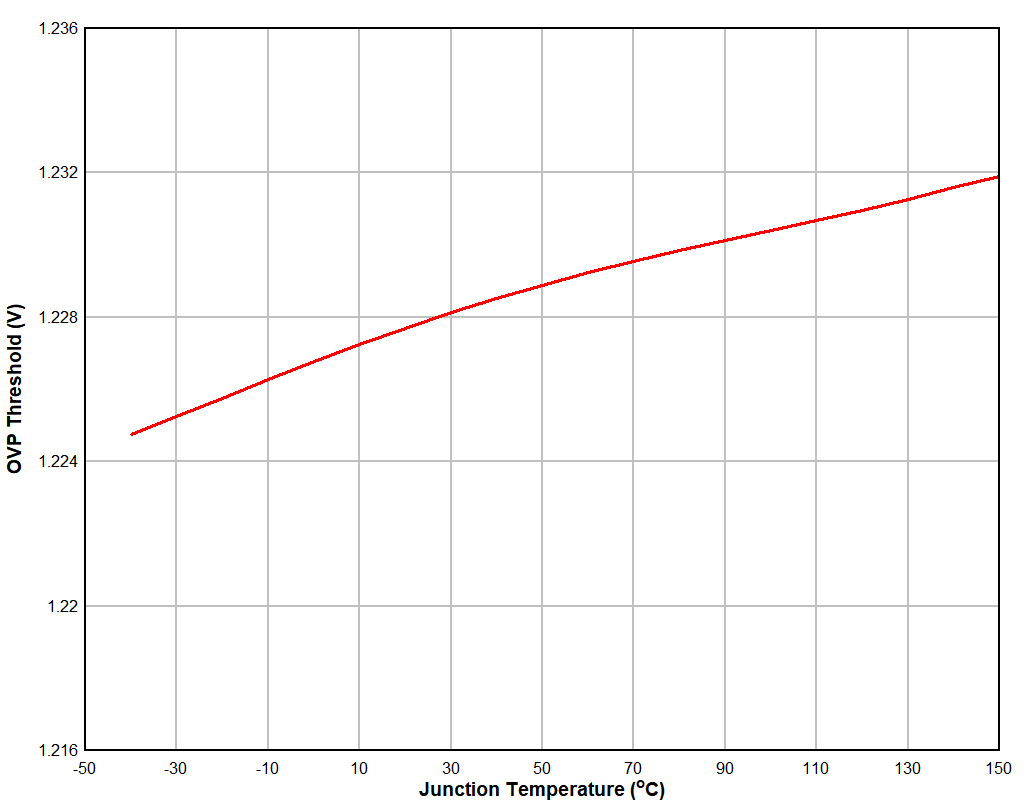

Figure 6-12 Over Voltage Protection Threshold vs Junction Temperature

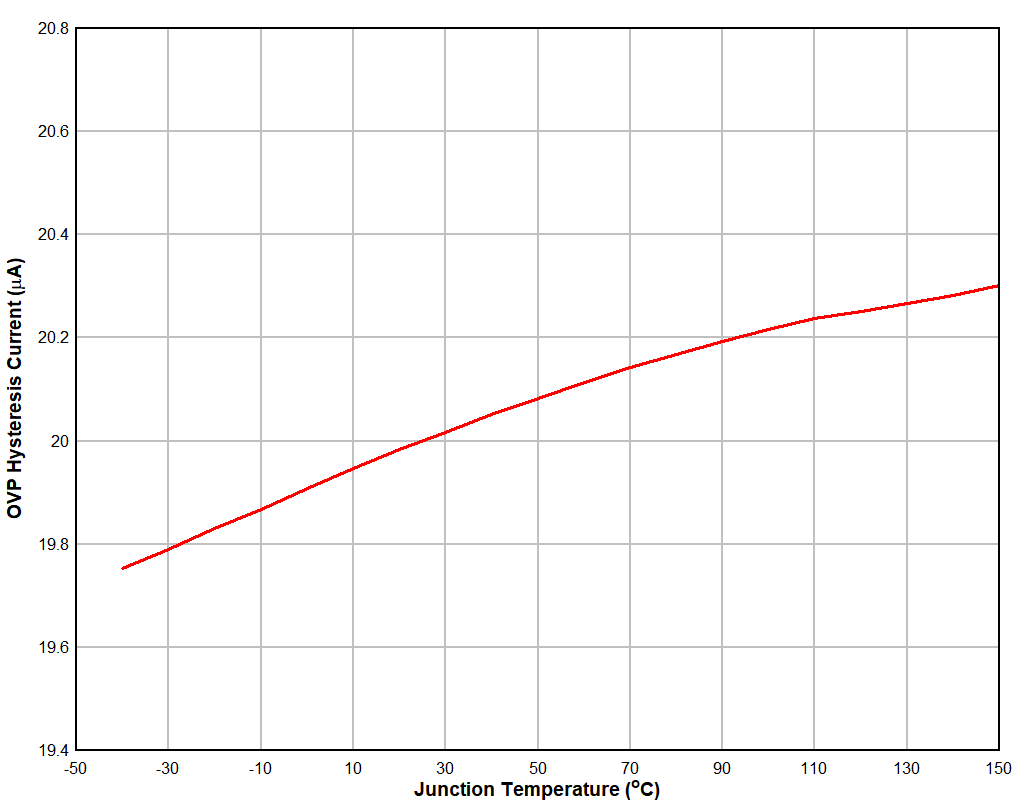

GUID-FA52A266-9A1B-4B47-A62E-CCC6D31EFD62-low.gifFigure 6-14 OVP Hysteresis Current vs Junction Temperature
VCSN = 14 V

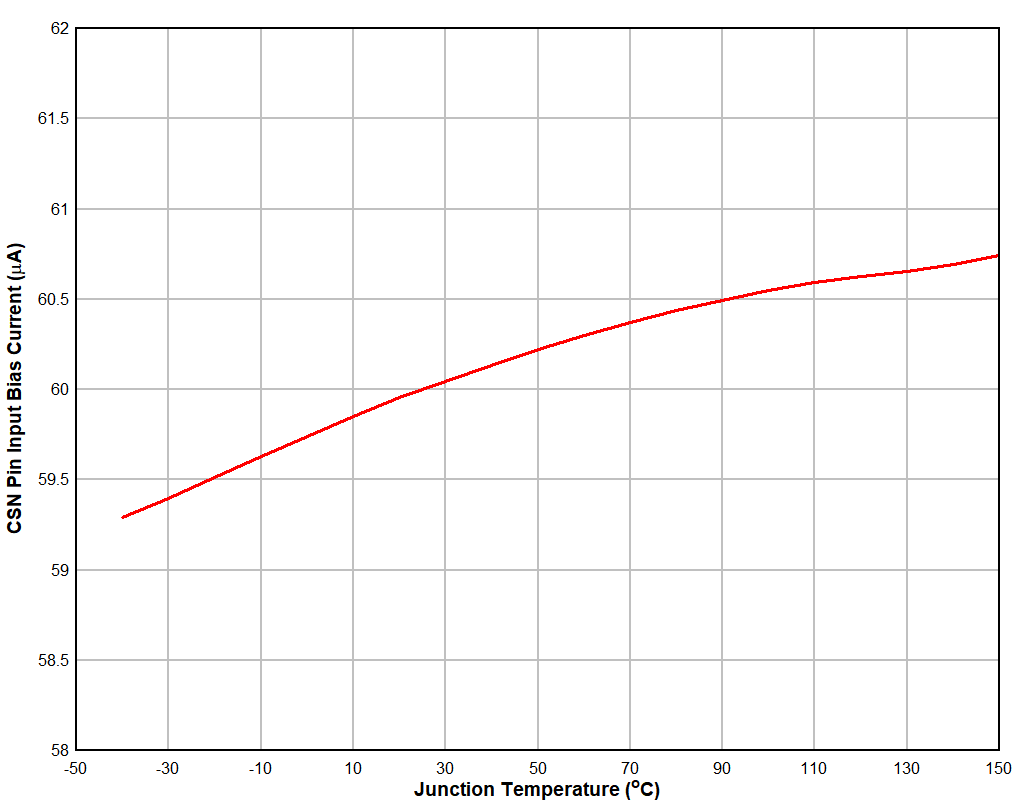

Figure 6-16 CSN Pin Input Bias Current vs Junction Temperature
CHxIADJ = 95 (hex)
Figure 6-18 VIADJ Voltage vs Junction Temperature
CHxIADJ = 95 (hex)
Figure 6-20 V(CSP – VCSN) Voltage vs Junction Temperature
GUID-F7CEFA8B-0838-462D-83B9-C1D98C6BA540-low.gifFigure 6-22 Channel Switching Frequency FSW vs RT Resistance
