10.2 Layout Examples

The layout shown in Figure 20 shows the minimum solution size with only a single voltage setting resistor (R1) as the only additional required component. Figure 21 shows a typical internal PCB layer with a trace connecting the VS+ pin to VOUT near the load.

TPSM84A21 ToplayerMin2.gifFigure 20. Minimum Component Layout

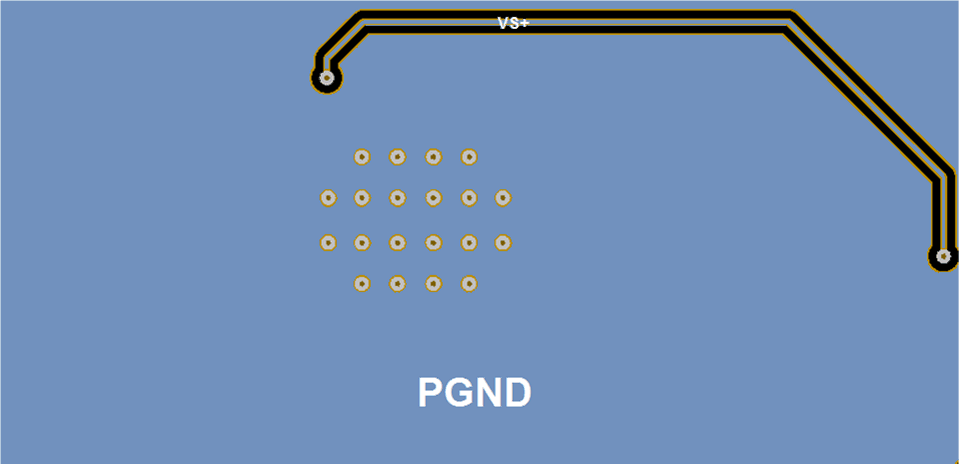

TPSM84A21 Innerlayer.gifFigure 21. VS+ Trace on Internal Layer

Figure 22 shows a layout with the placement of additional ceramic input capacitors (C1, C3) and ceramic output capacitors (C2, C4) for designs that require additional ripple reduction or improved transient response. Figure 23 shows a typical internal PCB layer with a trace connecting the VS+ pin to VOUT near the load

TPSM84A21 Toplayer2.gifFigure 22. Layout with Optional CIN and COUT

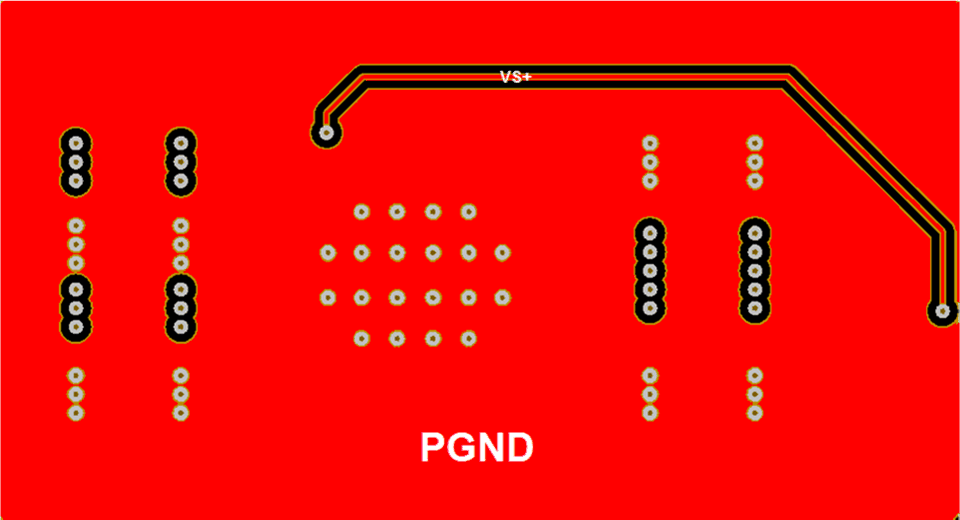

TPSM84A21 Innerlayer2.gifFigure 23. VS+ Trace on Internal Layer
