8.9 Typical Temperature Characteristics

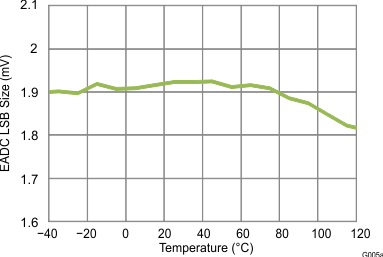

GUID-C19CFA26-3FD3-4A4E-8CAB-5C165973D189-low.gifFigure 8-7 EADC LSB Size With 4X Gain (mV) vs Temperature

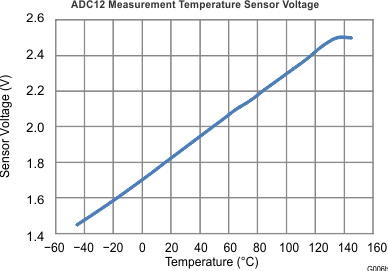

GUID-98626F39-1AF6-4E8D-AA3A-891004E5A220-low.gifFigure 8-9 ADC12 Measurement Temperature Sensor Voltage vs Temperature
GUID-05B1BFD6-479B-4FC6-BB42-6996F5D1D7E3-low.gifFigure 8-11 ADC12 Temperature Sensor Measurement Error vs Temperature
GUID-E5B23D23-34DA-4046-97D6-FFFF778810AE-low.pngFigure 8-8 BP18 Voltage vs Temperature
GUID-7CABF32F-404F-4FEF-B220-DA23D7EC942F-low.gifFigure 8-10 ADC12 2.5-V Reference vs Temperature

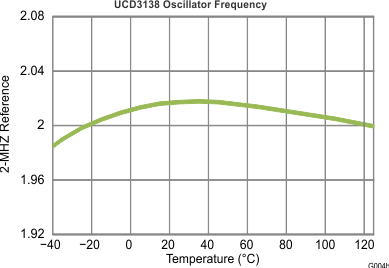

GUID-CA2EB803-961A-4102-BE95-038E315E31F7-low.gifFigure 8-12 UCD3138 Oscillator Frequency (2-MHz Reference, Divided Down from 250 MHz) vs Temperature
