6.15 DLPA200 Interface Timing Requirements

The DLPC200 interface to the DLPA200 consists of a 125 kHz (nominal) serial communications port (SCP).
PARAMETER MIN TYP MAX UNIT
ƒclock Clock frequency 125 125 kHz
tp_clkper Clock period 8 us
tp_wh Pulse duration low 4 us
tp_wl Pulse duration high 4 us
tp_su SCPDI setup time 7.3 ns
tp_h SCPDI hold time 5.7 ns

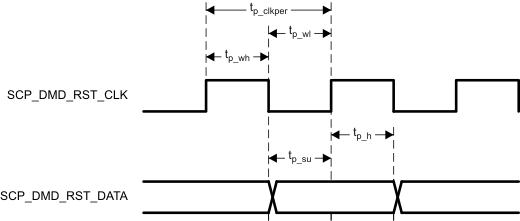

DLPC200 DAD_IF_LPS014.gifFigure 10. DLPA200 I/F Timing
