Normal Conditions

For normal condition tests, there are no connections to the load card. This reference design is connected with both high-voltage and low-voltage power supplies. The high battery voltage was varied to measure the performance of analog circuit.

GUID-94665D15-C275-4043-A82F-98734B5BCB6E-low.gifFigure 3-7 Normal Conditions 400 V
CH1: ISO_POS
CH2: ISO_NEG
CH3: RELAY_NEG
CH4: RELAY_POS
GUID-08E64D5D-F18B-450D-BB69-CABD353E7D90-low.gifFigure 3-8 Normal Conditions 350 V
CH1: ISO_POS
CH2: ISO_NEG
CH3: RELAY_NEG
CH4: RELAY_POS
GUID-DCB44D01-21D4-4D56-BCBA-A357243D1C1B-low.gifFigure 3-9 Normal Conditions 300 V
CH1: ISO_POS
CH2: ISO_NEG
CH3: RELAY_NEG
CH4: RELAY_POS
GUID-945E1D74-5FE7-4F03-8328-C35B2ECA18F4-low.gifFigure 3-10 Normal Conditions 200 V
CH1: ISO_POS
CH2: ISO_NEG
CH3: RELAY_NEG
CH4: RELAY_POS

Table 3-1 lists the voltage measurements at different points of the board.

Table 3-1 Measurements at Normal Condition
HV BATTERY VOLTAGE
(SUPPLIED AND MEASURED)
MEASURED REFERENCE VOLTAGEPEAK ISO_POS VOLTAGEPEAK ISO_NEG VOLTAGE
100.0062.5052.2952.714
150.0082.5042.192.819
200.0032.5042.0862.923
250.0042.5041.9823.027
300.0042.5041.8783.131
350.0042.5041.7743.235
400.0062.5041.6693.34
450.0072.5041.5653.444

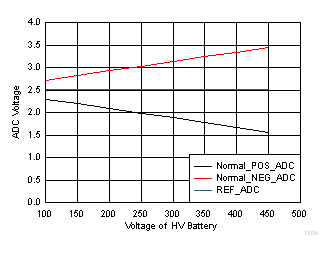

GUID-3DC7004C-E33A-417B-AEE2-7A418438BBE5-low.gifFigure 3-11 Behavior of Isolation Analog Outputs
