3.2.2.6 Isolation Error at the Middle of an HV Battery Voltage

An error condition is created at the middle of the HV battery voltage to chassis ground. To understand the behavior of error conditions, measurements were performed at different battery voltages.

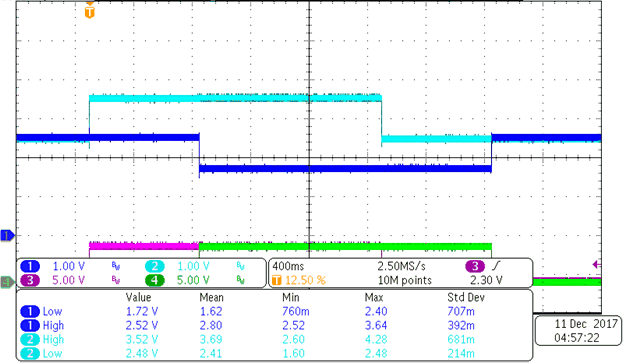

GUID-7B0A58B7-AFE2-42D2-9243-D1095E64F320-low.gifFigure 3-24 Isolation Error at 225 V for 450-V Battery
Battery voltage = 450 V, isolation error = 225 V
CH1: ISO_POS
CH2: ISO_NEG
CH3: RELAY_NEG
CH4: RELAY_POS
Table 3-6 Measurements at Middle of HV Battery
HV BATTERY VOLTAGE
(SUPPLIED AND MEASURED)		 MEASURED REFERENCE VOLTAGE MEASURED PEAK ISO_POS VOLTAGE MEASURED PEAK ISO_NEG VOLTAGE
100.006 2.505 2.398 2.817
150.008 2.504 2.295 2.921
200.003 2.504 2.191 3.025
250.004 2.504 2.088 3.129
300.004 2.504 1.98 3.233
350.004 2.504 1.876 3.338
400.006 2.504 1.778 3.442
450.007 2.504 1.667 3.537
GUID-DD74C326-FAEB-4BD5-AB43-C7E90E8C7736-low.gifFigure 3-25 Behavior for Isolation Error at Middle of HV Battery

Figure 3-25 shows the deviations for POS ADC and NEG ADC voltages from normal conditions. POS and NEG are slight different and constant when relays are closed. This behavior resonates to an isolation error from the high-voltage section to chassis ground.

The circuit behavior changes when there is an isolation error. Figure 3-26 shows more information about the type of isolation errors and the impacts at different battery voltages.

GUID-1F7E8802-1C41-4873-8977-AF7DAF446378-low.gif Figure 3-26 Behavior for Various Isolation Errors
