2.1.2 100-Pin PZ Migration for New PCB Design

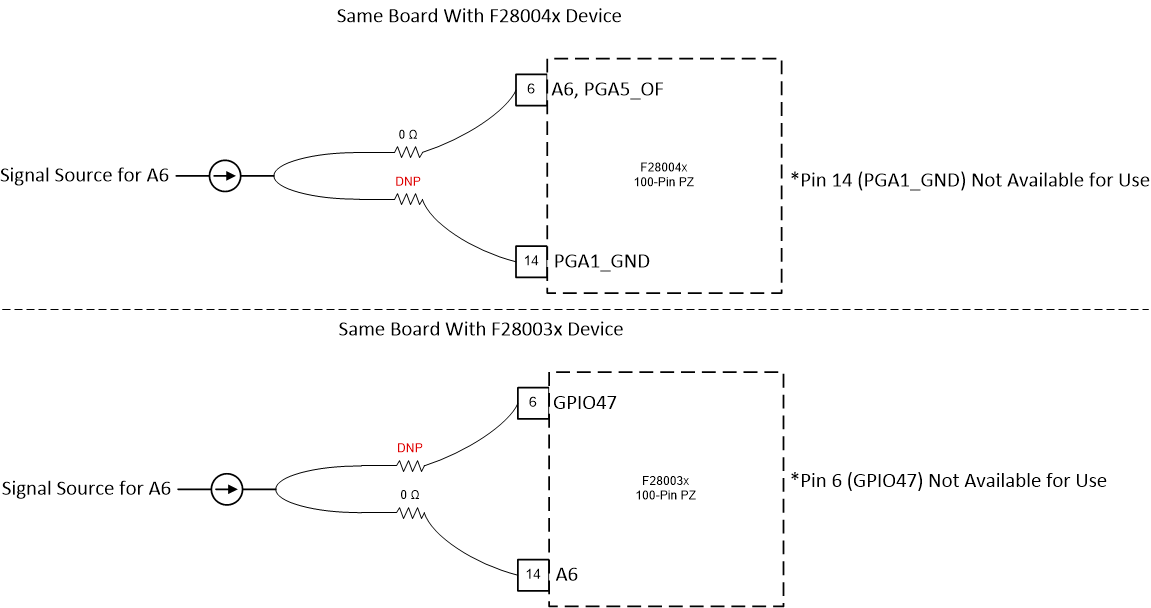

If the PCB is yet to be designed and you are moving from F28004x/F28003x to F28003x/F28004x, respectively, the dual routing technique illustrated in Figure 2-2 maximizes pin utilization. The complete pin migration is outlined in Table 2-2.

GUID-20201016-CA0I-WFMR-R0PV-BDKVBSRVGPMW-low.gif Figure 2-2 Dual Routing Technique Illustrated

For the color legend, see Figure 2-1.

Table 2-2 100-Pin PZ Migration Between F28004x and F28003x For New PCB Design
Pin No Pin Name Transition Type Action
F28004x F28003x F28003x to F28004x F28004x to F28003x
Minor Incompatibility - Signals in Common (1)
28 PGA6_IN, C5 C5, A12 Common Analog Channel Use C5
31 PGA4_IN, C3 C3, A7 Use C3
36 A4, B8, PGA2_OF A4, B8 Use A4 or B8
37 A8, PGA6_OF A8 Use A8
39 B4, C8, PGA4_OF B4, C8 Use B4 or C8
40 A10, B1, C10, PGA7_OF A10, B1, C10 Use A10, B1 or C10
21 C2 C2, B12 Use C2
22 A1, DACB_OUT A1, DACB_OUT, B7 Use A1 or DACB_OUT
41 B0 B0, C11 Use B0
69 X1 GPIO19, X1 Common Clock GPIO19 not available for use
81 GPIO23_VSW GPIO23 Common GPIO Do not use DCDC. GPIO22 & GPIO23 available for use
83 GPIO22_VFBSW GPIO22
Medium Incompatibility - Different Signals, Same Type
19 C0 A14, B14, C4 Analog Function Compatible Update code to C0 Update code to A14, B14 or C4
85 GPIO40 GPIO44 GPIO Function Compatible Update code to GPIO40 Update code to GPIO44
91 GPIO39 GPIO61 Update code to GPIO39 Update code to GPIO61
Medium Incompatibility - Dual Routing
6 A6, PGA5_OF GPIO47 Dual PCB Route, F28004x 0-Ohm Resistor, F28003x DNP Dual route to Pin 6 & 14
7 B2, C6, PGA3_OF GPIO48 Dual route to Pin 7 & 15
8 B3, VDAC GPIO49 Dual route to Pin 8 & 16
9 A2, B6, PGA1_OF GPIO50 Dual route to Pin 9 & 17
10 A3 GPIO51 Dual route to Pin 10 & 18
14 PGA1_GND A6 Dual PCB Route, F28004x DNP, F28003x 0-Ohm Resistor Dual route to Pin 6 & 14
15 PGA3_GND B2, C6 Dual route to Pin 7 & 15
16 PGA5_IN B3, VDAC Dual route to Pin 8 & 16
17 C4 A2, B6, C9 Dual route to Pin 9 & 17
18 PGA1_IN C7, B9, A3 Dual route to Pin 10 & 18
Major Incompatibility - Different Signals and Types
32 PGA6_GND, PGA2_GND, PGA4_GND B5 PGA Ground to ADC Channel Tie to VSS
42 PGA7_GND C14
13 PGA5_GND GPIO54 PGA Ground to GPIO Tie to VSS through 0-Ohm resistor. Depopulate resistor when using F28003x and enable internal pull-up for the GPIOs
12 VSSA GPIO53 Ground to GPIO
82 VSS_SW GPIO41
11 VDDA GPIO52 Power to GPIO Tie to VDDIO through 0-Ohm resistor. Depopulate resistor when using F28003x and enable internal pull-up for the GPIOs
80 VDDIO_SW GPIO40
20 PGA3_IN A11, B10, C0 PGA Input to ADC Channel No connect. Enable internal pull-up for the GPIOs on F28003x
30 PGA2_IN B11
43 PGA7_IN GPIO55 PGA Input to GPIO
44 C14 GPIO60 Analog to GPIO
48 FLT2 GPIO20, B5 Flash Test Pins to GPIO
49 FLT1 GPIO21, B11
  1. Channel to use selected in software.
