4.2 EVM Operation

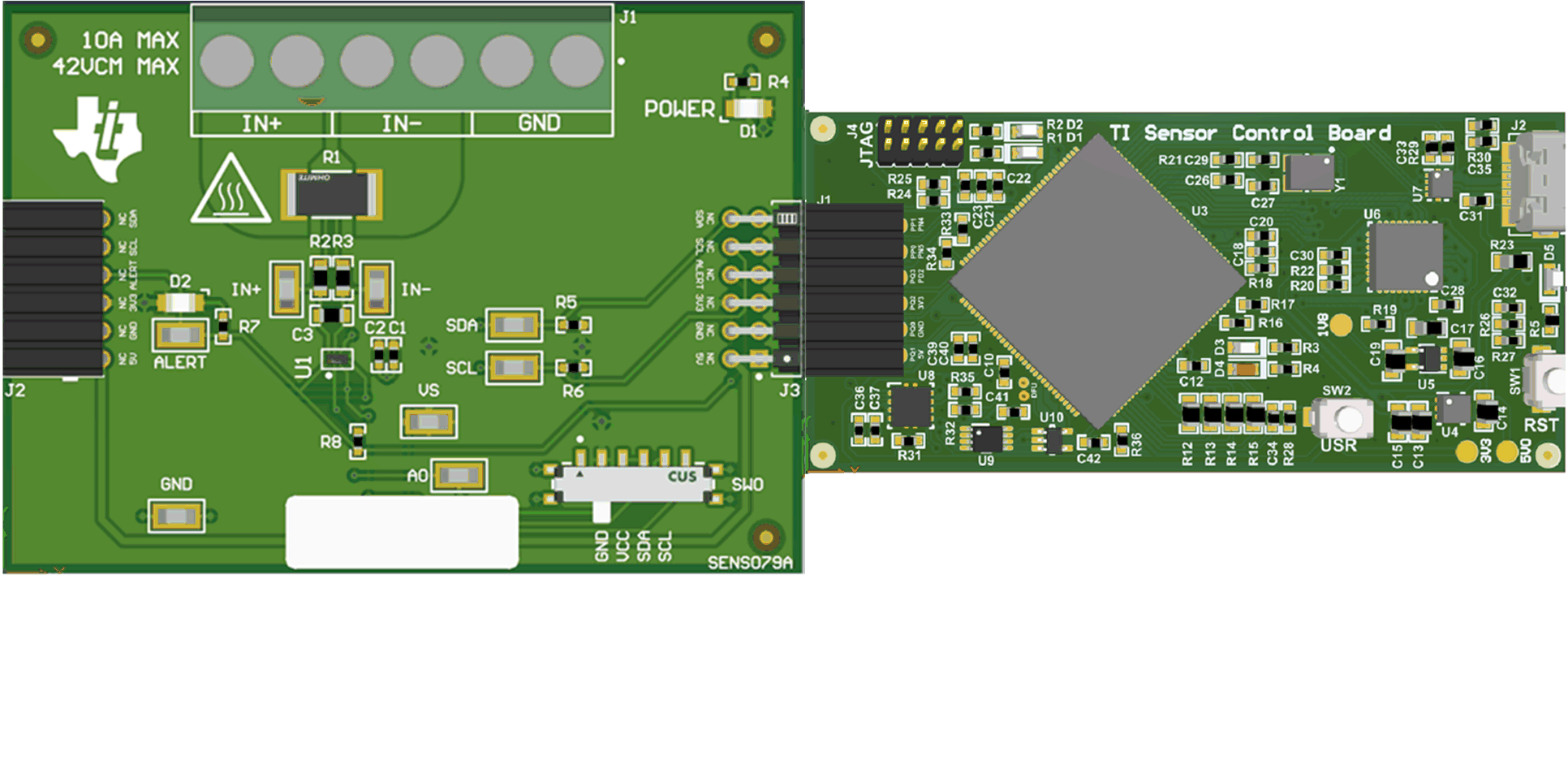

To use the EVM with the SCB Controller (sold separately), connect the EVM as shown in Figure 4-1.

GUID-20210423-CA0I-845B-H9PL-9PGZKTPBXJSC-low.gifFigure 4-1 EVM Connected to SCB Controller

If using multiple EVMs, connect them as shown in Figure 4-2. Make sure to use a different chip address for each device. The GUI only supports one EVM/device type at a time.

GUID-20210423-CA0I-GQJN-BDPV-DJPFKXMH2JWH-low.gifFigure 4-2 Multiple EVMs Connected to SCB Controller
