6.10 Typical Characteristics

at TA = 25°C, VDD = 5V (unless otherwise noted)

TMUX1308A TMUX1309A On-Resistance vs Temperature
VDD = 5V
Figure 6-1 On-Resistance vs Temperature
TMUX1308A TMUX1309A On-Resistance vs Temperature
VDD = 2.5V
Figure 6-3 On-Resistance vs Temperature
TMUX1308A TMUX1309A Supply Current vs Logic VoltageFigure 6-5 Supply Current vs Logic Voltage
TMUX1308A TMUX1309A Supply Current vs Input Switching Frequency
TA = 25°C
Figure 6-7 Supply Current vs Input Switching Frequency
TMUX1308A TMUX1309A TTRANSITION vs Supply Voltage
TA = 25°C
Figure 6-9 TTRANSITION vs Supply Voltage

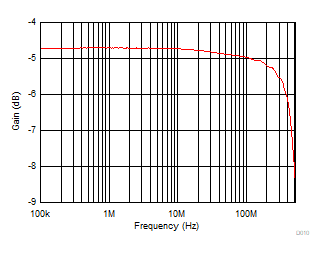

TMUX1308A TMUX1309A On Response vs Frequency
TA = 25°C
Figure 6-11 On Response vs Frequency
TMUX1308A TMUX1309A Injection Current vs Maximum Output Voltage Shift
VS = (VDD/2), TA = 25°C
Figure 6-13 Injection Current vs Maximum Output Voltage Shift
TMUX1308A TMUX1309A On-Resistance vs Temperature
VDD = 3.3V
Figure 6-2 On-Resistance vs Temperature
TMUX1308A TMUX1309A On-Resistance vs Source or Drain Voltage
TA = 25°C
Figure 6-4 On-Resistance vs Source or Drain Voltage
TMUX1308A TMUX1309A Capacitance vs Source Voltage
VDD = 3.3V
Figure 6-6 Capacitance vs Source Voltage
TMUX1308A TMUX1309A TON(EN) and TOFF(EN) vs Temperature
VDD = 3.3V
Figure 6-8 TON(EN) and TOFF(EN) vs Temperature
TMUX1308A TMUX1309A TTRANSITION vs Temperature
TA = 25°C
Figure 6-10 TTRANSITION vs Temperature
TMUX1308A TMUX1309A Xtalk and Off-Isolation vs Frequency
TA = 25°C , VDD = 3.3V
Figure 6-12 Xtalk and Off-Isolation vs Frequency
