Innovations in reducing low-frequency emissions
Look at a few techniques that TI uses when building its converters and controllers to address the fundamental trade-offs involving efficiency, EMI, size and cost.
Figure 7 EMI plots of square waveforms with different rise times.

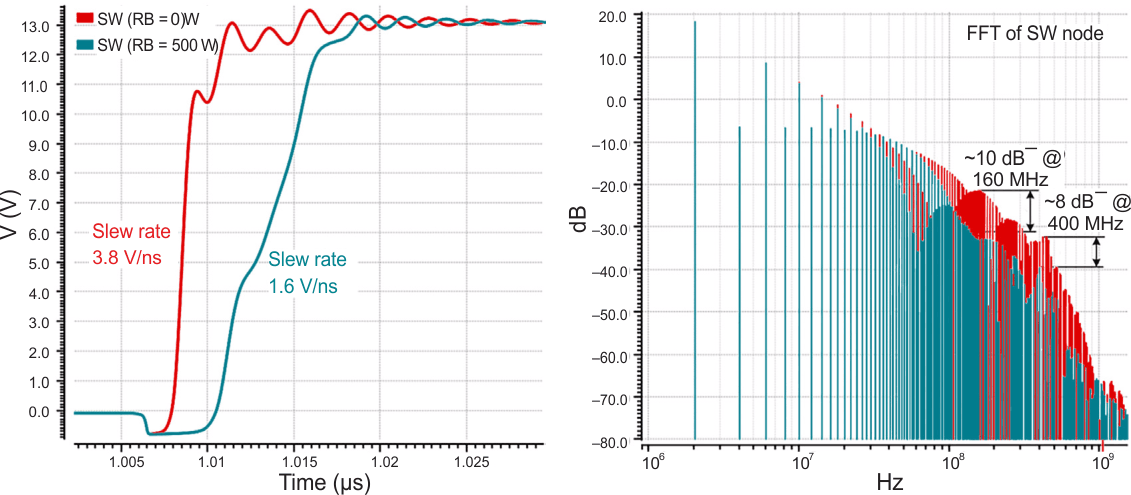

Figure 8 The effect of different switch-node slew rates and associated ringing on
high-frequency emissions. Reduced slew rates impact EMI roll-off in the 30- to
200-MHz band while the reduced ringing impacts EMI at the ringing frequency
around 400 MHz.
