2.4.1 Non-Burst Mode With Sync Pulses

  • The DSI transmitter must convey accurate DPI-type timing for the HSS, HSE, VSS, and VSE packets, as well as the pixel transmission rate for each active line to match the desired video timing.
  • All video timing can be extracted from the DSI packet stream directly including sync widths and porch widths
  • The output pixel rate can be defined by the DSI clock rate in continuous clock mode or by the REFCLK source applied to the DS90UB941AS-Q1

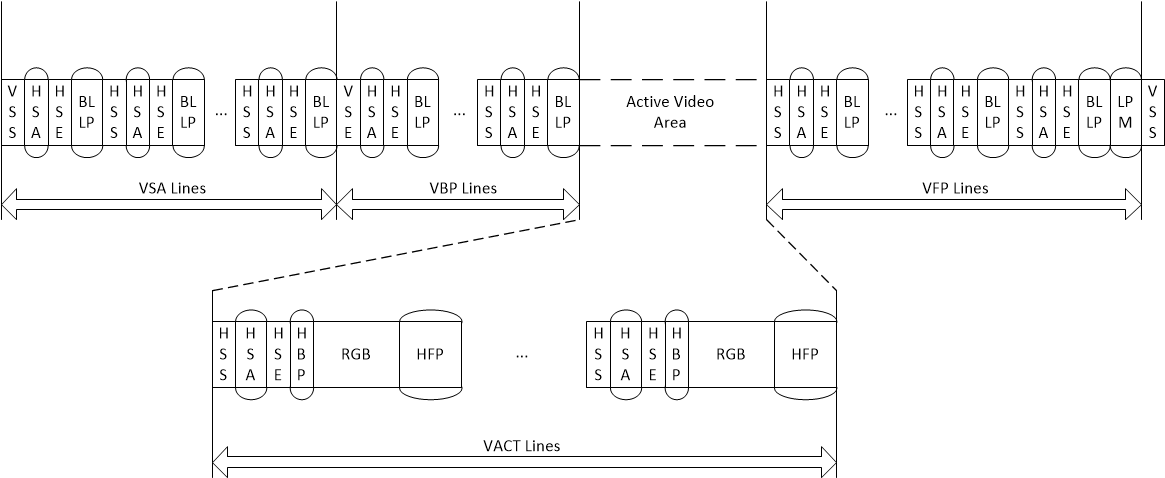

GUID-20200818-CA0I-PLZQ-LRRF-0PRXS99FXZS8-low.gif Figure 2-1 Non-Burst Mode with Sync Pulses Packet Structure.
