2.2 Flashing eMMC User Partition

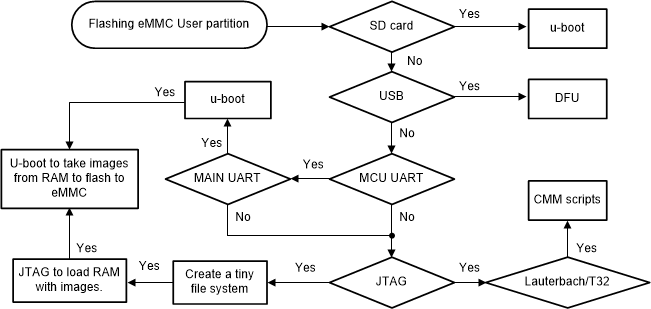

Figure 2-3 is useful to decide which software tools can be used flash the file system in eMMC user partitions given the hardware constraints on the TDA4 custom board.

For example, in a case where the customer wants to flash the eMMC user partition, Figure 2-3 clearly directs the hardware designer that MAIN UART will be required for Software Development in case JTAG interface, USB and SD card interface is not available.

GUID-20210624-CA0I-HKTW-WCZK-8FPBNFXS06TD-low.gif Figure 2-3 Flashing eMMC User Partition
