4.2.2 System Test With Static Object
The test involves detecting an object at approximately 1m from the sensor. Both captures with LDO and LC filter schemes are shown below. No major degradation in the signal power is detected as shown below.

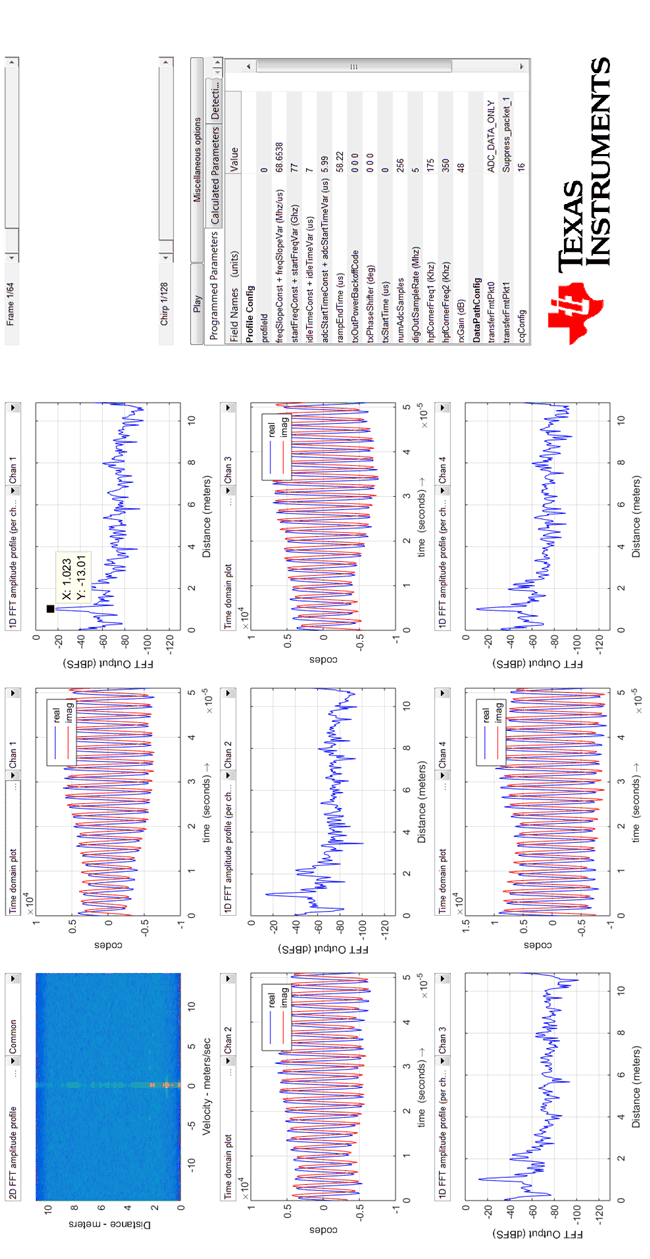

Figure 4-2 Capture With LDO Scheme, RX Gain-48dB
Figure 4-3 Capture With LDO Scheme, RX Gain-30dB
Figure 4-4 Capture With LC Filter Scheme, RX Gain-48dB
Figure 4-5 Capture With LC Filter Scheme, RX Gain-30dBTable 4-6 SNR Comparison Between LDO and LC Filter Scheme for RX Gain = 30 and 48
| PM Scheme | RX Gain(dB) | SNR(dB)-RBW 152.6Hz |
|---|---|---|
| LDO | 30 | 81.93 |
| 48 | 83.9 | |
| LC Filter | 30 | 79.6 |
| 48 | 81.9 |
