6.10.5.16.6.2 PRU_ICSSG MII Timing
Note:

In order to ensure the MII_G_RT I/O timing values published in the device data sheet, the PRU_ICSSG ICSSGn_CORE_CLK (where n = 0 to 1) core clock must be configured for 200MHz, 225MHz, or 250MHz and the TX_CLK_DELAYn (where n = 0 or 1) bit field in the ICSSG_TXCFG0/1 register must be set to 0h (default value).

Table 6-131, Table 6-132, Figure 6-104, Table 6-133, Figure 6-105, Table 6-134, Figure 6-106, Table 6-135, and Figure 6-107 present timing conditions, requirements, and switching characteristics for PRU_ICSSG MII.

Table 6-131 PRU_ICSSG MII Timing Conditions
PARAMETER MIN MAX UNIT
INPUT CONDITIONS
SRI Input slew rate 0.9 3.6 V/ns
OUTPUT CONDITIONS
CL Output load capacitance 2 20 pF

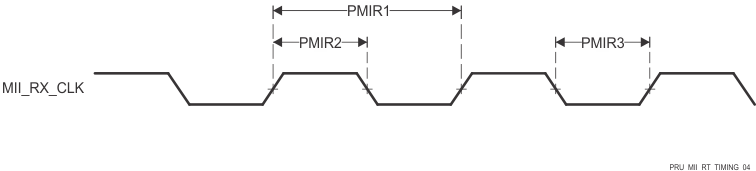

Table 6-132 PRU_ICSSG MII Timing Requirements – MII[x]_RX_CLK see Figure 6-104
NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
PMIR1 tc(RX_CLK) Cycle time, MII[x]_RX_CLK 10Mbps 399.96 400.04 ns
100Mbps 39.996 40.004 ns
PMIR2 tw(RX_CLKH) Pulse Duration, MII[x]_RX_CLK High 10Mbps 140 260 ns
100Mbps 14 26 ns
PMIR3 tw(RX_CLKL) Pulse Duration, MII[x]_RX_CLK Low 10Mbps 140 260 ns
100Mbps 14 26 ns
AM2434 AM2432 AM2431 PRU_ICSSG MII[x]_RX_CLK Timing Figure 6-104 PRU_ICSSG MII[x]_RX_CLK Timing
Table 6-133 PRU_ICSSG MII Timing Requirements – MII[x]_RXD[3:0], MII[x]_RX_DV, and MII[x]_RX_ER see Figure 6-105
NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
PMIR4 tsu(RXD-RX_CLK) Setup time, MII[x]_RXD[3:0] valid before MII[x]_RX_CLK 10 Mbps 8 ns
tsu(RX_DV-RX_CLK) Setup time, MII[x]_RX_DV valid before MII[x]_RX_CLK 8 ns
tsu(RX_ER-RX_CLK) Setup time, MII[x]_RX_ER valid before MII[x]_RX_CLK 8 ns
tsu(RXD-RX_CLK) Setup time, MII[x]_RXD[3:0] valid before MII[x]_RX_CLK 100 Mbps 8 ns
tsu(RX_DV-RX_CLK) Setup time, MII[x]_RX_DV valid before MII[x]_RX_CLK 8 ns
tsu(RX_ER-RX_CLK) Setup time, MII[x]_RX_ER valid before MII[x]_RX_CLK 8 ns
PMIR5 th(RX_CLK-RXD) Hold time, MII[x]_RXD[3:0] valid after MII[x]_ RX_CLK 10 Mbps 8 ns
th(RX_CLK-RX_DV) Hold time, MII[x]_RX_DV valid after MII[x]_RX_CLK 8 ns
th(RX_CLK-RX_ER) Hold time, MII[x]_RX_ER valid after MII[x]_RX_CLK 8 ns
th(RX_CLK-RXD) Hold time, MII[x]_RXD[3:0] valid after MII[x]_ RX_CLK 100 Mbps 8 ns
th(RX_CLK-RX_DV) Hold time, MII[x]_RX_DV valid after MII[x]_RX_CLK 8 ns
th(RX_CLK-RX_ER) Hold time, MII[x]_RX_ER valid after MII[x]_RX_CLK 8 ns
AM2434 AM2432 AM2431 PRU_ICSSG MII[x]_RXD[3:0], MII[x]_RX_DV, and MII[x]_RX_ER Timing Figure 6-105 PRU_ICSSG MII[x]_RXD[3:0], MII[x]_RX_DV, and MII[x]_RX_ER Timing
Table 6-134 PRU_ICSSG MII Timing Requirements – MII[x]_TX_CLK see Figure 6-106
NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
PMIT1 tc(TX_CLK) Cycle time, MII[x]_TX_CLK 10Mbps 399.96 400.04 ns
100Mbps 39.996 40.004 ns
PMIT2 tw(TX_CLKH) Pulse Duration, MII[x]_TX_CLK High 10Mbps 140 260 ns
100Mbps 14 26 ns
PMIT3 tw(TX_CLKL) Pulse Duration, MII[x]_TX_CLK Low 10Mbps 140 260 ns
100Mbps 14 26 ns
AM2434 AM2432 AM2431 PRU_ICSSG MII[x]_TX_CLK Timing Figure 6-106 PRU_ICSSG MII[x]_TX_CLK Timing
Table 6-135 PRU_ICSSG MII Switching Characteristics – MII[x]_TXD[3:0] and MII[x]_TX_EN see Figure 6-107
NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
PMIT4 td(TX_CLK-TXD) Delay time, MII[x]_TX_CLK High to MII[x]_TXD[3:0] valid 10 Mbps 0 25 ns
td(TX_CLK-TX_EN) Delay time, MII[x]_TX_CLK to MII[x]_TX_EN valid 0 25 ns
td(TX_CLK-TXD) Delay time, MII[x]_TX_CLK High to MII[x]_TXD[3:0] valid 100 Mbps 0 25 ns
td(TX_CLK-TX_EN) Delay time, MII[x]_TX_CLK to MII[x]_TX_EN valid 0 25 ns

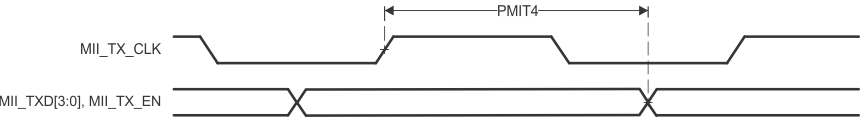

AM2434 AM2432 AM2431 PRU_ICSSG MII[x]_TXD[3:0], MII[x]_TX_EN Timing Figure 6-107 PRU_ICSSG MII[x]_TXD[3:0], MII[x]_TX_EN Timing
