6.11.5.16.2.1 PRU_ICSSG PWM Timing
Table 6-122 PRU_ICSSG PWM Switching Characteristics see Figure 6-99
NO. PARAMETER DESCRIPTION MIN MAX UNIT

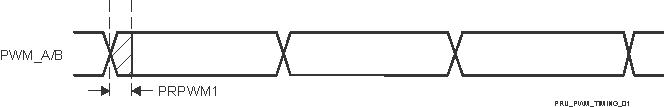

PRPWM1 tsk(PWM_A-PWM_B) Skew, PWM_A to PWM_B 5 ns
AM6442 AM6441 AM6422 AM6421 AM6412 AM6411 PRU_ICSSG PWM Timing Figure 6-99 PRU_ICSSG PWM Timing
