7.12.11.1 DMM Timing Requirements

MINTYPMAXUNIT
tcyc(DMM)Clock period10ns
tRClock rise time13ns
tFClock fall time13ns
th(DMM)High pulse width6ns
tl(DMM)Low pulse width6ns
tssu(DMM)SYNC active to clk falling edge setup time2ns
tsh(DMM)DMM clk falling edge to SYNC deactive hold time3ns
tdsu(DMM)DATA to DMM clk falling edge setup time2ns
tdh(DMM)DMM clk falling edge to DATA hold time3ns

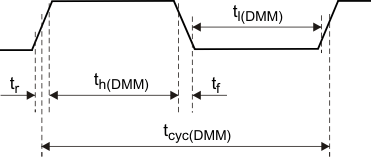

IWR6843 IWR6443 DMMCLK TimingFigure 7-19 DMMCLK Timing

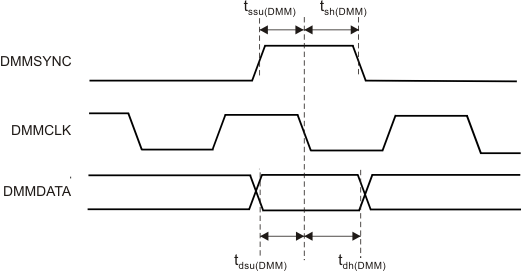

IWR6843 IWR6443 DMMDATA TimingFigure 7-20 DMMDATA Timing
