9.2.3 Application Curves

Unless otherwise specified, the following conditions apply: VIN = 13.5 V, TA = 25°C. The circuit is shown in Figure 9-1, with the appropriate BOM from Table 9-5.

VOUT = 3.3 V fSW = 400 kHz Auto mode
Figure 9-5 LMQ61460 Efficiency

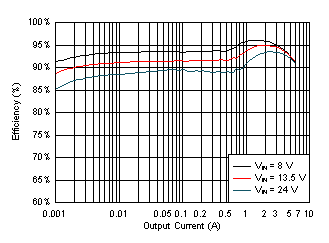

VOUT = 3.3 V fSW = 2100 kHz Auto mode
Figure 9-7 LMQ61460 Efficiency
VOUT = 5 V fSW = 400 kHz Auto mode
Figure 9-9 LMQ61460 Efficiency

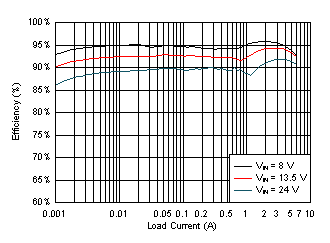

VOUT = 5 V fSW = 2100 kHz Auto mode
Figure 9-11 LMQ61460 Efficiency
VOUT = 3.3 V fSW = 400 kHz Auto mode
Figure 9-13 LMQ61460 Load and Line Regulation
VOUT = 3.3 V fSW = 2100 kHz Auto mode
Figure 9-15 LMQ61460 Load and Line Regulation

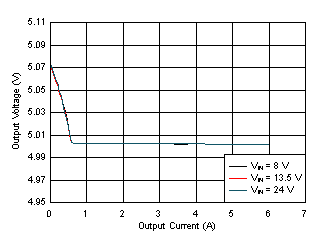

VOUT = 5 V fSW = 400 kHz Auto mode
Figure 9-17 LMQ61460 Load and Line Regulation
VOUT = 5 V fSW = 2100 kHz Auto mode
Figure 9-19 LMQ61460 Load and Line Regulation
VOUT = 3.3 V fSW = 400 kHz Auto mode
Figure 9-21 LMQ61460 Dropout Curve

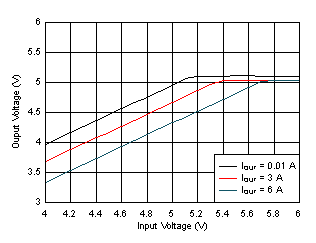

VOUT = 5 V fSW = 400 kHz Auto mode
Figure 9-23 LMQ61460 Dropout Curve
VOUT = 3.3 V fSW = 400 kHz Auto mode
Figure 9-25 LMQ61460 Frequency Dropout Curve
VOUT = 5 V fSW = 400 kHz Auto mode
Figure 9-27 LMQ61460 Frequency Dropout Curve

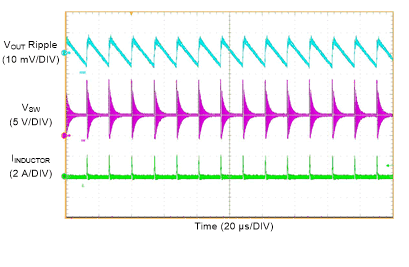

VOUT = 5 V fSW = 2100 kHz Auto mode
IOUT = 50 mA VIN = 13.5 V
Figure 9-29 LMQ61460 Switching Waveform and VOUT Ripple
VOUT = 5 V fSW = 2100 kHz Auto mode
IOUT = 50 mA VIN = 13.5 V
Figure 9-31 LMQ61460 Start-Up with 50-mA Load
VOUT = 3.3 V fSW = 2100 kHz FPWM mode
IOUT = 3.25 A VIN = 13.5 V
Figure 9-33 LMQ61460 Start-Up with 3.25-A Load
VOUT = 5 V fSW = 2100 kHz FPWM mode
IOUT = Short Circuit to 5 A VIN = 13.5 V
Figure 9-35 LMQ61460 Short Circuit Recovery
VOUT = 5 V fSW = 2100 kHz FPWM mode
IOUT = 4 A VIN = 13.5 V to 4 V to 13.5 V
Figure 9-37 LMQ61460 Graceful Recovery from Dropout
VOUT = 5 V fSW = 400 kHz FPWM mode
IOUT = 0 A to 6 A to 0 A VIN = 13.5 V TR = TF = 6 µs
Figure 9-39 LMQ61460 Load Transient
VOUT = 5 V fSW = 400 kHz Auto mode
IOUT = 50 mA to 6 A to 50 mA VIN = 13.5 V TR = TF = 6 µs
Figure 9-41 LMQ61460 Load Transient
VOUT = 3.3 V fSW = 400 kHz Auto mode
IOUT = 2 A to 4 A to 2 A VIN = 13.5 V TR = TF = 2 µs
Figure 9-43 LMQ61460 Load Transient
VOUT = 5 V fSW = 2100 kHz FPWM mode
IOUT = 0 A to 6 A to 0 A VIN = 13.5 V TR = TF = 6 µs
Figure 9-45 LMQ61460 Load Transient
VOUT = 5 V fSW = 400 kHz IOUT = 5 A
Frequency Tested: 30 MHz to 108 MHz
Figure 9-47 Conducted EMI vs CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal)
VOUT = 5 V fSW = 400 kHz IOUT = 5 A
Frequency Tested: 30 MHz to 300 MHz
Figure 9-49 Radiated EMI Bicon Vertical vs CISPR25 Limits
VOUT = 5 V fSW = 400 kHz IOUT = 5 A
Frequency Tested: 300 MHz to 1 GHz
Figure 9-51 Radiated EMI Log Vertical vs CISPR25 Limits




Figure 9-53 Recommended Input EMI Filter
fSW = 2100 kHz VOUT = 5 V IOUT = 5 A
Frequency Tested: 30 MHz to 108 MHz
Figure 9-55 Conducted EMI vs CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal)
VOUT = 5 V fSW = 2.1 MHz IOUT = 4 A
Frequency Tested: 30 kHz to 300 MHz
Figure 9-57 Radiated EMI Bicon Vertical vs CISPR25 Limits
VOUT = 5 V fSW = 2.1 MHz IOUT = 4 A
Frequency Tested: 30 MHz to 1 GHz
Figure 9-59 Radiated EMI Log Vertical vs CISPR25 Limits
fSW = 2100 kHz
Figure 9-61 Recommended Input EMI Filter
VOUT = 3.3 V fSW = 400 kHz FPWM mode
Figure 9-6 LMQ61460 Efficiency
VOUT = 3.3 V fSW = 2100 kHz FPWM mode
Figure 9-8 LMQ61460 Efficiency

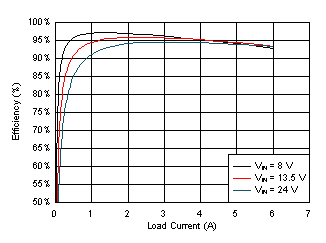

VOUT = 5 V fSW = 400 kHz FPWM mode
Figure 9-10 LMQ61460 Efficiency
VOUT = 5 V fSW = 2100 kHz FPWM mode
Figure 9-12 LMQ61460 Efficiency
VOUT = 3.3 V fSW = 400 kHz FPWM mode
Figure 9-14 LMQ61460 Load and Line Regulation
VOUT = 3.3 V fSW = 2100 kHz FPWM mode
Figure 9-16 LMQ61460 Load and Line Regulation

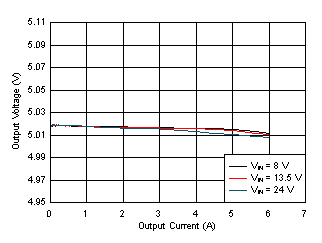

VOUT = 5 V fSW = 400 kHz FPWM mode
Figure 9-18 LMQ61460 Load and Line Regulation
VOUT = 5 V fSW = 2100 kHz FPWM mode
Figure 9-20 LMQ61460 Load and Line Regulation
VOUT = 3.3 V fSW = 2100 kHz Auto mode
Figure 9-22 LMQ61460 Dropout Curve
VOUT = 5 V fSW = 2100 kHz Auto mode
Figure 9-24 LMQ61460 Dropout Curve
VOUT = 3.3 V fSW = 2100 kHz Auto mode
Figure 9-26 LMQ61460 Frequency Dropout Curve
VOUT = 5 V fSW = 2100 kHz Auto mode
Figure 9-28 LMQ61460 Frequency Dropout Curve
VOUT = 5 V fSW = 2100 kHz FPWM mode
IOUT = 50 mA VIN = 13.5 V
Figure 9-30 LMQ61460 Switching Waveform and VOUT Ripple
VOUT = 5 V fSW = 2100 kHz FPWM mode
IOUT = 50 mA VIN = 13.5 V
Figure 9-32 LMQ61460 Start-Up with 50-mA Load
VOUT = 5 V fSW = 2100 kHz FPWM mode
IOUT = 5 A to Short Circuit VIN = 13.5 V
Figure 9-34 LMQ61460 Short Circuit Protection
VOUT = 5 V fSW = 2100 kHz FPWM mode
IOUT = Short Circuit VIN = 13.5 V
Figure 9-36 LMQ61460 Short Circuit Performance
VOUT = 5 V fSW = 400 kHz Auto mode
IOUT = 0 A to 6 A to 0 A VIN = 13.5 V TR = TF = 6 µs
Figure 9-38 LMQ61460 Load Transient

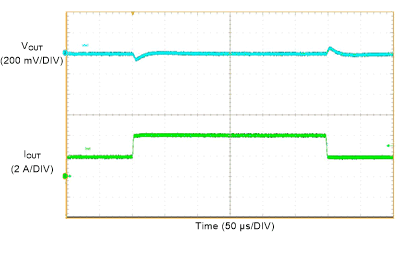

VOUT = 5 V fSW = 400 kHz Auto mode
IOUT = 2 A to 5 A to 2 A VIN = 13.5 V TR = TF = 3 µs
Figure 9-40 LMQ61460 Load Transient
VOUT = 3.3 V fSW = 400 kHz Auto mode
IOUT = 0 A to 6 A to 0 A VIN = 13.5 V TR = TF = 6 µs
Figure 9-42 LMQ61460 Load Transient
VOUT = 5 V fSW = 2100 kHz Auto mode
IOUT = 0 A to 6 A to 0 A VIN = 13.5 V TR = TF = 6 µs
Figure 9-44 LMQ61460 Load Transient
fSW = 400 kHz VOUT = 5 V IOUT = 5 A
Frequency Tested: 150 kHz to 30 MHz
Figure 9-46 Conducted EMI vs CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal)


VOUT = 5 V fSW = 400 kHz IOUT = 5 A
Frequency Tested: 150 kHz to 30 MHz
Figure 9-48 Radiated EMI Rod vs CISPR25 Limits
VOUT = 5 V fSW = 400 kHz IOUT = 5 A
Frequency Tested: 30 MHz to 300 MHz
Figure 9-50 Radiated EMI Bicon Horizontal vs CISPR25 Limits
VOUT = 5 V fSW = 400 kHz IOUT = 5 A
Frequency Tested: 300 MHz to 1 GHz
Figure 9-52 Radiated EMI Log Horizontal vs CISPR25 Limits
fSW = 2100 kHz VOUT = 5 V IOUT = 5 A
Frequency Tested: 150 kHz to 30 MHz
Figure 9-54 Conducted EMI vs CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal)
VOUT = 5 V fSW = 2.1 MHz IOUT = 4 A
Frequency Tested: 150 kHz to 30 MHz
Figure 9-56 Radiated EMI Red vs CISPR25 Limits
VOUT = 5 V fSW = 2.1 MHz IOUT = 4 A
Frequency Tested: 30 MHz to 300 MHz
Figure 9-58 Radiated EMI Bicon Horizontal vs CISPR25 Limits
VOUT = 5 V fSW = 2.1 MHz IOUT = 4 A
Frequency Tested: 300 MHz to 1 GHz
Figure 9-60 Radiated EMI Log Horizontal vs CISPR25 Limits
Table 9-5 BOM for Typical Application Curves
VOUT Frequency RFBB COUT CIN + CHF L CFF
3.3 V 400 kHz 43.2 kΩ 6 × 22 µF 2 × 4.7 µF + 2 × 100 nF 4.7 µH (XHMI6060)
3.3 V 2100 kHz 43.2 kΩ 3 × 22 µF 2 × 4.7 µF + 2 × 100 nF 1.5 µH (MAPI 4020HT) 22 pF
5 V 400 kHz 24.9 kΩ 4 × 22 µF 2 × 4.7 µF + 2 × 100 nF 4.7 µH (XHMI6060)
5 V 2100 kHz 24.9 kΩ 2 × 22 µF 2 × 4.7 µF + 2 × 100 nF 1.5 µH (MAPI 4020HT) 22 pF
