9.14.21 Port PJ (PJ.6 and PJ.7) Input/Output With Schmitt Trigger

Figure 9-23 and Figure 9-24 show the port diagrams. Table 9-44 summarizes the selection of the pin function.

Functional representation only.

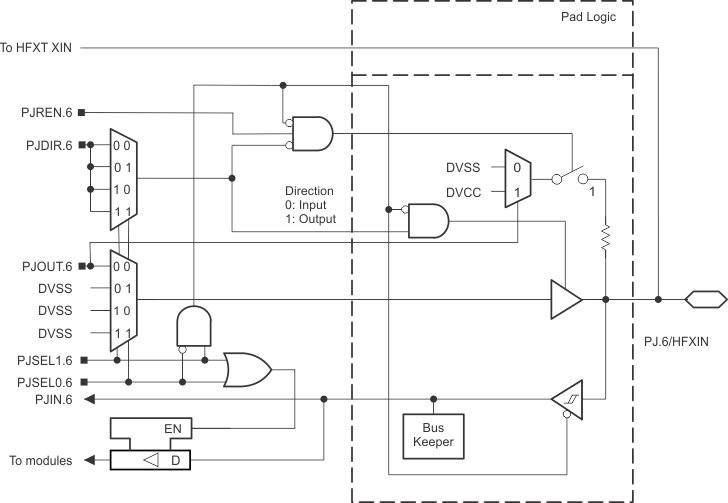

Figure 9-23 Port PJ (PJ.6) Diagram
Functional representation only.

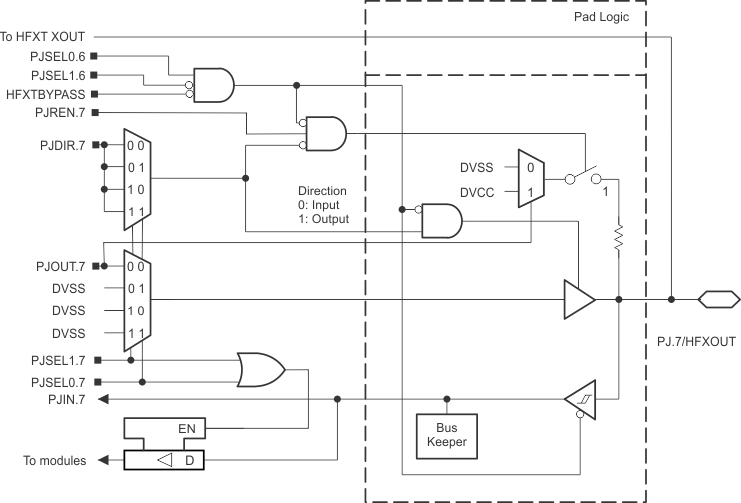

Figure 9-24 Port PJ (PJ.7) Diagram
Table 9-44 Port PJ (PJ.6 and PJ.7) Pin Functions
PIN NAME (PJ.x) x FUNCTION CONTROL BITS AND SIGNALS(1)
PJDIR.x PJSEL1.7 PJSEL0.7 PJSEL1.6 PJSEL0.6 HFXTBYPASS
PJ.6/HFXIN 6 PJ.6 (I/O) I: 0; O: 1 X X 0 0 X
N/A 0 X X 1 X X
Internally tied to DVSS 1
HFXIN crystal mode(3) X X X 0 1 0
HFXIN bypass mode(3) X X X 0 1 1
PJ.7/HFXOUT 7 PJ.7 (I/O)(2) I: 0; O: 1 0 0 0 0 0
1 X
X X 1(4)
N/A 0 see (2) see (2) 0 0 0
1 X
X X 1(4)
Internally tied to DVSS 1 see (2) see (2) 0 0 0
1 X
X X 1(4)
HFXOUT crystal mode(3) X X X 0 1 0
(1) X = Don't care
(2) With PJSEL0.7 = 1 or PJSEL1.7 =1 the general-purpose I/O functionality is disabled. No input function is available. Configured as output the pin is actively pulled to zero.
(3) Setting PJSEL1.6 = 0 and PJSEL0.6 = 1 causes the general-purpose I/O to be disabled. When HFXTBYPASS = 0, PJ.6 and PJ.7 are configured for crystal operation and PJSEL1.6 and PJSEL0.7 are do not care. When HFXTBYPASS = 1, PJ.6 is configured for bypass operation and PJ.7 is configured as general-purpose I/O.
(4) When PJ.6 is configured in bypass mode, PJ.7 is configured as general-purpose I/O.
