Typical Characteristics: OPS Only

at +VCC = 6.0 V, –VCC = –6.0 V, 25-Ω D2S source impedance, VREF = GND, RF = 249 Ω, RG = 162 Ω, OPS AV = 2.5V/V, OPS RLOAD = 100 Ω at pin 11, OPS enabled (DISABLE = GND), external input path selected (PATHSEL = +VCC), and TJ ≈ 25°C (unless otherwise noted)

VOUT = 100 mVPP, see Table 8-1 for RF values vs gain

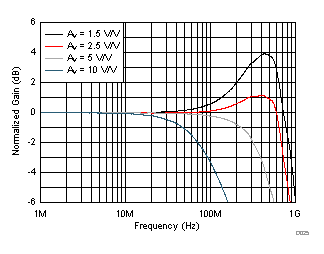

Figure 6-25 Frequency Response vs Noninverting Gain
GUID-DE2BEA3F-806E-4552-B765-12662FF9E198-low.gifFigure 6-27 Noninverting Response vs Output Voltage
GUID-51A1DC63-50F6-46AD-A533-EE45F0506785-low.gifFigure 6-29 Noninverting Step Response

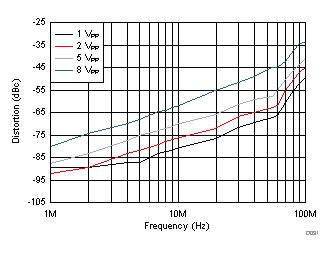

GUID-F2597524-FCCF-48A9-9EEF-8D06D9686500-low.gifFigure 6-31 HD2 vs Output Voltage
VOUT = 5 VPP
Figure 6-33 HD2 vs Load Resistance
VOUT = 5 VPP
Figure 6-35 HD2 vs Supply Voltage
±100-kHz tone separation, output voltage for each tone

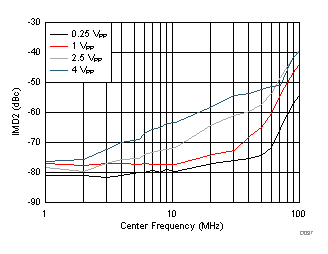

Figure 6-37 Second-Order Intermodulation Distortion vs Output Voltage
GUID-479D7651-3602-493F-89C8-BC5966EDF00C-low.gifFigure 6-39 Input-Referred Spot Noise vs Frequency
30 units shown
Figure 6-41 Quiescent Supply Current vs Temperature
See Table 8-6 for RF values vs OPS gain

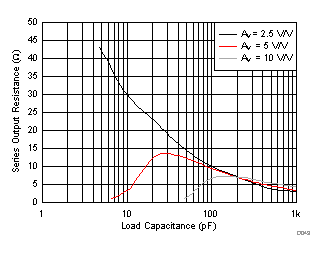

Figure 6-43 Series Output Resistance vs Load Capacitance
±VCC = ±7.5 V, RF = 158 Ω, AV = 5 V/V, VOUT = 10 VPP, see Figure 6-43 for RS value

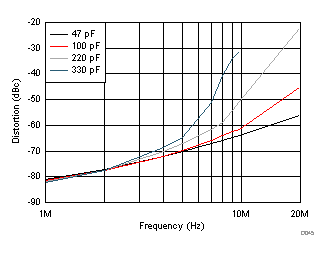

Figure 6-45 HD2 vs Load Capacitance
±VCC = ±7.5 V, CLOAD = 100 pF, RF = 158 Ω, AV = 5 V/V, see Figure 6-43 for RS value
Figure 6-47 Pulse Response
VOUT = 100 mVPP, see Table 8-3 for RF values vs gain
Figure 6-26 Frequency Response vs Inverting Gain
AV = –2.5 V/V, see Table 8-3 for RF value
Figure 6-28 Inverting Response vs Output Voltage
AV = –2.5 V/V, see Table 8-3 for RF value
Figure 6-30 Inverting Step Response
GUID-3AF02026-7E28-4637-817A-97C9463C0F9D-low.gifFigure 6-32 HD3 vs Output Voltage
VOUT = 5 VPP
Figure 6-34 HD3 vs Load Resistance
VOUT = 5 VPP
Figure 6-36 HD3 vs Supply Voltage
±100-kHz tone separation, output voltage for each tone

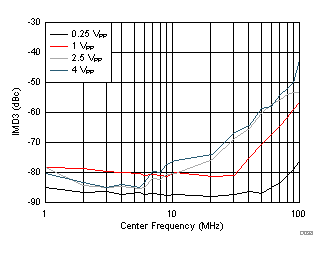

Figure 6-38 Third-Order Intermodulation Distortion vs Output Voltage
Output swing with better than 0.1% linearity
Figure 6-40 Linear Output Swing vs Load Resistance
±4.5-V input triangular wave, OPS AV = –2.5 V/V
Figure 6-42 Output Overdrive Response
VOUT = 500 mVPP, see Figure 6-43 for RS value
Figure 6-44 Frequency Response vs Load Capacitance
±VCC = ±7.5 V, RF = 158 Ω, AV = 5 V/V, VOUT = 10 VPP, see Figure 6-43 for RS value

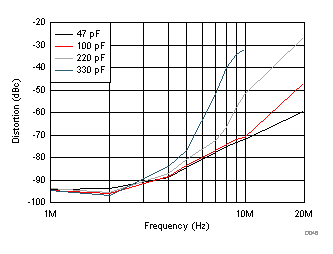

Figure 6-46 HD3 vs Load Capacitance
±VCC = ±7.5 V, CLOAD = 150 pF, RF = 158 Ω, AV = 5 V/V, see Figure 6-43 for RS value.
Figure 6-48 Pulse Response
