6.10 Typical Characteristics: D2S Only

at +VCC = 6.0 V, –VCC = –6.0 V, fixed gain of 2 V/V, 25-Ω D2S source impedance, VIC = 0.25 V, external path selected (PATHSEL = +VCC), VREF = GND, D2S RLOAD = 100 Ω at pin 6, and TJ ≈ 25°C (unless otherwise noted)

VOUT = 250 mVPP

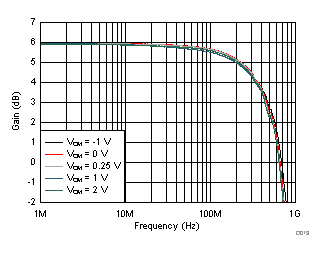

Figure 6-13 Frequency Response vs Input Common-Mode Voltage

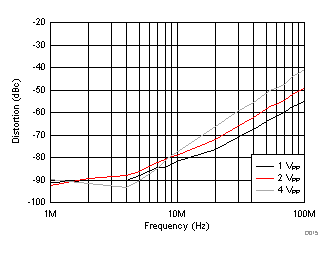

GUID-4D03A08D-99DB-42B6-83E8-003E61DEA571-low.gifFigure 6-15 HD2 vs Output Voltage

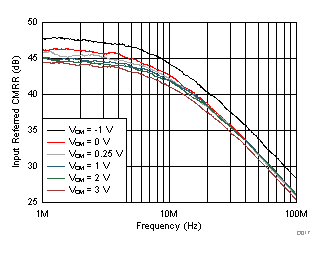

GUID-85E263EB-0E4E-49D1-B19F-3DAC475CDA19-low.gifFigure 6-17 Common-Mode Rejection Ratio vs Input Common-Mode Voltage
30 units shown

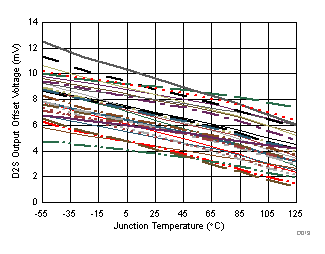

Figure 6-19 Output DC Offset Voltage vs Die Temperature
±1-V output pulse

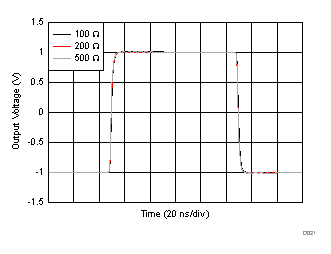

Figure 6-21 Large-Signal Step Response vs Load Resistance
25-Ω D2S source impedance on each input
Figure 6-23 VREF Input Pin Frequency Response
VOUT = 2 VPP
Figure 6-14 Frequency Response vs Load Resistance
GUID-64857F08-1188-47A9-B0BA-167D8BDA5BF7-low.gifFigure 6-16 HD3 vs Output Voltage

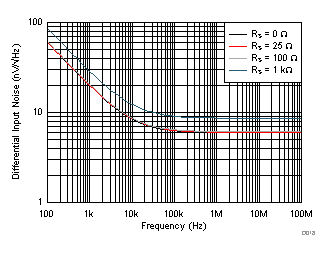

GUID-2A2875FC-581C-4EA3-8B1F-6E02CEC5CDBD-low.gifFigure 6-18 Differential Input Noise vs Source Impedance

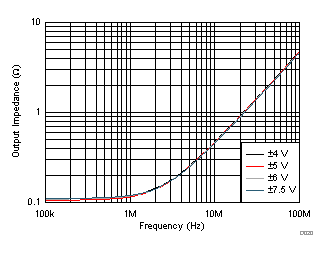

GUID-CBC91B0B-8674-465C-89B8-9ACD3182ED8C-low.gifFigure 6-20 Output Impedance vs Supply Voltage
±1-V output pulse

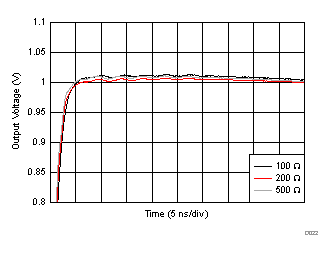

Figure 6-22 Large-Signal Pulse Settling Response vs Load Resistance

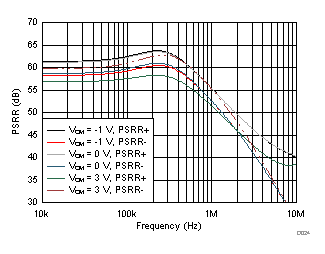

GUID-1969F401-B584-45A2-B5EA-29B50D95344E-low.gifFigure 6-24 Simulated Power-Supply Rejection Ratio vs Input Common-Mode Voltage
