7.3.1 Undervoltage Protection

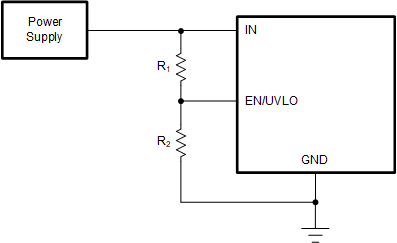

The TPS1685x implements Undervoltage Lockout on VDD & VIN in case the applied voltage becomes too low for the system or device to properly operate. The Undervoltage lockout has a default lockout threshold of VUVP internally on VDD and VUVPIN on VIN. Also, the UVLO comparator on the EN/UVLO pin allows the Undervoltage Protection threshold to be externally adjusted to a user defined value. The figure and equation below shows how a resistor divider can be used to set the UVLO set point for a given voltage supply.

TPS1685 Adjustable Undervoltage ProtectionFigure 7-1 Adjustable Undervoltage Protection
Equation 1. V I N U V = V U V L O R R 1 + R 2 R 2

The EN/UVLO pin implements a bi-level threshold.

  1. VEN > VUVLO(R): Device is fully ON.
  2. VSD(F) < VEN < VUVLO(F): The FET along with most of the controller circuitry is turned OFF, except for some critical bias and digital circuitry. Holding the EN/UVLO pin in this state for > tQOD activates the Output Discharge function.
  3. VEN < VSD(F): All active circuitry inside the part is turned OFF and et circuitry retains no digital state memory. The circuitry also resets any latched faults. In this condition, the device quiescent current consumption is minimal.
