7.27 Typical Characteristics

(TA = –40°C to +105°C)

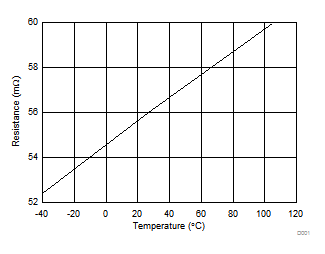

GUID-16D72DF8-C90D-4871-9D9D-53107C7A910B-low.gifFigure 7-1 PP_5V0 Switch On-Resistance vs Temperature

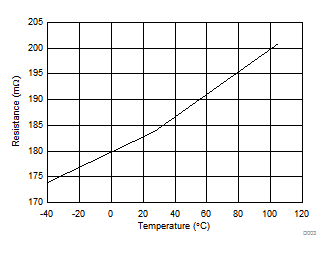

GUID-55EB4E92-BA00-49D4-B2BC-DCB81E1340CC-low.gifFigure 7-3 PP_CABLE Switch On-Resistance vs Temperature

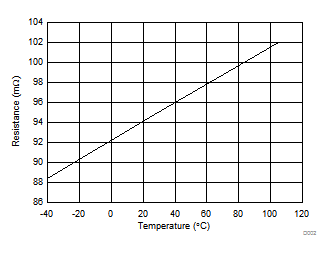

GUID-B5E664ED-28A3-4A5E-8BD0-25D1A334A1F2-low.gifFigure 7-2 PP_HV Switch On-Resistance vs Temperature
