6.3.7 VSENSE and VINAC Open-Circuit Protection

Both the VSENSE and VINAC pins have been designed with an internal 250nA current sink to ensure that in the event of an open circuit at either pin, the voltage is not left undefined, and the UCC28070-Q1 remains in a safe operating mode.

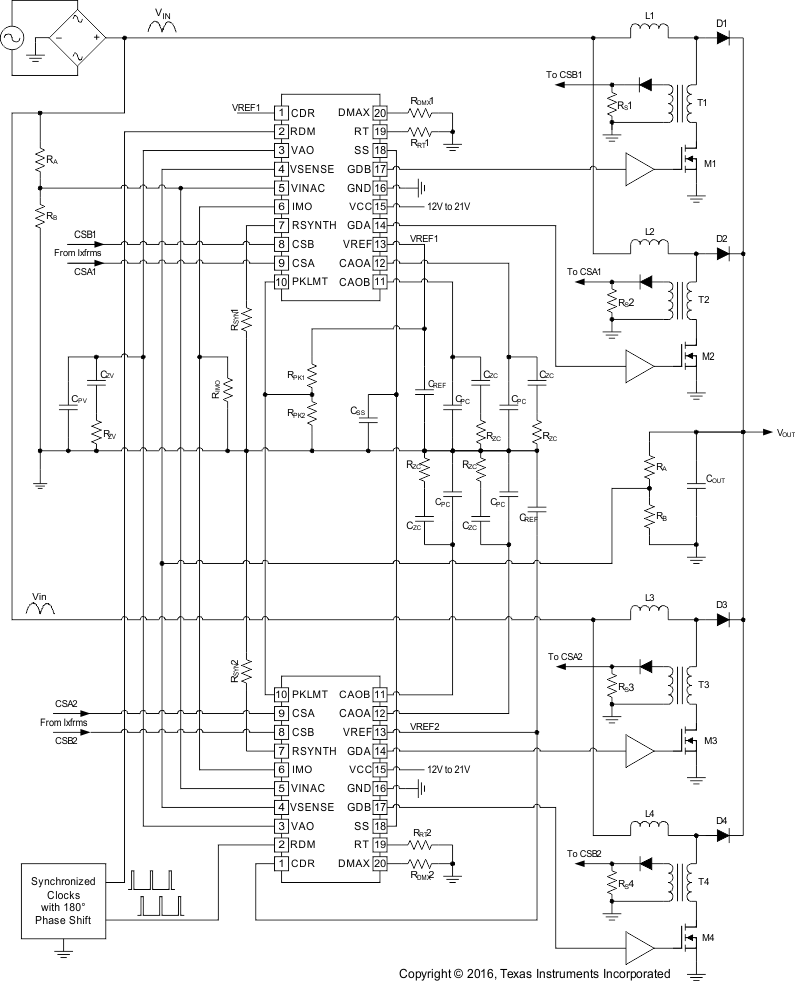

UCC28070-Q1 Simplified Four-Phase Application Diagram Using Two UCC28070-Q1 Devices Figure 6-1 Simplified Four-Phase Application Diagram Using Two UCC28070-Q1 Devices
