7.2.3 Application Curves

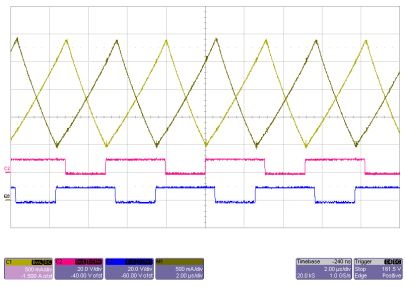

UCC28070-Q1 Typical Inductor Currents
Ch1: Inductor current (IA)Ch3: GDBCh2: GDA
M1: Inductor Current (IB)
Figure 7-6 Typical Inductor Currents
UCC28070-Q1 Typical Inductor and Input Ripple Currents
Ch1: Inductor current (IA)M4: Input current (IA + IB)
Figure 7-8 Typical Inductor and Input Ripple Currents

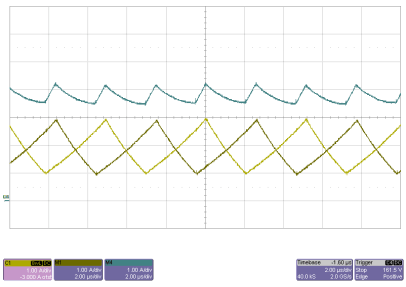

UCC28070-Q1 Typical Inductor and Input Ripple Currents
Ch1: Inductor current (IA)M1: Inductor current (IB)
M4: Input current (IA + IB)
Figure 7-7 Typical Inductor and Input Ripple Currents
UCC28070-Q1 Typical Input Current
Ch1: Input current120VACPF = 0.98
Figure 7-9 Typical Input Current
