2.1.4.4 Emulator Connector (TSW-106-16-G-D) and DAC Connector (TSW-102-16-G-D)

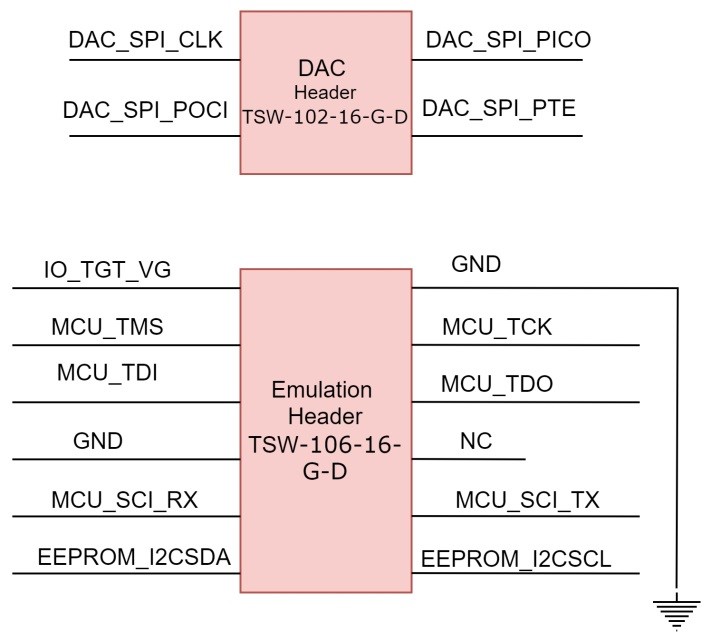

HSEC180ADAPEVM Isolated Signal from XDS110 Board Mating Connector Figure 2-8 Isolated Signal from XDS110 Board Mating Connector

Find Table 2-3 and Table 2-4 for the connector pins details with the interfaced signal names.

Table 2-3 4 Pin DAC Connector
Pin No Signal Pin No Signal
1 DAC_SPI_CLK 2 DAC_SPI_PICO
3 DAC_SPI_POCI 4 DAC_SPI_PTE
Table 2-4 12 Pin Emulator Connector
Pin No Signal Pin No Signal
1 IO_TGT_V 2 GND
3 MCU_TMS 4 MCU_TCK
5 MCU_TDI 6 MCU_TDO
7 GND 8 NC
9 MCU_SCI_RX 10 MCU_SCI_TX
11 EEPROM_I2CSDA 12 EEPROM_I2CSCL
