8.2.4 Application Curves

Unless otherwise specified: VIN = 3.3 V, VOUT_BUCK = 1 V, VOUT_BOOST = 5 V, TA = 25°C, ƒSW-setting 4 MHz, L0 = L1 = 0.47 µH (TOKO DFE252012PD-R47M), L2 = 1 µH (TFM252012ALMA1R0), COUT_BUCK, CPOL_BUCK, and COUT_BOOST = 22 µF. Measurements are done using connections in Figure 8-1.
Unless otherwise specified: VIN = 3.3 V, VOUT_BUCK = 1 V, VOUT_BOOST = 5 V, TA = 25°C, ƒSW-setting 4 MHz, L0 = L1 = 0.47 µH (TOKO DFE252012PD-R47M), L2 = 1 µH (TFM252012ALMA1R0), COUT_BUCK, CPOL_BUCK, and COUT_BOOST = 22 µF. Measurements are done using connections in Figure 8-1.GUID-1AF75F3E-5492-493A-8E80-3EADDEB63373-low.gif
Figure 8-3 Buck Efficiency in AUTO (PFM/PWM) Mode. Unless otherwise specified: VIN = 3.3 V, VOUT_BUCK = 1 V, VOUT_BOOST = 5 V, TA = 25°C, ƒSW-setting 4 MHz, L0 = L1 = 0.47 µH (TOKO DFE252012PD-R47M), L2 = 1 µH (TFM252012ALMA1R0), COUT_BUCK, CPOL_BUCK, and COUT_BOOST = 22 µF. Measurements are done using connections in Figure 8-1.
VIN = 5 V
Figure 8-5 Buck Efficiency in Forced PWM Mode
VOUT = 1 V
Figure 8-7 Buck Output Voltage vs Load Current in AUTO Mode

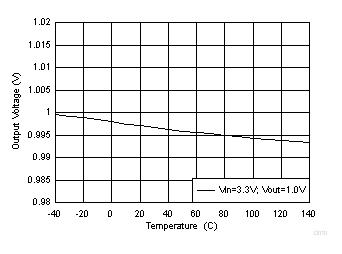

Figure 8-9 Buck Output Voltage vs Temperature
RLOAD = 1 Ω
Figure 8-11 Buck Start-up with EN1, Forced-PWM
VOUT = 1.2 VIOUT = 500 mA
Figure 8-13 Buck Output Voltage Ripple, Forced-PWM Mode
VOUT = 1.2 V
Figure 8-15 Buck Transient from PFM-to-PWM Mode
IOUT = 0 A → 3 A → 0 ATR = TF = 1 µsVOUT = 1 V
Figure 8-17 Buck Transient Load Step Response, Forced-PWM Mode
IOUT = 0 A → 3 A → 0 ATR = TF = 1 µsVOUT = 1 V
Figure 8-19 Buck Transient Load Step Response, Auto Mode

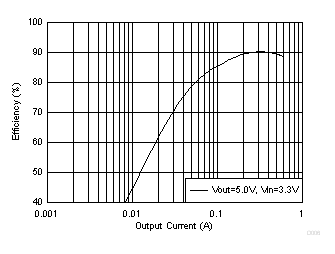

Figure 8-21 Boost Efficiency
IOUT = 0.1 A

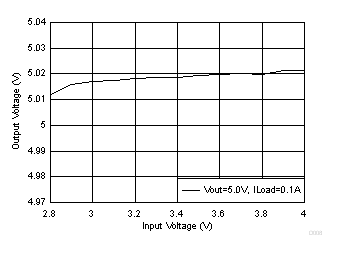

Figure 8-23 Boost Output Voltage vs Input Voltage
RLOAD = 50 Ω

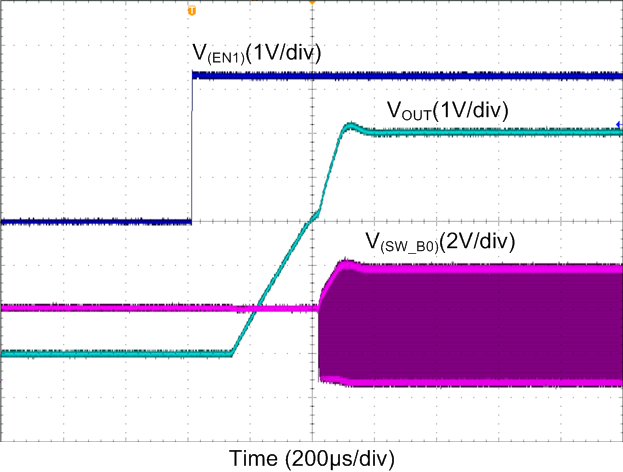

Figure 8-25 Boost Start-up With EN1, Forced-PWM
IOUT = 0.1 A
Figure 8-27 Boost Output Voltage Ripple
VIN = 3.3 V

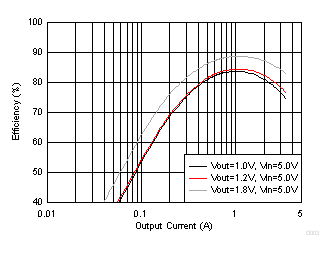

Figure 8-4 Buck Efficiency in Forced PWM Mode
VOUT = 1 V
Figure 8-6 Buck Output Voltage vs Load Current in Forced PWM Mode

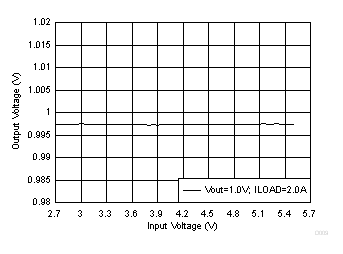

Figure 8-8 Buck Output Voltage vs Input Voltage in PWM Mode
IOUT = 0 A
Figure 8-10 Buck Start-up with EN1, Forced-PWM
RLOAD = 1 Ω
Figure 8-12 Buck Shutdown with EN1, Forced-PWM
VOUT = 1.2 VIOUT = 10 mA
Figure 8-14 Buck Output Voltage Ripple, PFM Mode
VOUT = 1.2 V
Figure 8-16 Buck Transient from PWM-to-PFM Mode
IOUT = 0 A → 3 A → 0 ATR = TF = 1 µsVOUT = 1.2 V
Figure 8-18 Buck Transient Load Step Response, Forced-PWM Mode
VOUT = 1.2 V
Figure 8-20 Buck Transient Load Step Response, Auto Mode
Figure 8-22 Boost Output Voltage vs Load Current
IOUT = 0 A
Figure 8-24 Boost Start-up With EN1, Forced-PWM
RLOAD = 50 Ω
Figure 8-26 Boost Shutdown With EN1, Forced-PWM
IOUT = 0 A → 0.25 A → 0 ATR = TF = 1 µs
Figure 8-28 Boost Transient Load Step Response
