6.7 Typical Characteristics: REF50xxI, REF50xxAI

At TA = 25°C, ILOAD = 0, and VS = VOUT + 0.2V, unless otherwise noted. For VOUT ≤ 2.5V, the minimum supply voltage is 2.7 V.

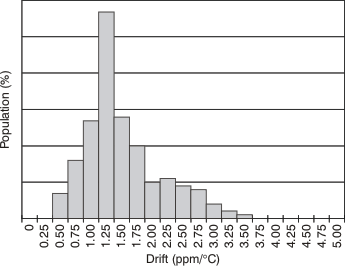

REF50 REF50E Temperature Drift
0°C to 85°C
Figure 6-1 Temperature Drift
REF50 REF50E Output Voltage Initial Accuracy
Figure 6-3 Output Voltage Initial Accuracy
REF50 REF50E Power-Supply Rejection Ratio vs Frequency
Figure 6-5 Power-Supply Rejection Ratio vs Frequency
REF50 REF50E REF5025 Output Voltage vs Load Current
Figure 6-7 REF5025 Output Voltage vs Load Current
REF50 REF50E Quiescent Current vs Temperature
Figure 6-9 Quiescent Current vs Temperature
REF50 REF50E Line Regulation vs Temperature
Figure 6-11 Line Regulation vs Temperature

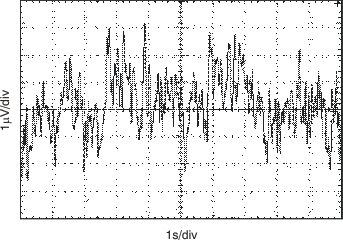

REF50 REF50E 0.1Hz to 10Hz Noise
Figure 6-13 0.1Hz to 10Hz Noise

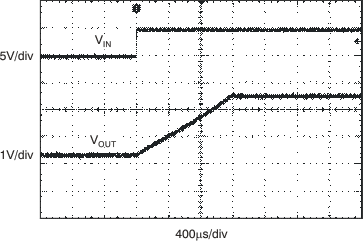

REF50 REF50E Start-Up
REF5025, CL = 1μF
Figure 6-15 Start-Up
REF50 REF50E Load Transient
CL = 1μF, IOUT = 1mA
Figure 6-17 Load Transient
REF50 REF50E Load Transient
CL = 10μF, IOUT = 1mA
Figure 6-19 Load Transient
REF50 REF50E Line Transient
CL = 1μF
Figure 6-21 Line Transient

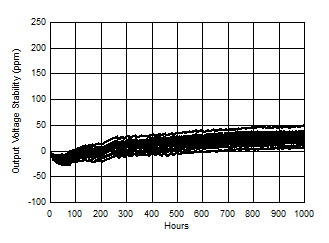

REF50 REF50E REF50xx Long-Term Stability (First 1000 Hours)
VSSOP-8
Figure 6-23 REF50xx Long-Term Stability (First 1000 Hours)

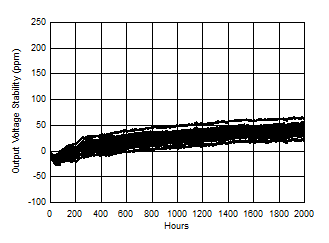

REF50 REF50E REF50xx Long-Term Stability (First 2000 Hours)
VSSOP-8
Figure 6-25 REF50xx Long-Term Stability (First 2000 Hours)

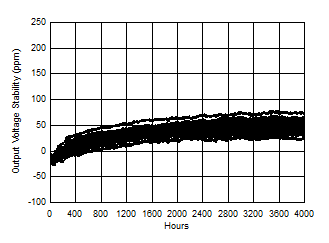

REF50 REF50E REF50xx Long-Term Stability (4000 Hours)
VSSOP-8
Figure 6-27 REF50xx Long-Term Stability (4000 Hours)
REF50 REF50E REF50xx Long-Term Stability (Second 1000 Hours)
SOIC-8
Figure 6-29 REF50xx Long-Term Stability (Second 1000 Hours)
REF50 REF50E Temperature Drift
–40°C to 125°C
Figure 6-2 Temperature Drift
REF50 REF50E Output Voltage Accuracy vs Temperature
Figure 6-4 Output Voltage Accuracy vs Temperature

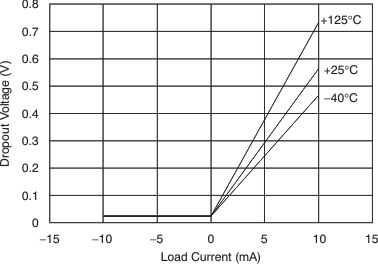

REF50 REF50E Dropout Voltage vs Load Current
Figure 6-6 Dropout Voltage vs Load Current
REF50 REF50E Temp Pin Output Voltage vs Temperature
Figure 6-8 Temp Pin Output Voltage vs Temperature
REF50 REF50E Quiescent Current vs Input Voltage
Figure 6-10 Quiescent Current vs Input Voltage

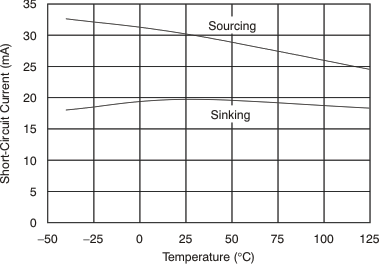

REF50 REF50E Short Circuit Current vs Temperature
Figure 6-12 Short Circuit Current vs Temperature
REF50 REF50E Noise Spectral Density
Figure 6-14 Noise Spectral Density
REF50 REF50E Start-Up
REF5025, CL = 10μF
Figure 6-16 Start-Up
REF50 REF50E Load Transient
CL = 1μF, IOUT = 10mA
Figure 6-18 Load Transient
REF50 REF50E Load Transient
CL = 10μF, IOUT = 10mA
Figure 6-20 Load Transient
REF50 REF50E Line Transient
CL = 10μF
Figure 6-22 Line Transient

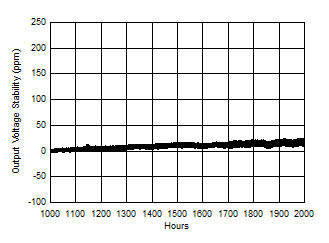

REF50 REF50E REF50xx Long-Term Stability (Second 1000 Hours)
VSSOP-8
Figure 6-24 REF50xx Long-Term Stability (Second 1000 Hours)

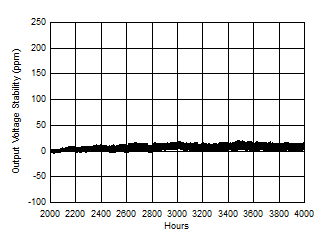

REF50 REF50E REF50xx Long-Term Stability (Second 2000 Hours)
VSSOP-8
Figure 6-26 REF50xx Long-Term Stability (Second 2000 Hours)
REF50 REF50E REF50xx Long-Term Stability (First 1000 Hours)
SOIC-8
Figure 6-28 REF50xx Long-Term Stability (First 1000 Hours)
REF50 REF50E REF50xx Long-Term Stability (2000 Hours)
SOIC-8
Figure 6-30 REF50xx Long-Term Stability (2000 Hours)
